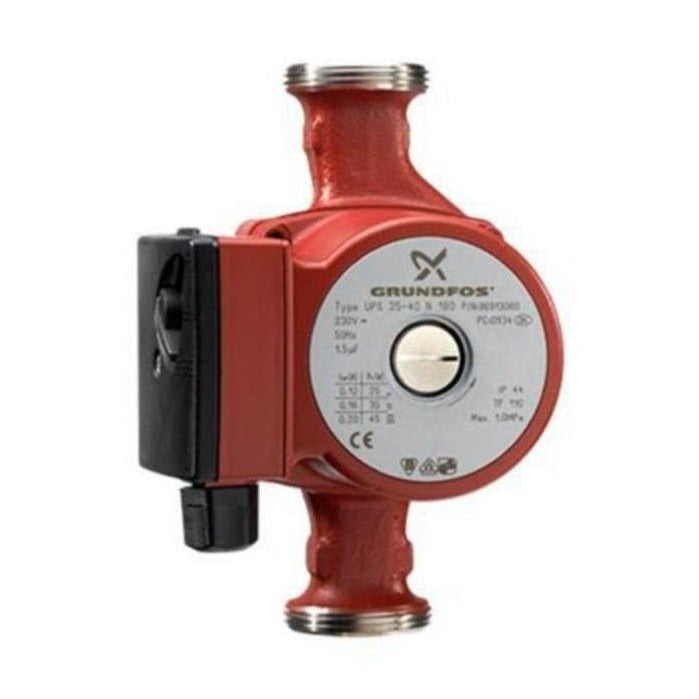

Grundfos Circulation pump domestic water UPS 25-60 N 180 1x230V [4615616]

€718,00 EUR

Brand: Grundfos
Product number: LVI- 4615616
Delivery time: approx. 5-10 business days.
Shipping €9.90 or
Free pickup, no hidden costs.

More information:

Grundfos UP and UPS pumps are circulator pumps for hot water. The pumps are single-phase glandless pumps. The pump housing is made of stainless steel. UP pumps operate at one constant speed and UPS pumps have three different speeds for speed control.

Product number: 4615616

Supplier product number: 96913085

EAN code: 5700313543465

Material class P4624B

Specifications

Brand: Grundfos

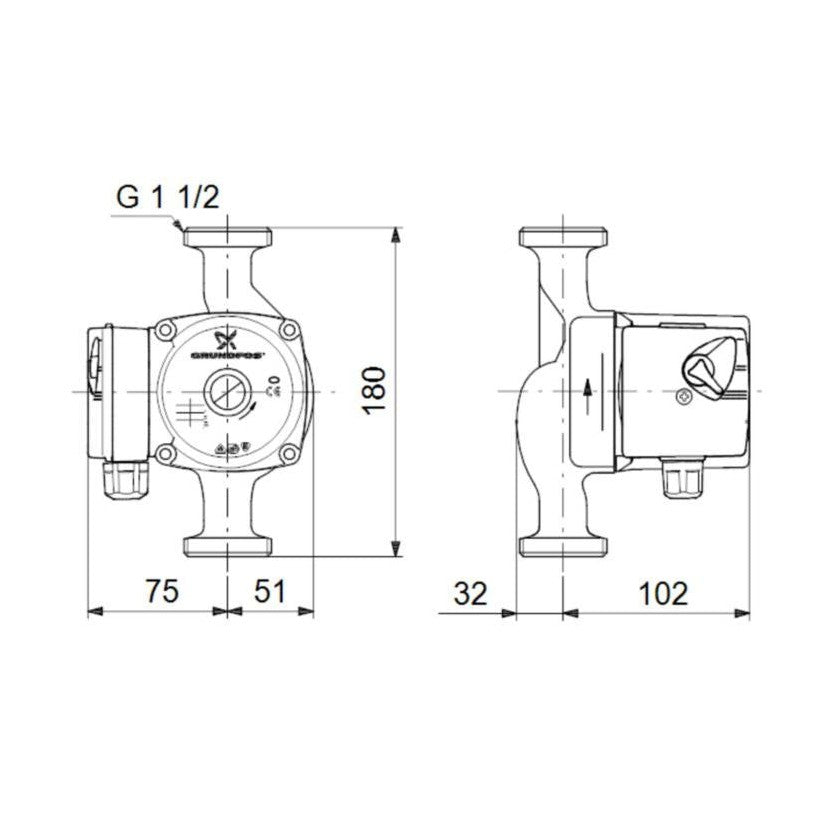

Immersion length: 180
Nominal diameter of inlet side: 1.1/2" (40)
Nominal diameter of the outlet side: 1.1/2" (40)
Insulation class according to IEC: F
Protection class (IP): IP44
Frequency: 50Hz
Motor speed control: none
Motor input power (P1): 0.06
Rated current: 0.28

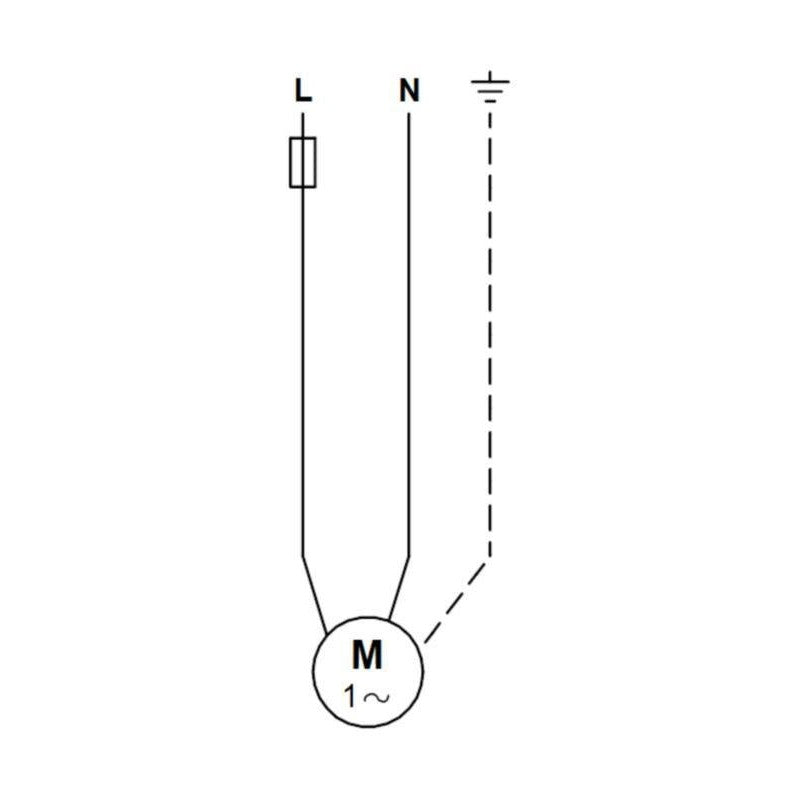

Electrical connection: connectors
Dual pump: no
Inlet connection: cylindrical external pipe thread
Outlet connection: cylindrical external pipe thread
Impeller material quality: other
Impeller material: other
Input standard: ISO 228-1
Output side standard: ISO 228-1
Number of stages: 1
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: no
Interface signal 0-20 mA / 4-20 mA: no
Communication: none
Pump shell material: stainless steel
Pump housing material quality: stainless steel 304 (1.4308)
Maximum operating pressure: 10
Static maximum height: 6
RS-232 interface: no
RS-485 interface: no
Volumetric flow (BEP): 1.91
Potential-free main switch: no
Radio standard 2G / 3G / 4G: no
Radio standard 5G: no
Bluetooth standard: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: no
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: no
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: no
Supports Modbus RTU protocol: no
Supports Modbus TCP protocol: no
Supports PROFIBUS protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 30.39
Inlet flange pressure class: PN 10
Outlet flange pressure class: PN 10
