Water dispenser Grundfos Scala1 5-55 99530407 [4732546]

€598,50 EUR

Brand: Grundfos
Product number: LVI- 4732546
Delivery time: approx. 1-5 business days.
Shipping €9.90
Free pickup, no hidden costs

More information:

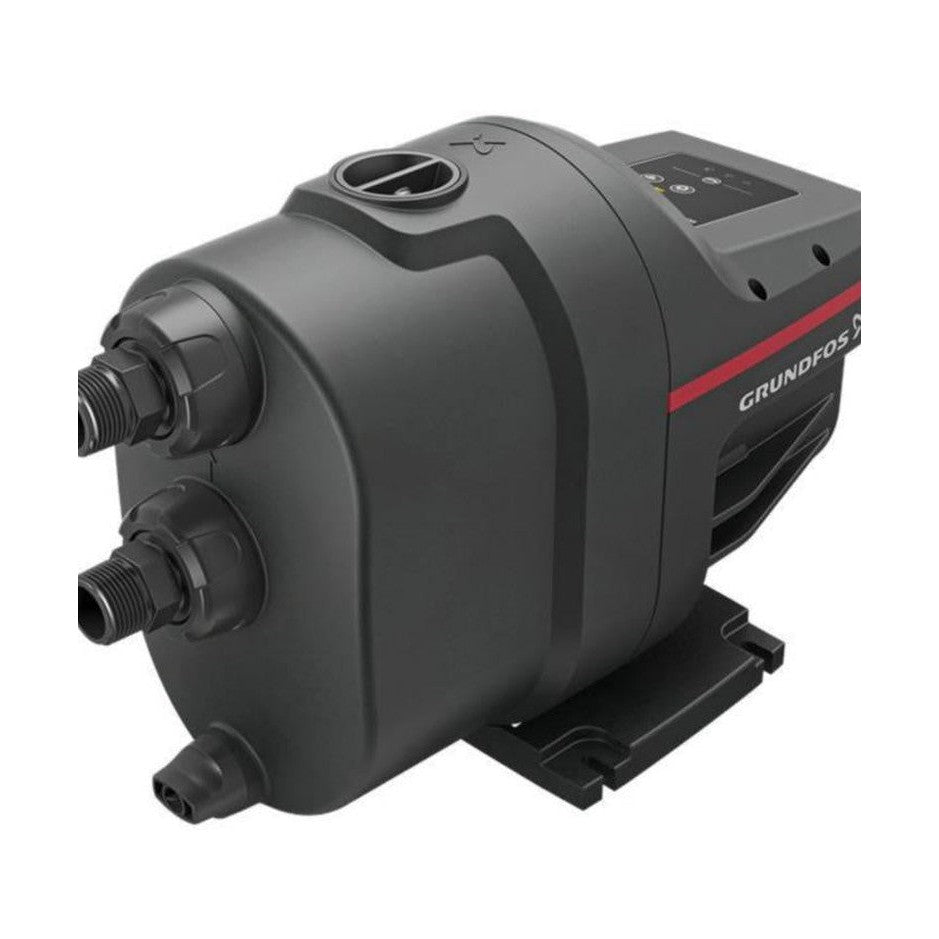

Grundfos SCALA1 is a self-priming, multi-stage pump that has all the elements of a booster pump in a compact composite structure.
SCALA1 is a self-priming water pump. The pump is filled with seed water, allowing it to draw water from depths of up to 8 meters. The pump is easy to install and start. It is an ideal and reliable choice for installations where there is a risk of dry running or leakage in the suction pipe.
Bluetooth connectivity enables full remote control of the SCALA1 pump with the Grundfos GO REMOTE app, making the pump very versatile and suitable for a wide range of installations.

Product number

4732546
Supplier product number:

99530407
EAN code:

5713830592410
Material class

P47100

Specifications

Package sizes: 1 PCS/21 PCS
Number of pumps: 1
Width : 202mm
Height : 316mm
Insulation class according to IEC: F
Suitable for tap water: yes
Length: 466
Motor speed control: none
Suction installation: yes
Rated current: 5.38
Volumetric flow (BEP): 5.33
Rotation speed: 2850
Suitable for sprinkler/irrigation: yes
Pump shell material: other
With bypass pipe: no
Pump shell material quality: other
Inlet connection: conical external pipe thread
Outlet connection: conical external pipe thread
Nominal inlet diameter: 1" (25)
Nominal diameter of the outlet side: 1" (25)
Input standard: ISO 228-1
Output side standard: ISO 228-1
Number of stages: 1
Motor power (P2): 0.78
Electrical connection: connection cable with plug
Frequency: 50Hz
Motor input power (P1): 1.2
Interface PT100 / PT1000 / PTC: yes
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: yes
Interface signal 0-20 mA / 4-20 mA: yes
Communication: built-in and pre-installed
Suitable for rainwater: yes
Cable length: 1.5
Tank material: other
Impeller material: polypropylene
Tank material quality: other
Impeller material quality: other
Maximum operating pressure: 8
Outflow (maximum): 7.8
Static maximum height: 55
RS-232 interface: no
RS-485 interface: yes
Potential-free main switch: yes
Pump protection level (IP): IPX4
Radio standard 5G: no
WLAN 802.11 standard: no
Cabinet IP class: other
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: no
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: no
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: no
Supports Modbus RTU protocol: no
Supports Modbus TCP protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 245.1
Bluetooth standard: no
Radio standard 2G / 3G / 4G: no
Supports PROFIBUS protocol: no
