Circulation pump 97916771 Grundfos UP 15-14 B 80 1-phase [4615601]

€253,69 EUR

Brand: Grundfos
Product number: LVI- 4615601
Delivery time: approx. 1-5 business days.
Shipping €9.90
Free pickup, no hidden costs.

More information:

More information: LINK

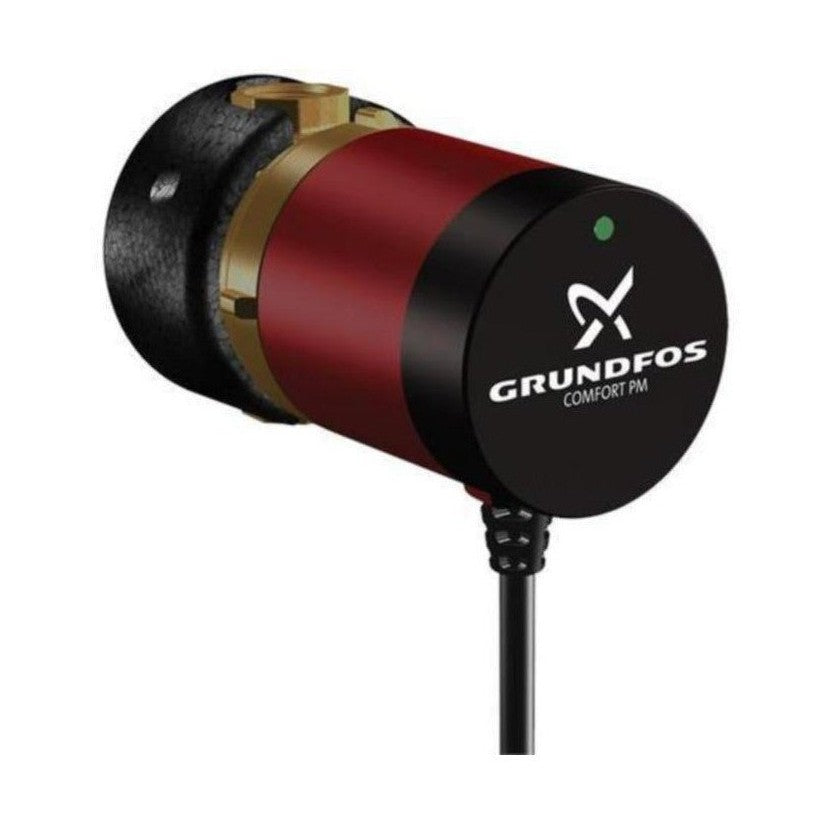

Grundfos COMFORT UP 15-14 B PM is an energy-efficient circulation pump for small domestic hot water systems. It is suitable for pressurized domestic hot water systems in single-family homes. The pump is equipped with a 1.5 meter cable and plug.

Product benefits:
- Energy consumption only 8W.
- The materials are approved for drinking water use.
- The motor can be removed from the pump housing for easier maintenance.

Product number: 4615601

Supplier product number: 97916771

EAN code: 5710626363766

Material class P46220

Specifications

Brand: Grundfos
Immersion length: 80
Nominal diameter of the inlet side: other
Nominal diameter of the outlet side: other
Insulation class according to IEC: F
Protection class (IP): IP44
Frequency: 50/60 Hz
Motor speed control: none
Motor input power (P1): 0.007
Rated current: 0.07
Electrical connection: connection cable with plug
Dual pump: no
Inlet connection: cylindrical internal pipe thread
Outlet connection: cylindrical internal pipe thread
Impeller material quality: other
Impeller material: other
Input standard: ISO 228-1
Output side standard: ISO 228-1
Number of stages: 1
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: no
Interface signal 0-20 mA / 4-20 mA: no
Communication: none
Pump shell material: brass
Pump shell material quality: other
Maximum operating pressure: 10
Static maximum height: 1.4
RS-232 interface: no
RS-485 interface: no
Medium temperature (continuous): 2
Volumetric flow (BEP): 0.41
Potential-free main switch: no
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: no
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: no
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: no
Supports Modbus RTU protocol: no
Supports Modbus TCP protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 8.82
Inlet flange pressure class: PN 10
Outlet flange pressure class: PN 10
