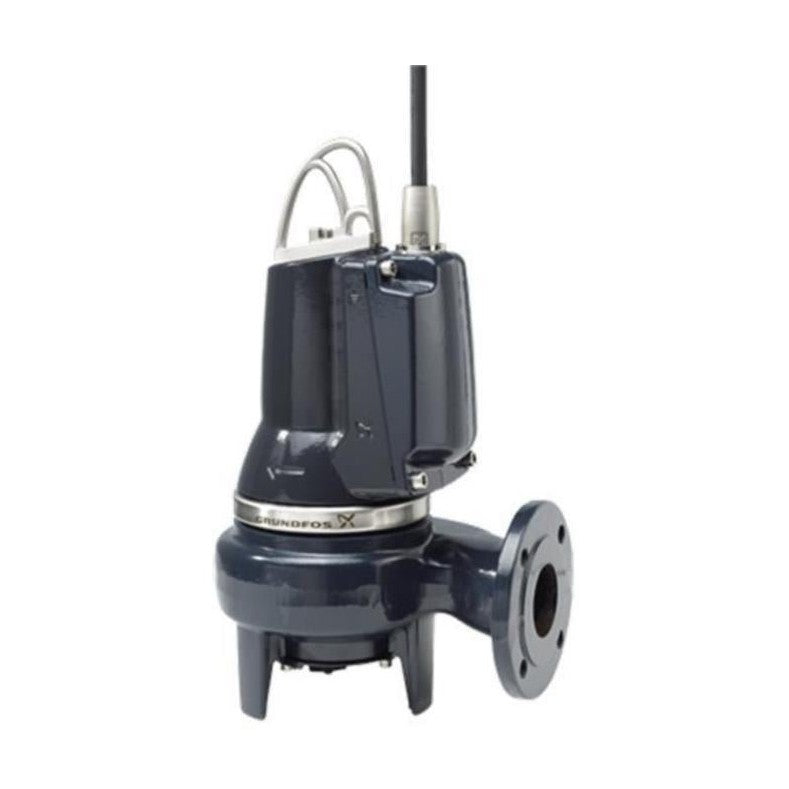

Grundfos Wastewater Pump Sl1.50.65.09.E.2.50B [4836161]

€2.349,00 EUR

Brand: Grundfos
Product number: 4836161
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

Single-stage centrifugal pump with normal suction suitable for the treatment of wastewater, process water and untreated sewage. The pump is designed for intermittent and continuous operation in submerged installations. The unique S-tube® impeller has a free passage of solids up to 80 mm. It is suitable for pumping wastewater with a maximum solids content of 3%. The unique stainless steel clamp system makes it easy and quick to remove the pump from the motor unit for maintenance and inspection. No special tools are required. The pipe connections are connected with a DIN flange.

Product number

4836161
Supplier product number:

96878451
EAN code:

5700312550297
Material class

P4910B

Specifications

Insulation class according to IEC: F
Rated current: 2.8 A
Pump height: 544 mm
Pumping circuit: none
Rotational speed: 2920 rpm
Maximum diameter of mounting parts: 50 mm
Electrical connection: cabling
Pump diameter: 242 mm
Output side connection: flange
Nominal diameter of the outlet side: DN 65
Outlet standard: EN 1092-2
Number of stages: 3
Motor power (P2): 0.9 kW
Outlet connection diameter: 65 mm
Explosion-proof: no
Flange shape: round
Frequency: 50Hz
Motor input power (P1): 1.4 kW
Protection class (IP): IP68
Suitable for dry installation: no
Cable length: 10 m
Impeller material: cast iron
Motor shell material: cast iron
Pump housing material: cast iron
Impeller material quality: cast iron EN-GJS-500-7 (GGG 50)
Motor shell material quality: cast iron EN-GJL-200 (GG 20)
Pump housing material quality: cast iron EN-GJL-200 (GG 20)
Maximum operating pressure: 6 bar
Outlet flow (maximum): 57.8 m³/h
Maximum static height: 11.6 m
With dry-running protection: yes
Rated operating mode: S3
Volume flow (BEP): 28.91 m³/h
Disconnect device: no
Immersion depth: 10 m
Pressure at volumetric flow (BEP): 51.18 kPa
Outlet flange pressure class: PN 10
Motor speed control: none
Weight: 57.7 kg
Function: SL1.50.65.09.E.2.50B
