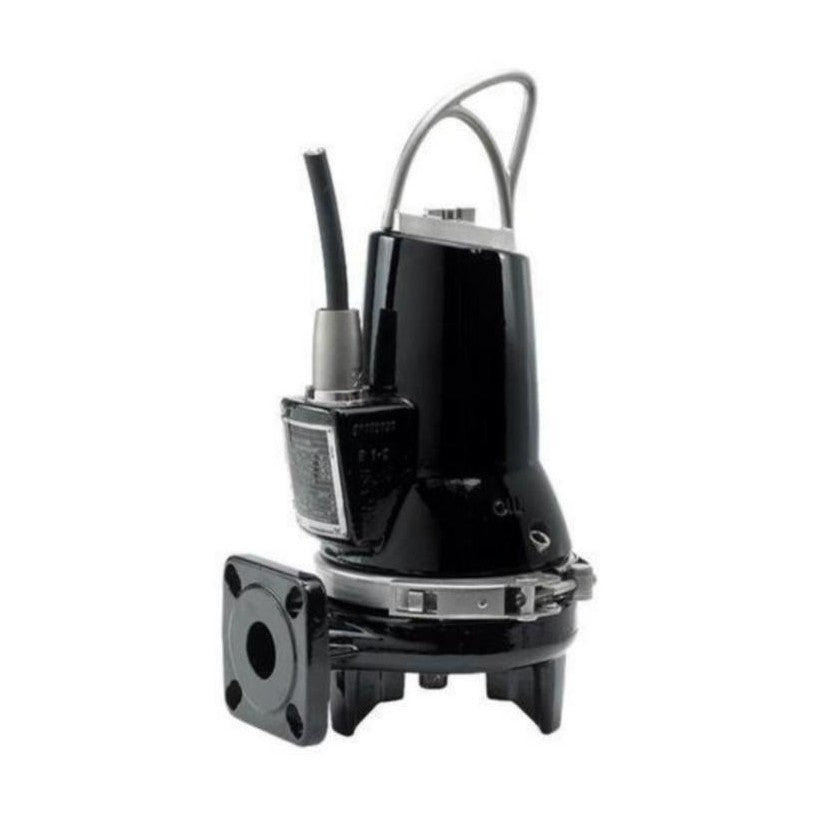

Grundfos Wastewater Pump with Separator Seg.40.15.E.2.1.502 [4836129]

€2.489,00 EUR

Brand: Grundfos
Product number: 4836129
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

The SEG AUTOADAPT ripping pump has the same technical features as the SEG pump. In addition, it is equipped with the AUTOADAPT function, which eliminates the need for external sensors or level switches that are prone to interference in the pumping station. The AUTOADAPT system automatically adapts the SEG pump to load conditions and simultaneously provides well monitoring and necessary alarms.

Product benefits:
- Pump control with built-in pressure sensor significantly increases operational reliability
- Built-in motor starter and rotation direction sensor
- During installation, one cable is connected, making the SEG AUTOADAPT pump ready for use - “PLUG AND PUMP"
- Automatic anti-seize and anti-freeze functions keep the pump ready for operation even after long periods of downtime
- Random start-up delay does not load the electrical grid after long power outages
- Automatic, adjustable slush operation prevents the formation of a fat layer
- Necessary motor protections built into the pump (overcurrent and overvoltage)
- Dry-running protection in the pump

Product number

4836129
Supplier product number:

98280726
EAN code:

5711492379622
Material class

P4910B

Specifications

Output side connection: flange
Nominal diameter of the outlet side: DN 40
Outlet standard: EN 1092-2
Number of stages: 1
Motor power (P2): 1.5 kW
Electrical connection: cabling
Flange shape: square
Frequency: 50Hz
Motor input power (P1): 2 kW
Insulation class according to IEC: F
Protection class (IP): IP68
Impeller material: cast iron
Pump housing material: cast iron
Impeller material quality: cast iron EN-GJL-200 (GG 20)
Pump housing material quality: cast iron EN-GJL-200 (GG 20)
Maximum operating pressure: 6 bar
Outlet flow (maximum): 19 m³/h
Maximum static height: 26 m
Rated current: 12 A
Rated operating mode: S3
Volume flow (BEP): 10.79 m³/h
Pump height: 471 mm
Disconnect device: yes
Pressure at volumetric flow (BEP): 171.38 kPa
Outlet flange pressure class: PN 10
Outlet connection diameter: 40 mm
Rotational speed: 2780 rpm
Explosion-proof: no
Suitable for dry installation: no
Cable length: 10 m
Pump diameter: 216 mm
Weight: 53.5 kg
Motor speed control: none
Pump type: 40.15.E.2.1.502
Stand: no
