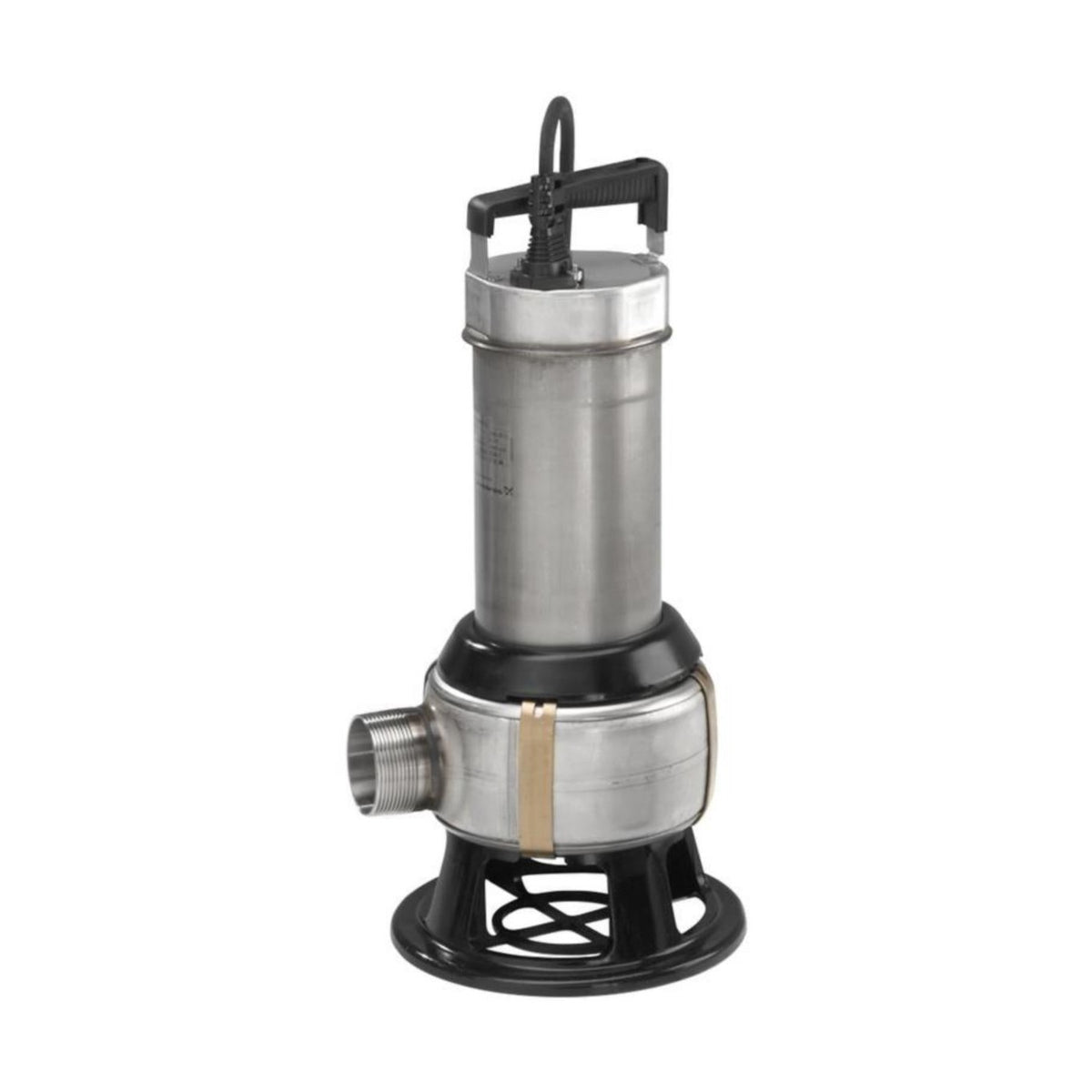

Basic and Greywater Pump Ap35B.50.08.3 4836114

€844,10 EUR

Brand: Grundfos
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90
Free pickup, no hidden costs.
Product number: 4836114

If Grundfos Unilift CC or KP are not sufficient for your pumping needs, choose Unilift AP. Unilift AP is made of stainless steel and is designed for demanding dewatering applications, for example to lower the groundwater level. All AP pumps are portable, but are also well suited for permanent installation. AP pumps are installed vertically, but AP35 models can also be installed horizontally and even at an angle. All models are available with or without a level switch and in 1-stage or 3-stage versions.

Unilift AP 12 drain pumps have a semi-open impeller and are designed for water containing solids up to 12 mm in diameter.

Unilift AP 35 drainage pumps have a free permeability of 35 mm for pumping surface water, groundwater, stormwater and similar.

The Unilift AP 35.B pump, on the other hand, can handle grey water or sludge containing up to 35 mm solids. The pump has a mounting base and the pump pressure connection is horizontal. Thanks to the handy latches, maintenance is quick and easy.

Unilift AP 50 drainage pumps have a 50 mm free permeability for pumping surface water, groundwater, stormwater and similar.

The Unilift AP 50.B pump, on the other hand, can handle grey water or sludge containing up to 50 mm solids. The pump has a mounting base and the pump pressure connection is horizontal. Thanks to the handy latches, maintenance is quick and easy.

Product number

4836114
Supplier product number:

96004577
EAN code:

5700391489150
Material class

P4803B

Specifications

Insulation class according to IEC: F
Motor power (P2): 0.78
Motor input power (P1): 1.25
Rated current: 1.98
Pump height: 468
Pumping circuit: none
Rotation speed: 2820
Maximum diameter of mounting parts: 35
Electrical connection: cabling
Weight: 9.5
Pump diameter: 210
Protection class (IP): IP68
Pump shell material: stainless steel
Motor shell material: stainless steel
Motor housing material quality: stainless steel 316 (1.4401)
Pump housing material quality: stainless steel 304 (1.4301)
Static maximum height: 13
Number of stages: 3
Impeller material: stainless steel
Impeller material quality: stainless steel 304 (1.4301)
Outflow (maximum): 21
Rated operating mode: S3
Frequency: 50Hz
Immersion depth: 2
Pressure at volumetric flow (BEP): 75.59
Motor speed control: none
Output side standard: ISO 7-1 / EN 10226-1
Nominal diameter of the outlet side: 2" (50)
Outlet connection: cylindrical female thread BSPT-Rp (ISO 7-1 / EN 10226-1)
Disconnect device: no
Suitable for dry installation: no
Explosion-proof: no
Cable length: 5
With dry-running protection: no
Volumetric flow (BEP): 10.19
