Domestic water pump Grundfos Alpha1 25-60 N 180 1V [4615333]

€626,80 EUR

Brand: Grundfos
Product number: 4615333
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

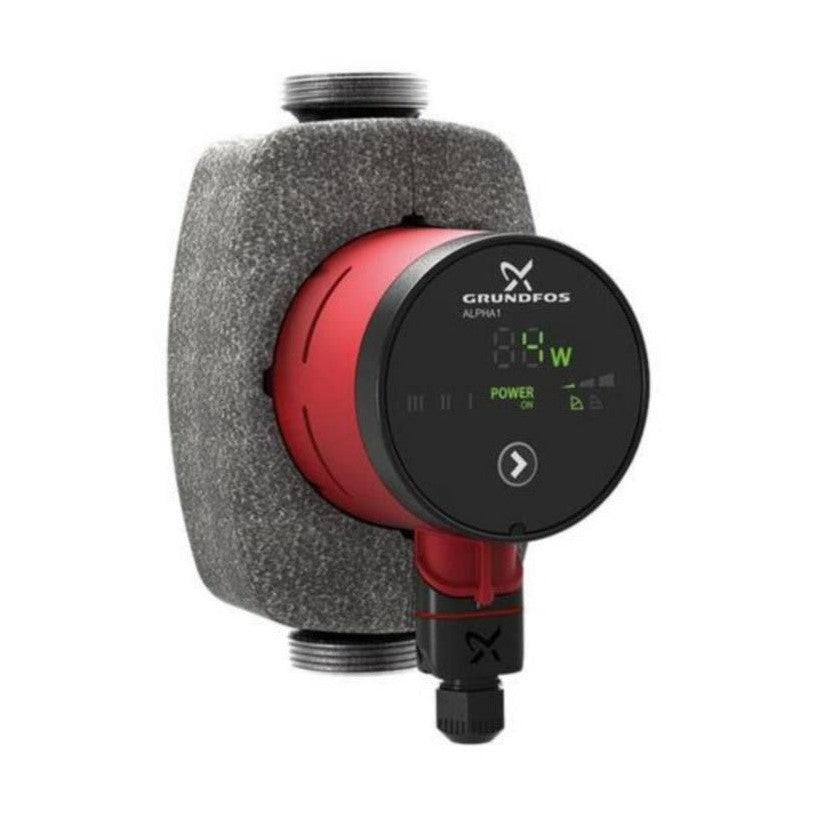

Grundfos ALPHA1 N is an affordable and energy-efficient hot water circulation pump. The pump display shows the power consumption (W). The pump housing is made of stainless steel.

Product number

4615333
Supplier product number:

99199593
EAN code:

5712608550331
Material class

P46220

Specifications

Immersion length: 180
Nominal diameter of the inlet side: 1.1/2" (40)
Nominal diameter of the outlet side: 1.1/2" (40)
Insulation class according to IEC: F
Protection class (IP): IPX4
Frequency: 50/60 Hz
Motor speed control: built-in
Motor input power (P1): 0.034
Motor control type: stepless
Rated current: 0.32
Electrical connection: other
Dual pump: no
Energy Efficiency Index (EEI): 0.2
Inlet connection: cylindrical external pipe thread
Outlet connection: cylindrical external pipe thread
Impeller material quality: other
Impeller material: other
Inlet standard: EN 1092-2
Outlet standard: EN 1092-2
Number of stages: 1
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: no
Interface signal 0-20 mA / 4-20 mA: no
Communication: none
Pump shell material: stainless steel
Pump housing material quality: stainless steel 304 (1.4308)
Maximum operating pressure: 10
Static maximum height: 6
RS-232 interface: no
RS-485 interface: no
Medium temperature (continuous): 0-110 °C
Rated voltage: 230 V
Volumetric flow (BEP): 1.94
Potential-free main switch: no
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: no
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: no
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: no
Supports Modbus RTU protocol: no
Supports Modbus TCP protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 32.16
Inlet flange pressure class: PN 10
Outlet flange pressure class: PN 10
Bluetooth standard: no
Supports PROFIBUS protocol: no
