Rip pump Grundfos SEG.40.31.2.E.50B (AUTOADAPT) [4836112]

€3.169,00 EUR

Brand: Grundfos
Product number: LVI- 4836112
Delivery time: approx. 5-10 business days.
Shipping €9.90 or
Free pickup, no hidden costs.

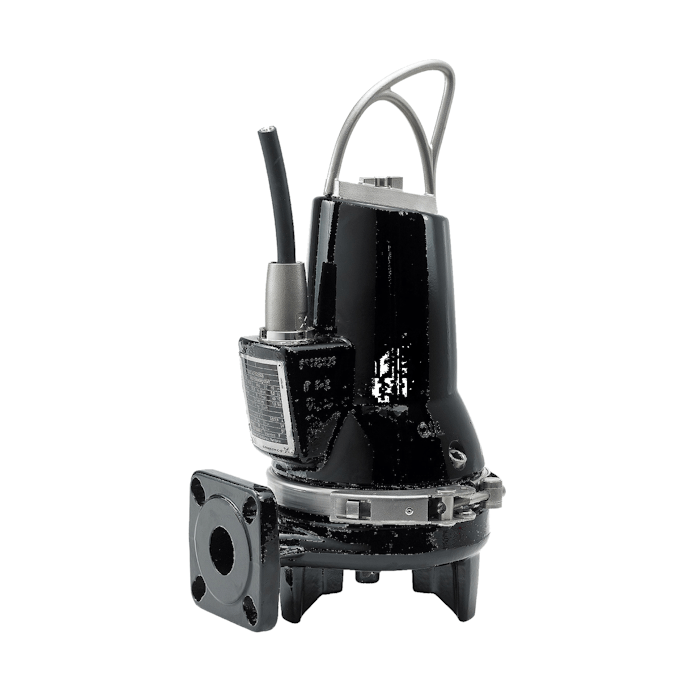

The Grundfos SEG.40.31.2.E.50B AUTOADAPT pump is a submersible pump with a horizontal discharge port, specially designed for the pressurized pumping of wastewater containing toilet waste. The SEG AUTOADAPT pump has a shredder system that breaks up the degradable solids into small pieces so that they can pass through relatively small diameter pipes.

The pump surface is smooth to prevent dirt and impurities from adhering. The pump is mainly made of cast iron. The clamping ring between the motor and the pump housing is made of stainless steel to prevent corrosion and to facilitate pump maintenance. The pump power cable also contains the conductors for the thermal protection switches in the motor windings. The cable is connected by means of a plug. The completely sealed plug connection prevents moisture from entering the pump via the cable if the cable breaks or the pump cable is handled incorrectly and/or carelessly.

Grundfos SEG AUTOADAPT pumps have an internal controller, sensors and motor protection. They only need to be connected to the mains voltage. If several pumps are installed in the same tank, the pump logic controller ensures that the load is distributed evenly over time between the pumps.

Brand: Grundfos
Product number: LVI-4836112
Power: 3100W
Voltage: 3x400V
Protection class IP: 68
Grundfos product number: 96878518
HVAC number: 4836112

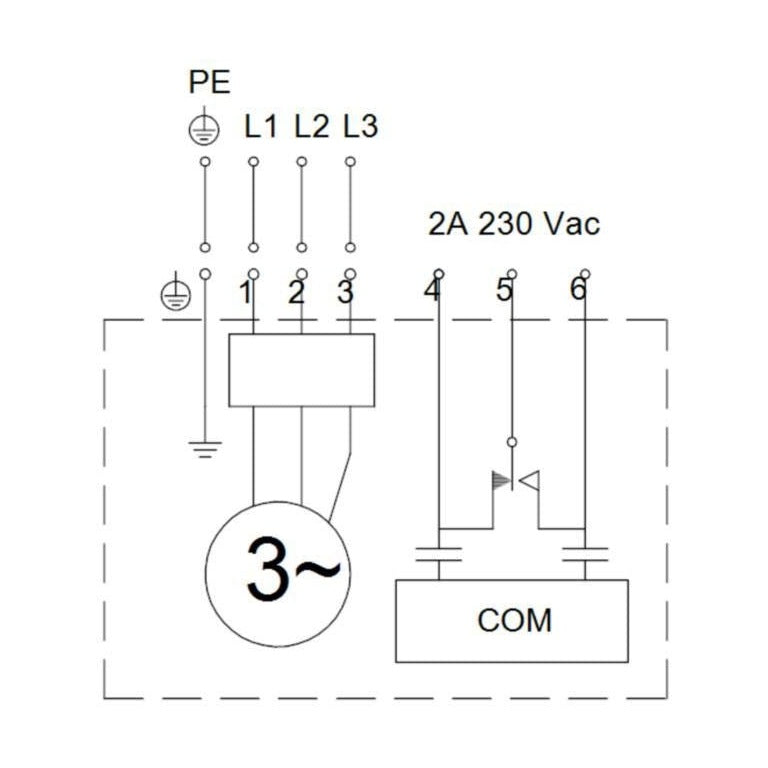

Alarm relay output

The pump has an alarm relay output. NC and NO operation are selectable and can be used for acoustic and visual alarms, for example, as required.
Random startup delay after power outage.
The pump will not start unless the phase sequence is correct.
Self-calibration after each pump cycle.

Anti-jamming system

The anti-seize system starts the pump at programmed intervals to prevent the impeller from seizing. This function overrides the dry-running sensor in non-EX versions.

Possibility of re-operation (removal of the surface board)

Follow-up is possible at programmed intervals if there is a risk of surface runoff formation.
The Grundfos CIU can be connected permanently or remotely for changing presets, for advanced settings or for reading logs and operating parameters, such as number of starts and operating hours.

Controls:

Humidity sensor: without humidity sensors
AUTOADAPT: Yes

Liquid:

Pumpable liquid: All Newtonian liquids
Liquid temperature range: 0 .. 40 °C
Density: 998.2 kg/m³

Specifications:

Impeller type: Ripper
primary shaft seal: SIC/SIC
Secondary shaft seal: CARBON/CERAMICS
Curve tolerances: ISO9906:2012 3B2

Materials:

Pump housing: Cast iron, EN-GJL-200
Impeller: Cast iron, EN-GJL-200

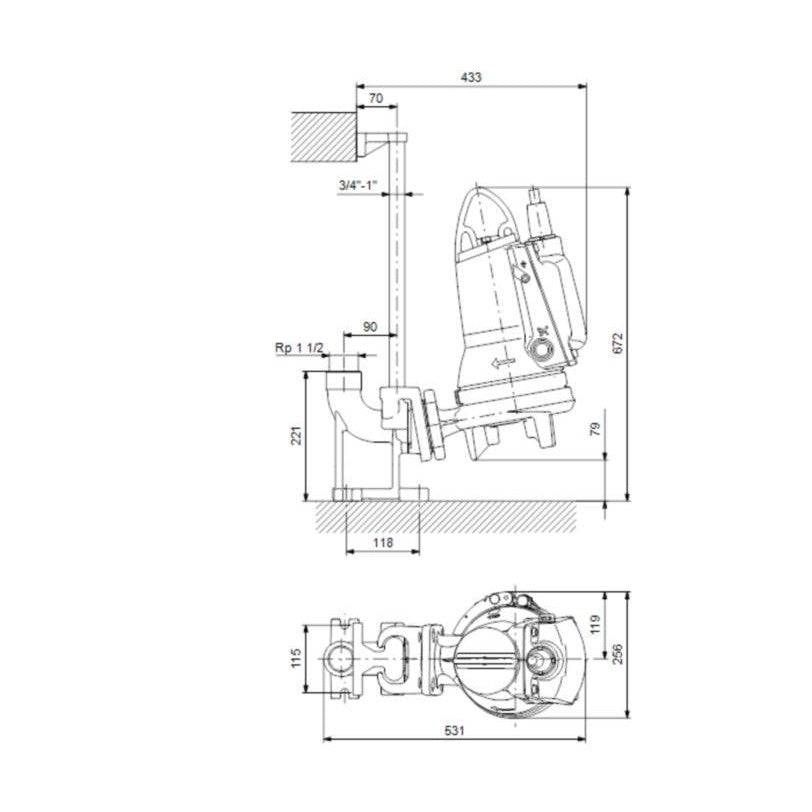

Installation:

Maximum external temperature: 40 °C
Maximum permissible operating pressure: 6 bar
Standard flange: DIN
Pipe connection: DN40/50
Pump discharge port: DN 40
Pressure range: PN10
Maximum installation depth: 10 m
Automatic clutch: 96076063

Electrical information:

Input power - P1: 3.9 kW
Rated power - P2: 3.1 kW
Supply frequency: 50 Hz
Nominal voltage: 3 x 400-415 V
Voltage tolerance: +6/-10%
Max. starts per hour: 30
Rated current: 6.3/6.3 A
Starting current: 43 A
Rated current without load: 3.1 A
Cos phi - power factor: 0.86
Cos phi - power factor at 3/4 load: 0.81
Cos phi - power factor at 1/2 load: 0.71
Rated speed: 2900 rpm
Moment of inertia: 0.01 kg m²
Motor efficiency at full load: 84%
Motor efficiency at 3/4 load: 82%
Motor efficiency at 1/2 load: 79%
Number of poles: 2
Starting method: direct start.
Protection class (IEC 34-5): IP68
Insulation class (IEC 85): F
Explosion protection: N
Cable length: 10 m
Cable model: LYNIFLEX
Cable connection type: No plug

Other information:

Net weight: 65 kg
