Grundfos Pressure Booster Pump Multistage Cmbe 5-62 [4925862]

€3.129,80 EUR

Brand: Grundfos
Product number: 4925862
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

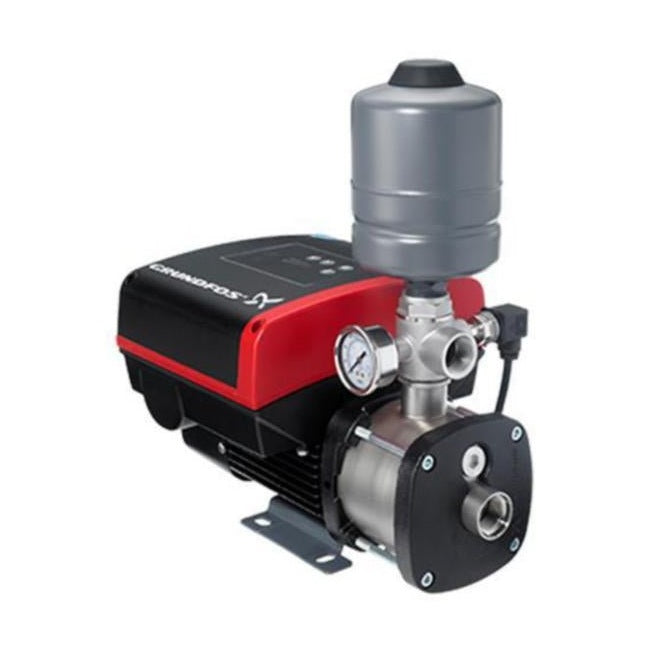

Grundfos CMBE is a compact pressure booster pump suitable for pumping and boosting domestic water in large households and small commercial buildings. CMBE maintains constant pressure throughout the system, regardless of how many water points are opened or closed. CMBE is not self-priming, but water must flow freely to the pump, e.g. from a tank at the same level or from the water supply network.

Product benefits:
- Energy-efficient motor
- Constant pressure with built-in speed control
- Easy installation and use
- Silent operation
- Integrated dry-running protection with automatic restart
- Small size
- Robust and reliable pump

Product number

4925862
Supplier product number:

98374704
EAN code:

5711493909446
Material class

P4760B

Specifications

Function: 5-62
Nominal diameter of the inlet side: 1.1/4" (32)
Nominal diameter of the outlet side: 1.1/4" (32)
Insulation class according to IEC: F
Pump shell material: stainless steel
Motor input power (P1): 1.72 kW
Frequency: 50/60 Hz
Pump protection level (IP): IP55
Inlet connection: cylindrical female thread BSPT-Rp (ISO 7-1 / EN 10226-1)
Outlet connection: cylindrical internal pipe thread
Number of pumps: 1
Width : 217mm
Height : 455mm
Pump housing material quality: stainless steel 304 (1.4301)
Suitable for sprinkler/irrigation: yes
Suitable for tap water: yes
Length: 349.8 mm
With bypass pipe: no
Motor speed control: built-in
Suction installation: no
Rotational speed: 3868 rpm
Input standard: ISO 228-1
Output side standard: ISO 228-1
Motor power (P2): 1.5 kW
Electrical connection: other
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: no
Interface signal 0-20 mA / 4-20 mA: no
Communication: none
Suitable for rainwater: yes
Cable length: 1.5 m
Tank material: other
Impeller material: stainless steel
Tank material quality: other
Impeller material quality: stainless steel 304 (1.4301)
Maximum operating pressure: 10 bar
RS-232 interface: no
RS-485 interface: no
Volume flow (BEP): 6 m³/h
Potential-free main switch: no
Radio standard 5G: no
WLAN 802.11 standard: no
Cabinet IP rating: IP55
Supports BACnet IP protocol: yes
Supports BACnet MS/TP protocol: yes
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: yes
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: yes
Supports Modbus RTU protocol: yes
Supports Modbus TCP protocol: yes
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 468.64 kPa
Motor control type: stepless
Rated current: 7.98 A
Bluetooth standard: no
Supports PROFIBUS protocol: yes
