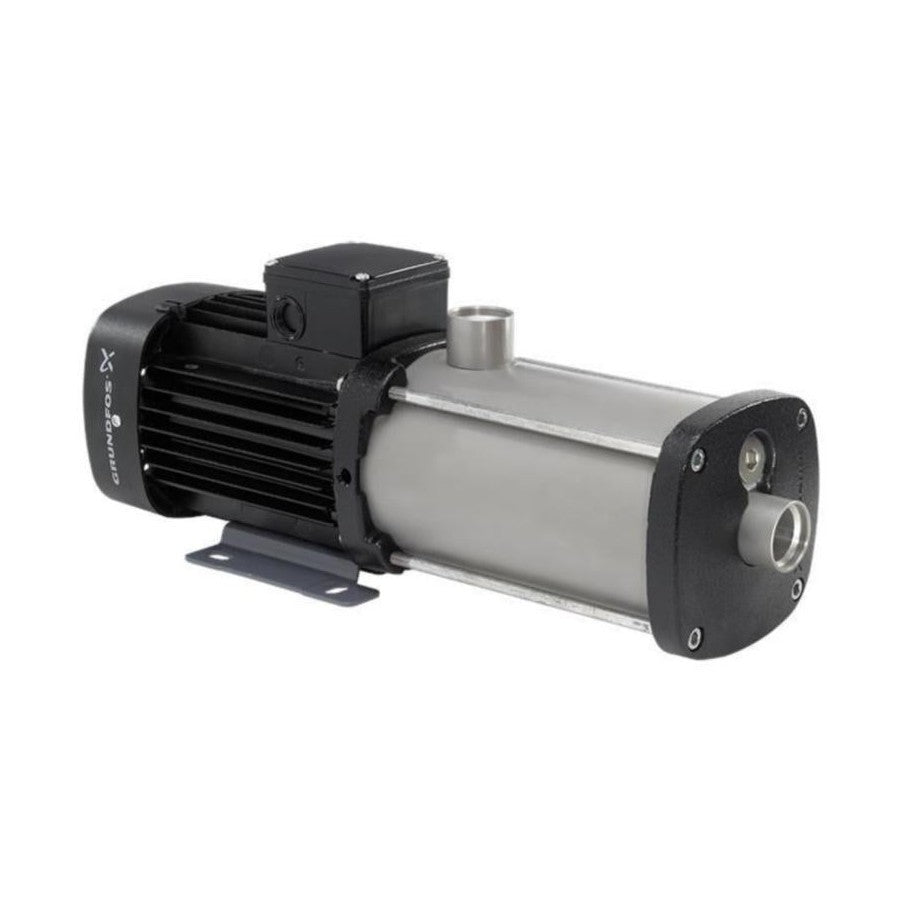

Grundfos Pressure Booster Pump Multistage Cm 25-3 [4925812]

€3.192,00 EUR

Brand: Grundfos
Product number: 4925812
Delivery time: approx. 10-15 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

The multi-stage CM pump is a compact and reliable workhorse, especially preferred by equipment manufacturers, for various industrial configurations. The pump is also suitable for pressure boosting or cooling, for example. The pumps have 1- or 3-phase motors

Product benefits
- Small size
- Easy to maintain
- Wide capacity range
- Quiet running sound
- Highly efficient hydraulics
- Electrophoretically coated cast iron parts
- IE3 efficiency class motor

Product number

4925812
Supplier product number:

98838915
EAN code:

5712602171327
Material class

P4760B

Specifications

Pump type: 25-3
Weight: 50.2 kg
Insulation class according to IEC: F
Motor with extended shaft: no
Motor speed control: none
Rated current: 20.5 A
Self-priming: no
Rotational speed: 2900 rpm
Immersion length: 105 mm
Pump height: 559.9 mm
Protection class (IP): IP55
Frequency: 50/60 Hz
Pump shell material: stainless steel
Impeller material quality: stainless steel 316 (1.4401)
Impeller material: stainless steel
Inlet connection: cylindrical female thread BSPT-Rp (ISO 7-1 / EN 10226-1)
Outlet connection: cylindrical female thread BSPT-Rp (ISO 7-1 / EN 10226-1)
Nominal diameter of the outlet side: 2" (50)
Input standard: ISO 228-1
Output side standard: ISO 228-1
Number of stages: 3
Motor power (P2): 5.5 kW
Electrical connection: connectors
Explosion-proof: no
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: no
Interface signal 0-20 mA / 4-20 mA: no
Communication: none
Connection material: stainless steel
Connection material quality: stainless steel 316 (1.4401)
Pump housing material quality: stainless steel 316 (1.4401)
Maximum operating pressure: 16 bar
Outlet flow (maximum): 30 m³/h
Maximum static height: 50.7 m
RS-232 interface: no
RS-485 interface: no
With dry-running protection: no
Minimum Efficiency Index (MEI): 0.41
Model / Type: horizontal
Motor energy efficiency class: IE3
Volume flow (BEP): 22 m³/h
Standard engine: yes
Potential-free main switch: no
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: no
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: no
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: no
Supports Modbus RTU protocol: no
Supports Modbus TCP protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 452.12 kPa
Inlet flange pressure class: PN 16
Outlet flange pressure class: PN 16
Radio standard 2G: no
Radio standard 3G: no
Radio standard 4G: no
Bluetooth standard: no
Supports PROFIBUS protocol: no
