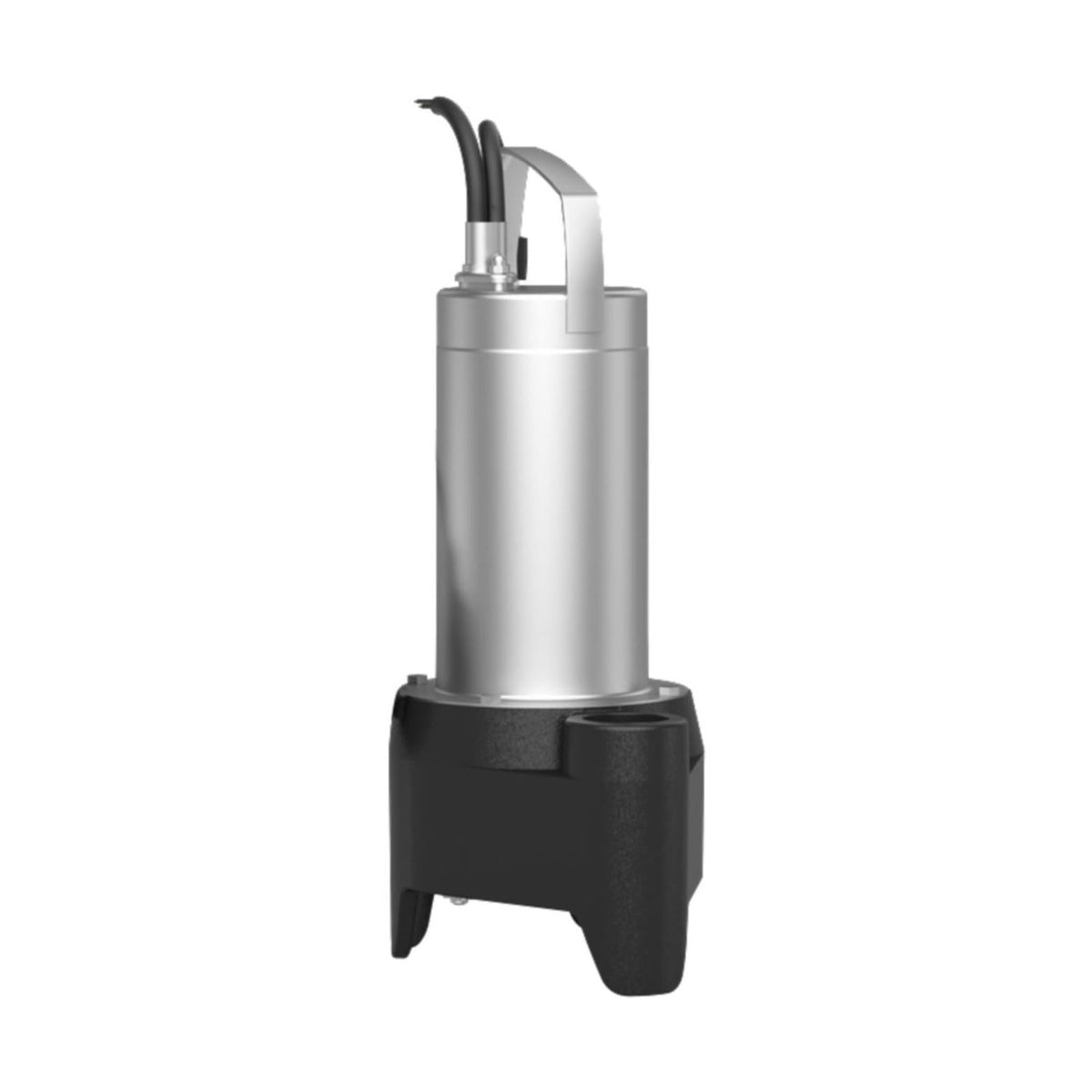

Wastewater pump (Grey Water) Wilo Rexa Mini3 [4821996]

€548,90 EUR

Brand: Wilo
Product number: 4821996
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

Drain pump for fixed and mobile wet installation in intermittent use.

Pumping in a domestic environment:

Wastewater, not containing feces
Greywater (containing small amounts of sand and gravel)
Wastewater pump with vortex impeller and vertical threaded connection. Hydraulic housing made of cast iron, impeller made of plastic. Surface-cooled motor with integrated operating capacitor and self-switching thermal motor monitoring. Motor housing made of stainless steel. Oil-filled seal chamber with double seal: shaft seal on the motor side, mechanical seal on the pump side.

Note: If the pump is installed in a DrainLift WS 50 sump, it can be used to pump sewage containing faeces. The system is approved according to EN 12050-1.

Product number

4821996
Supplier product number:

3094012
EAN code:

4048482948799
Material class

P49120

Specifications

Insulation class according to IEC: F
Motor power (P2): 0.6 kW
Motor input power (P1): 0.93 kW
Rated current: 4.1 A
Pump height: 416 mm
Pumping circuit: other
Rotational speed: 2900 rpm
Maximum diameter of mounting parts: 40 mm
Electrical connection: connection cable with plug
Protection class (IP): IP68
Pump shell material: cast iron
Motor shell material: stainless steel
Motor shell material quality: stainless steel 304 (1.4301)
Pump housing material quality: cast iron EN-GJL-200 (GG 20)
Maximum static height: 10.99 m
Number of stages: 1
Impeller material: polypropylene
Impeller material quality: other
Outlet flow (maximum): 21 m³/h
Rated voltage: 230 V
Nominal operating mode: S3 15%
Frequency: 50Hz
Immersion depth: 7 m
Pressure at volumetric flow (BEP): 65.7 kPa
Motor speed control: none
Output side standard: ISO 228-1
Nominal diameter of the outlet side: 1.1/2" (40)
Outlet connection: cylindrical external pipe thread
Disconnect device: no
Maximum operating pressure: 1.2 bar
Suitable for dry installation: yes
Outlet connection diameter: 40 mm
Cable length: 10 m
With dry-running protection: no
Volume flow (BEP): 14 m³/h
Outlet flange pressure class: PN 10
Motor control type: step control
