Domestic water pump WILO STAR-Z 20/7 [4623249]

• Brand: Wilo
• Product number: LVI-4623249
• Delivery time: approx. 5-10 business days.
• Shipping €9.90 or
• Free pickup, no hidden costs.
  More information:

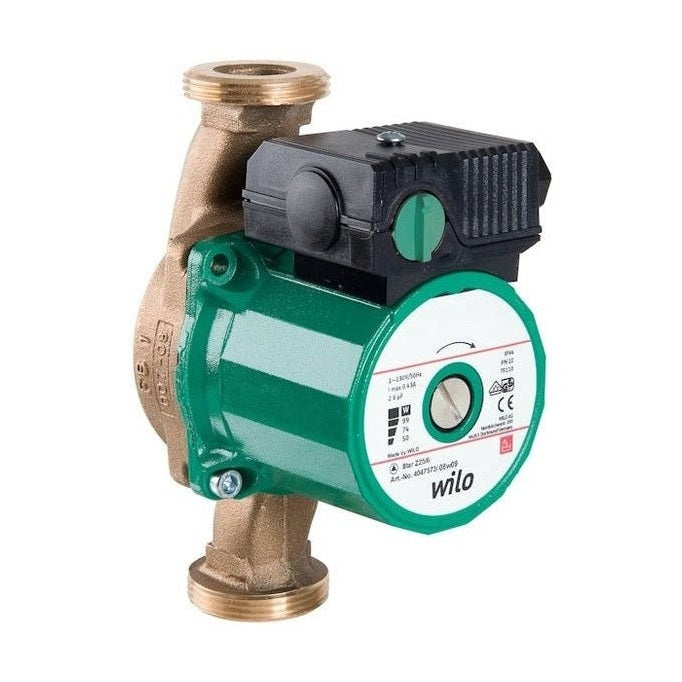

This circulation pump is only suitable for drinking water. The Wilo Star-Z is a hot water circulation pump, a glandless pump with manual, three-stage speed control for pipe installation.

The pump has a stall-proof motor. The pump housing is made of bronze, the impeller is made of glass-fiber reinforced plastic, and the ceramic shaft is equipped with plastic resin-impregnated carbon plain bearings.

Features
maximum permissible operating pressure PN 10 bar
mains connection 1~230 V, 50 Hz
Motor protection class IP44
suction side pipe connection G 1¼
pressure side pipe connection G 1¼
installation length 150 mm
Technical features
Pump shell materialBronze
Pump housing material qualityBronze (Rg 5)
Impeller materialPolypropylene
Impeller material quality PP-GF
Volume flow (BEP)3.218 m³/h
Pressure at volumetric flow (BEP)38.07 kPa
Outlet flow (maximum)6.04 m³/h
Maximum static height6.019 m
Maximum operating pressure10 bar
Dual pumpNo
Electrical connectionConnectors
Rated voltage230 ... 230 V
Number of stages1
Frequency50 Hz
Rated current0.65 A

Product codes
SAPAPS099
LVI4623249
PLC4623249
EAN/GTIN 4016322698067
Manufacturer's product code 4081203
Supplier product code4081203
Basic
Package dimensions (L x W x H)200 x 150 x 150 mm
Package volume4.5 l
Package weight3.4 kg
Unit piece
Package sizes1
Sales package contents–
UNSPSC40151510
BrandWILO
SupplierWILO NORDIC AB
