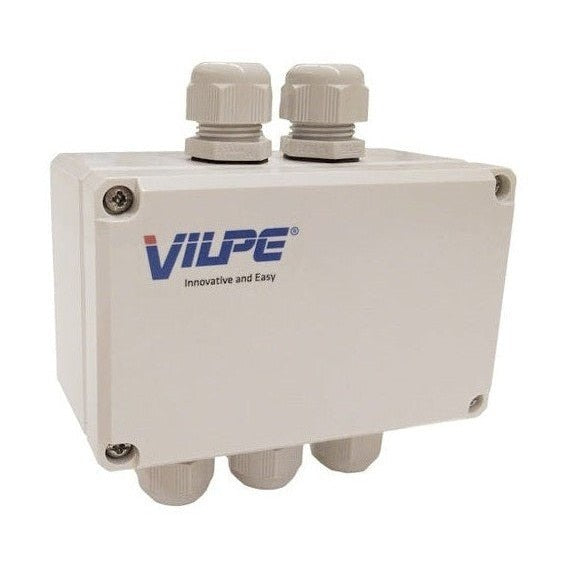

Pressure regulator vilpe 24 V [7820400]

Intended use: Measures the pressure in the ventilation duct and keeps the pressure in the ventilation duct constant by adjusting the roof fan. Compatible with EC fans. Mounted on the wall. IP54.
Dimensions: 78 x 90 x 40 mm
Contents: Pressure regulator, installation instructions, hose, 2 test connectors
VILPE ​​Pressure Regulator measures the duct pressure very accurately. The pressure regulator also ensures that the pressure in the ventilation duct remains constant. The product is ideal for apartment buildings, as it balances out changes in the ventilation of an individual apartment. When the device detects a change in the pressure in the ventilation duct, it adjusts the power of the roof fan. It can also be used to depressurize a specific space in the building.
The pressure sensor integrated into the product is temperature compensated to ensure accurate measurement results. The pressure difference is displayed with an accuracy of 1 Pa in the measuring range of -100…+3500 Pa. When used as a differential pressure transmitter, the measuring range can be adjusted in 50 Pa increments. When adjusting the operation of the peak exhaust fan, the pressure difference can be adjusted in 1 Pa increments. No separate tools are required to make the adjustment settings.
The factory settings on the device are 0–500 Pa, 0–10 V voltage signal and 10 second response time.

Product number: 7820193

Supplier product number: 735029

EAN code: 6410457350292

Material class I78010
