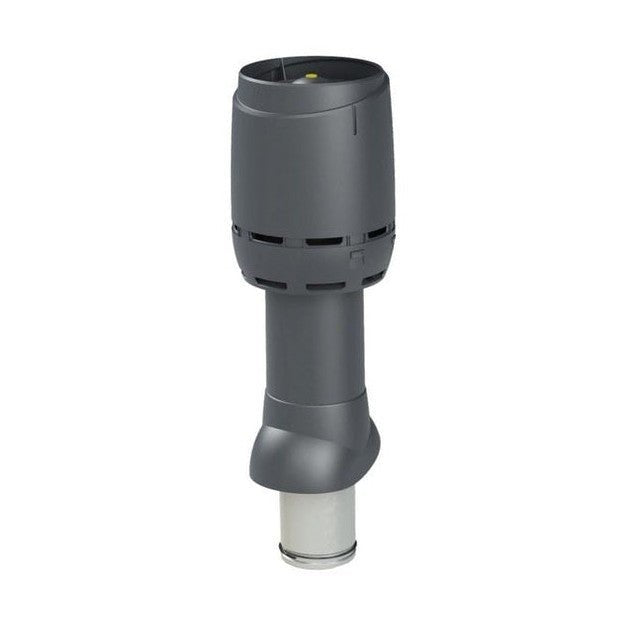

Exhaust pipe Vilpe 125P/IS/700 Flow grey [7820268]

Applications: Insulated exhaust pipe for ventilation, with new FLOW series cap. Inner pipe with lip seal, made of galvanized sheet steel. The package includes a 15 mm thick and 200 mm high insulation sleeve, which makes it easier to insulate the product at the penetration. In addition to the pipe, a VILPE ​​roof penetration is required, selected according to the roof.
Dimensions: Duct size Ø 125 mm, outer dimension Ø 160 mm, height from ceiling surface approx. 700 mm.
Contents: Pipe, FLOW cap, mounting screws.

The FLOW series hoods have a pressure loss of up to 40% less than before, which results in savings in both ventilation energy consumption and housing costs. For example, a 160 mm FLOW exhaust pipe (101 l/s, 30 Pa vs. 20 Pa): A pipe equipped with a FLOW hood has a pressure loss of about 33% at a flow rate of 100 l/s. The FLOW exhaust pipe pays back the price difference in electricity consumption in about three years compared to the previous model.

FLOW products, when used in conjunction with the VILPE ​​Intake solution, reduce the ventilation unit's electricity consumption by up to 12% compared to other previous generation products on the market. The lower electricity consumption is directly felt in your wallet every year and helps to save the environment.

Thanks to intensive airflow testing and refined design, FLOW products have a unique
good water separation and a straight upward airflow. This further ensures that moisture stays outside and dirty air is expelled from inside directly towards the sky, and particles do not soil the roof or facade.
