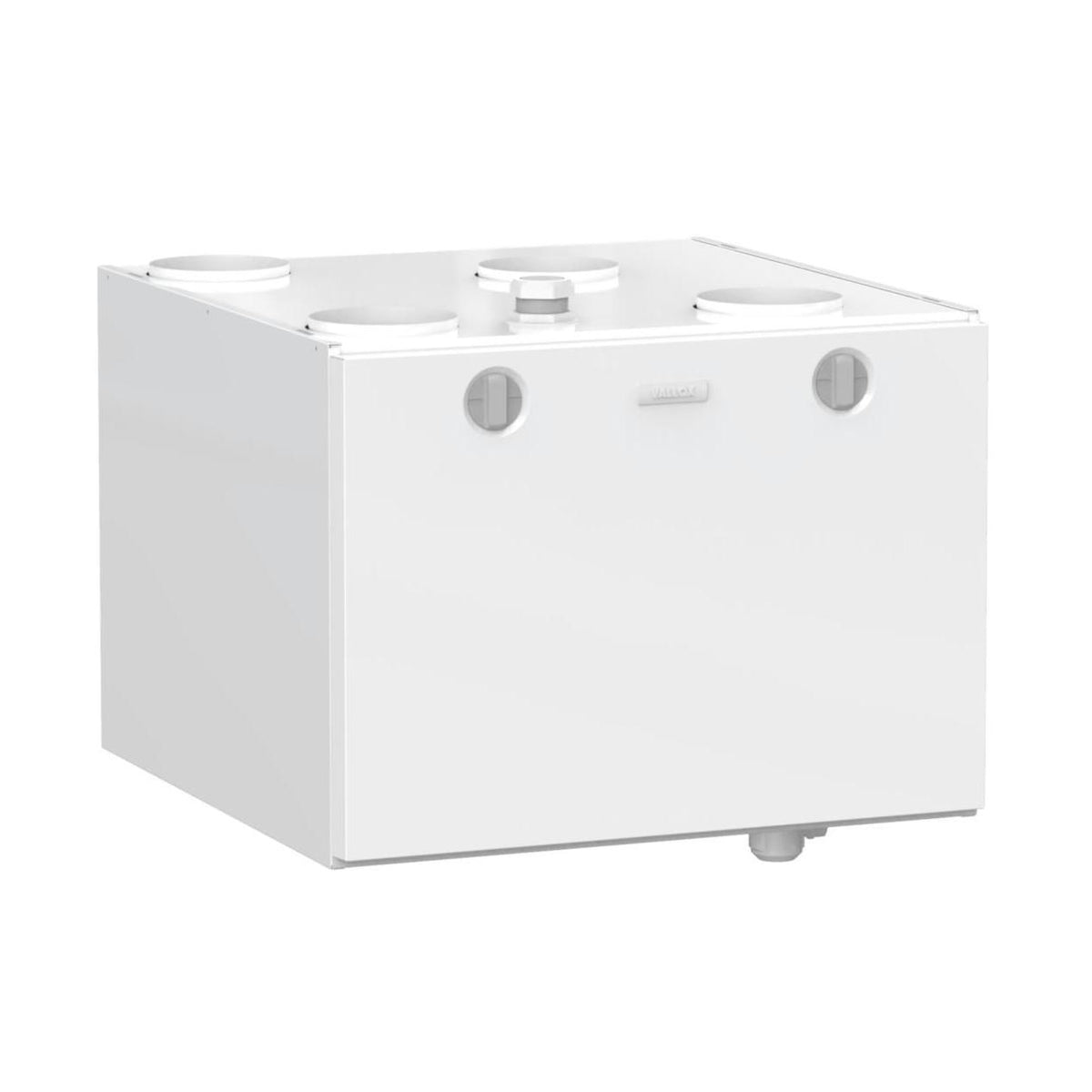

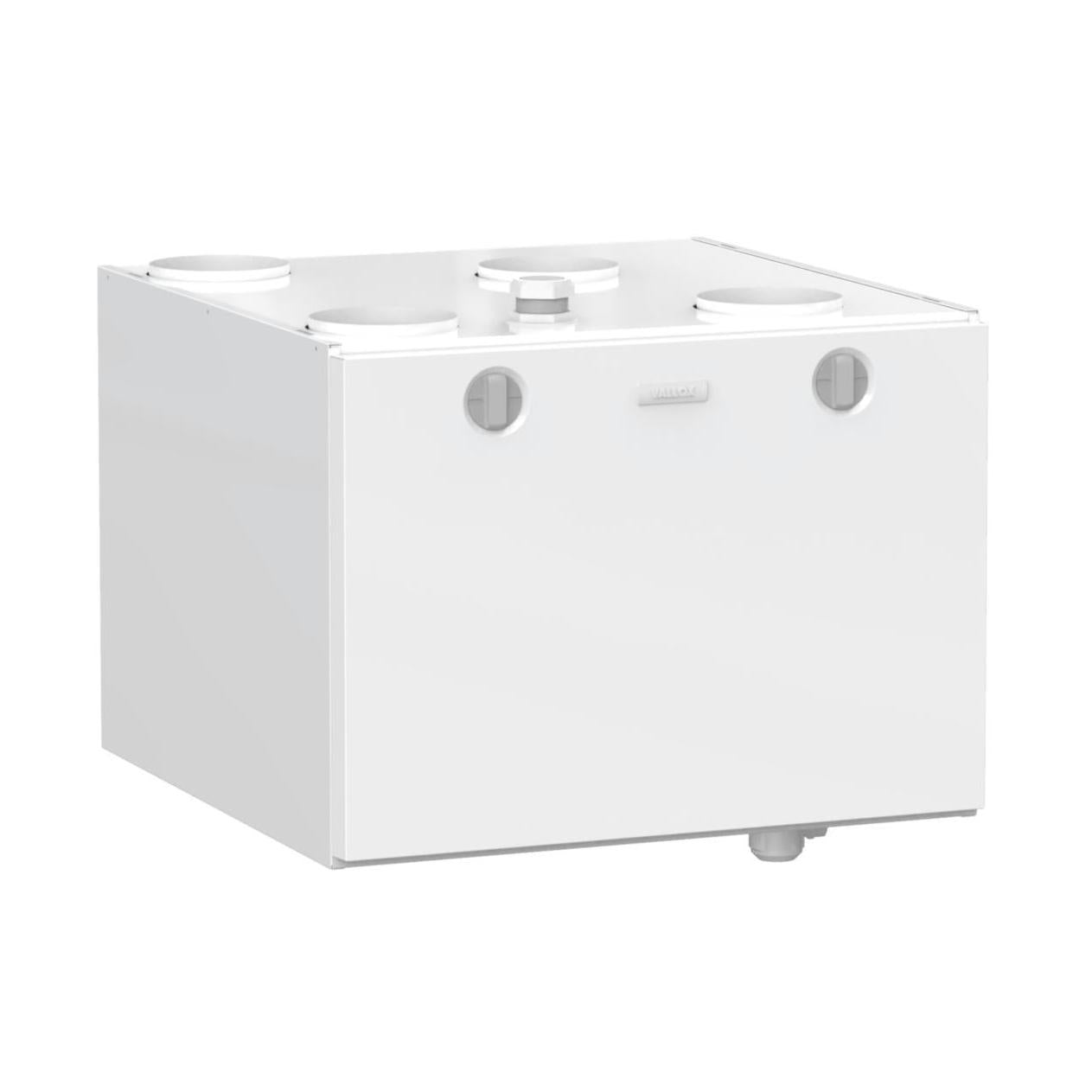

Lto-Kone Vallox 99 Mv Ra02 [7912177]

€2.351,81 EUR

Brand: Vallox
Product number: 7912177
Delivery time: approximately 20 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

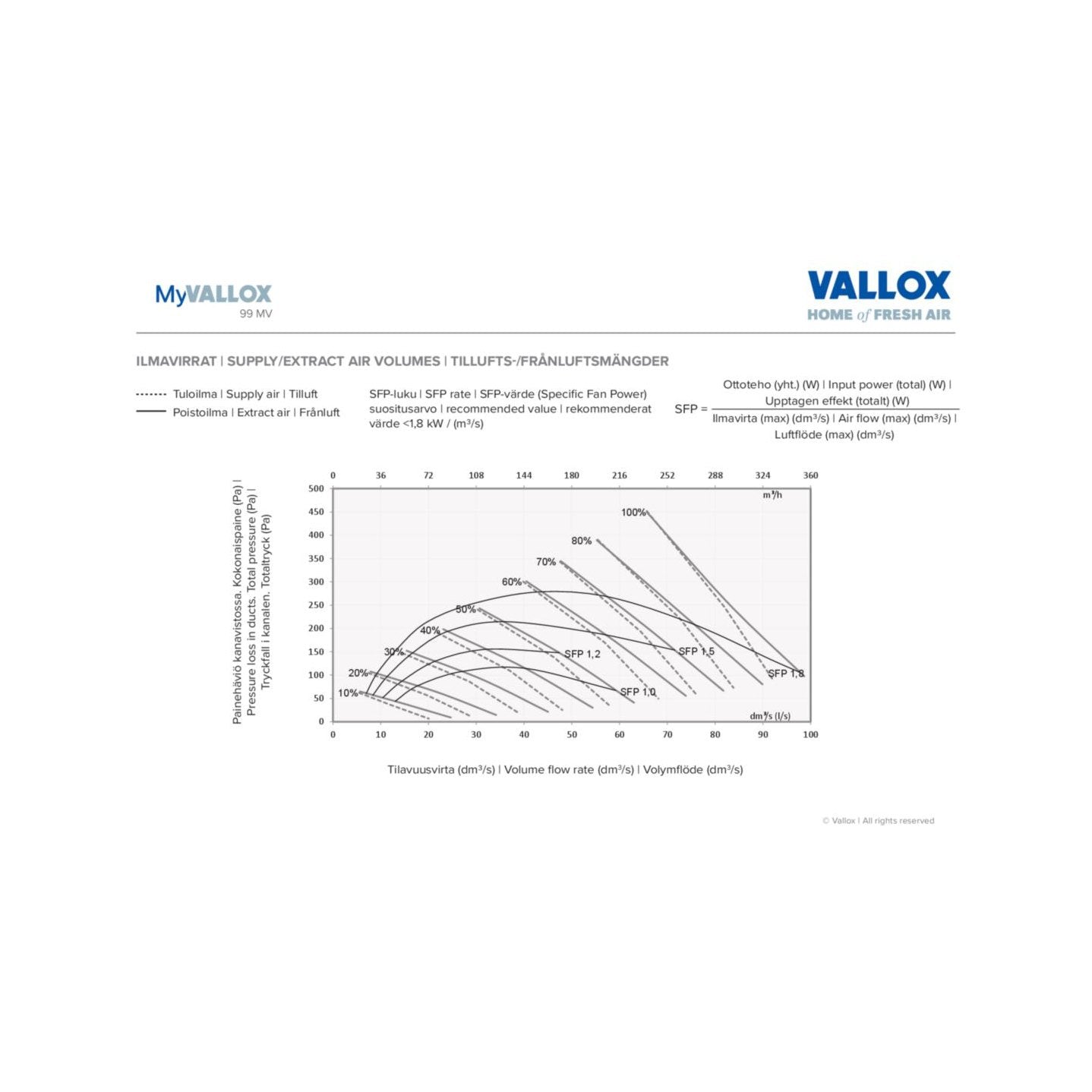

- Max. exhaust air 99 l/s @ 100 Pa
- max. supply air 92 l/s @ 100 Pa
- cross-countercurrent cell, efficiency > 80 %
- specific energy consumption class (SEC) in cold/average climate: A+/A
- automatic, partial bypass of heat recovery with cooling recovery
- Vallox on-demand defrosting system
- automatic boost, internal humidity and carbon dioxide sensor
- possibility to control remotely via the network by connecting the machine to the MyVallox Cloud service or the MyVallox Home home network
- fireplace switch function
- supply air filtration ISO Coarse > 75% + ISO ePM?
- exhaust air filtration ISO Coarse > 75%
- electric post-heating resistor 900 W
- additional electric heating element 900 W
- Modbus and KNX connection ready
- safety switch cuts off power when the door is opened
- water trap Vallox Silent Klick included in the price
- without controller

Product number

7912177
Supplier product number:

4114424
EAN code:

6438326000345
Material class

I79011

Specifications

Energy label: A

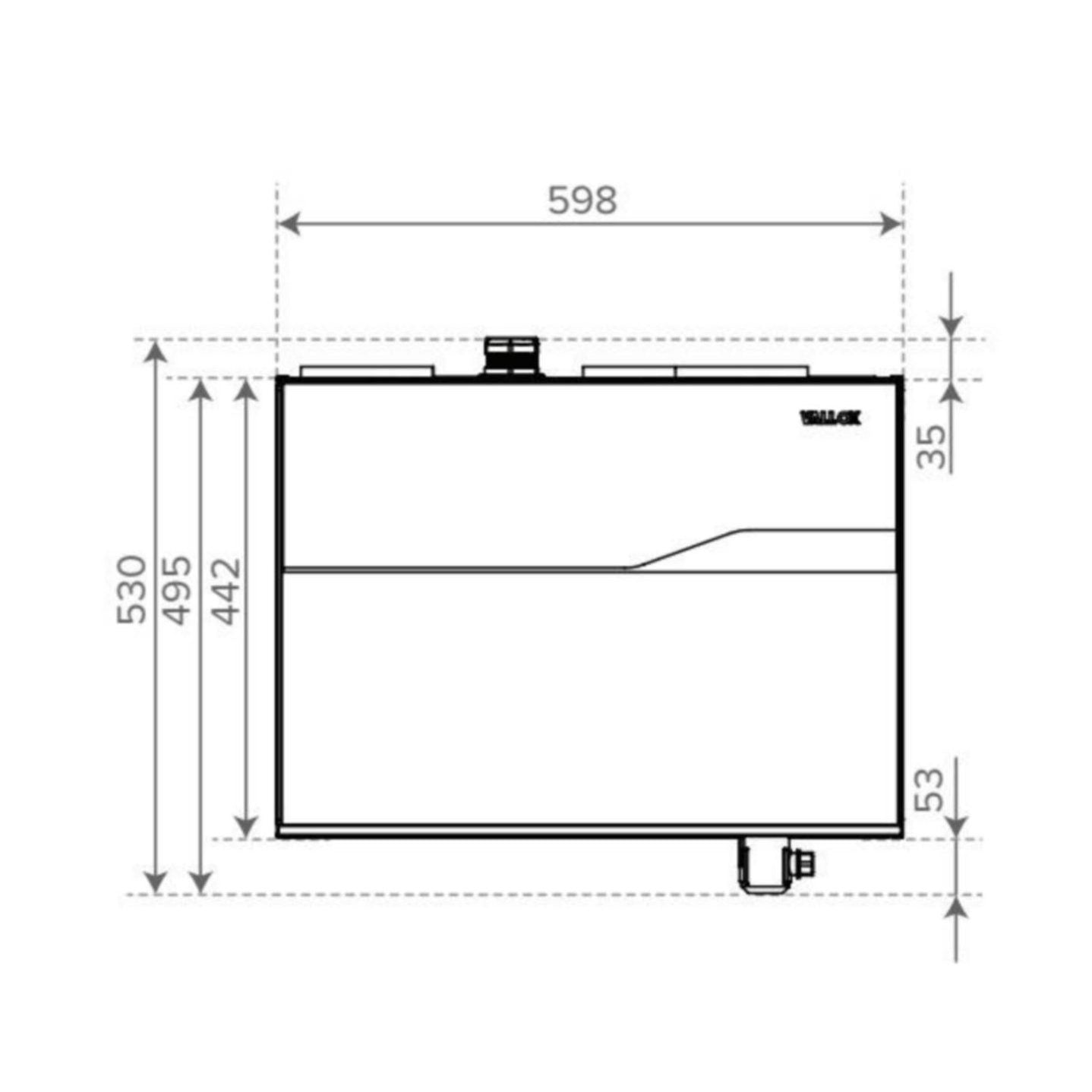

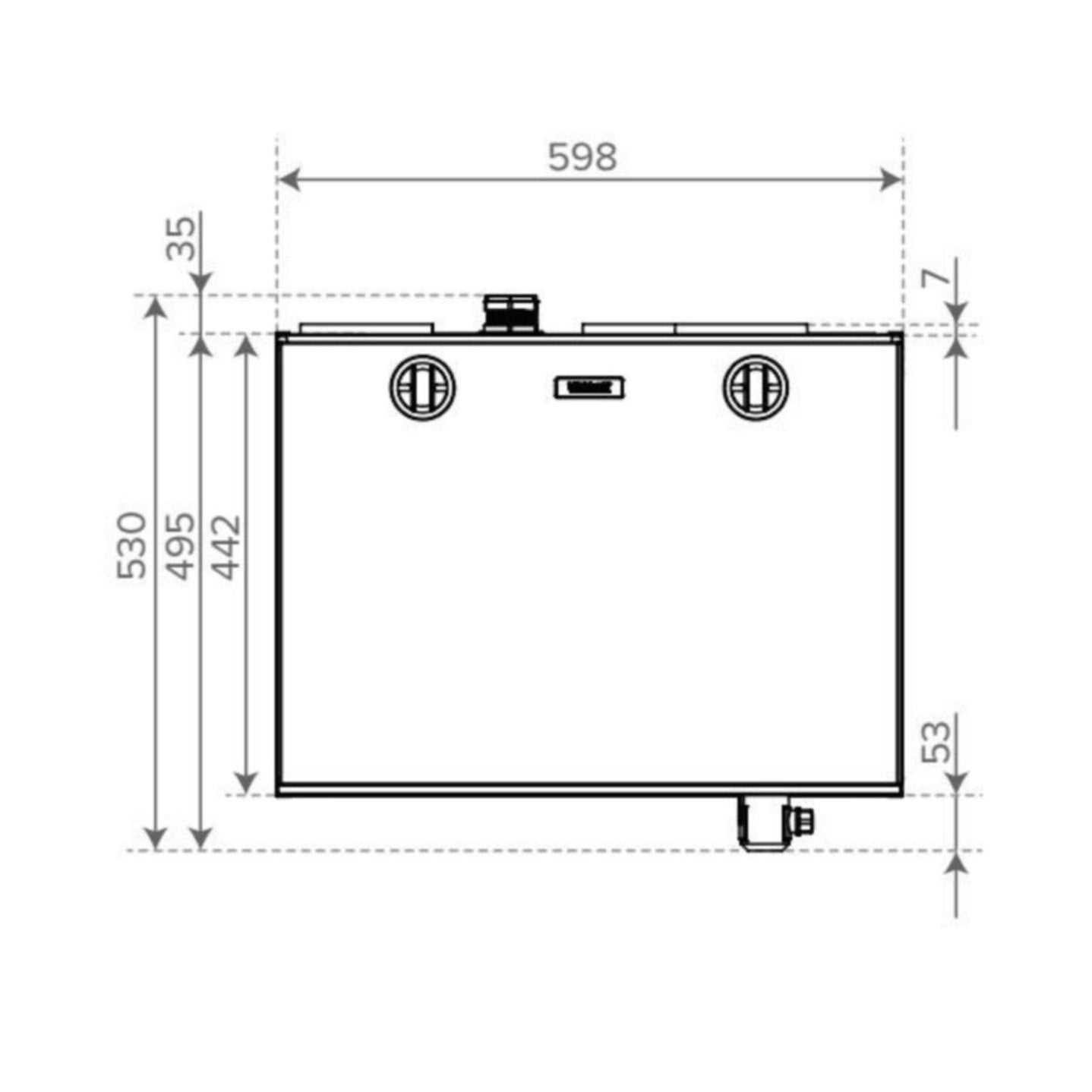

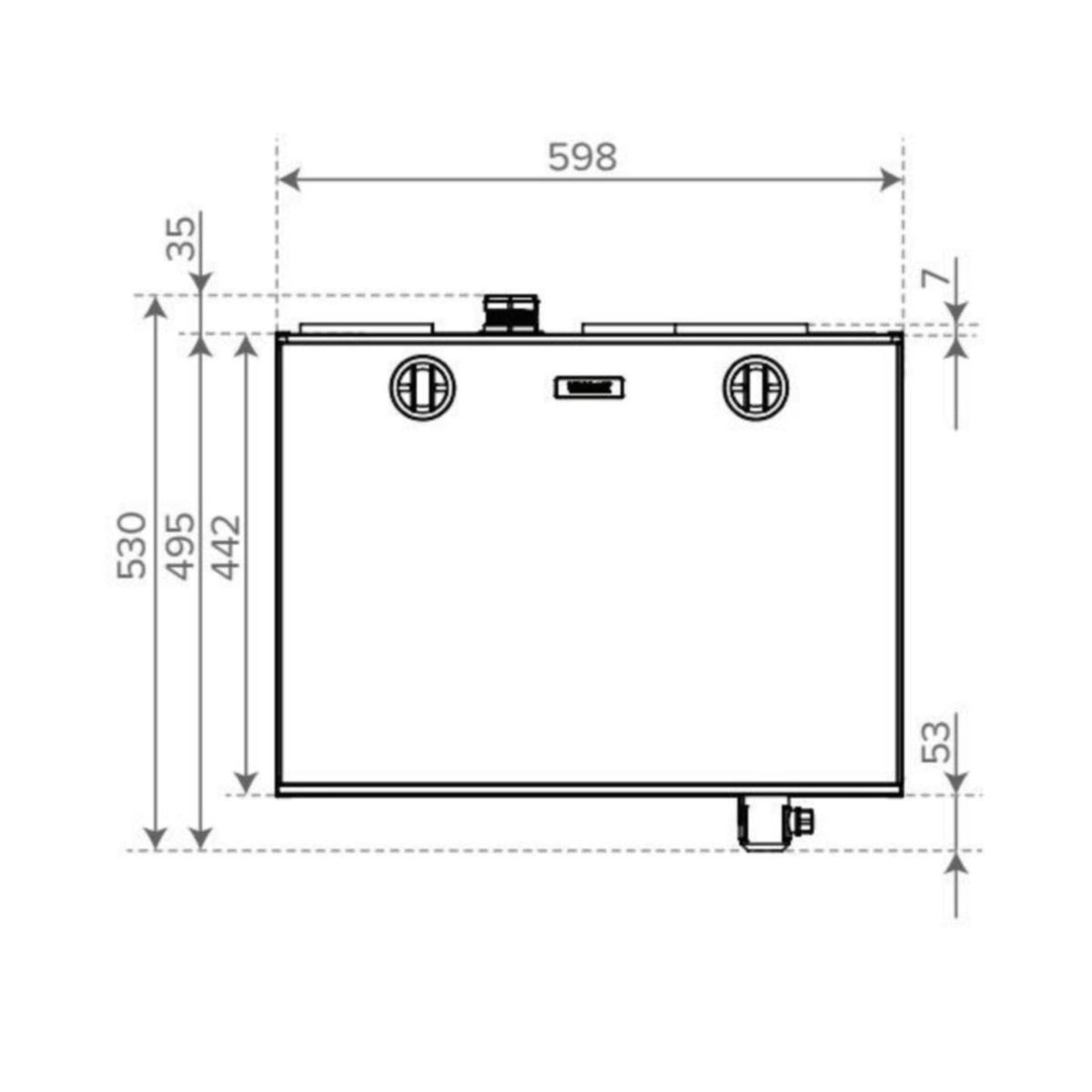

Width : 598mm
Height : 442mm
Depth: 625 mm
Voltage : 230V
Weight: 62 kg
Heat recovery method: other
Bypass: yes
Frequency : 50Hz
Thermal efficiency at 70% air volume at 50 Pa: 80.9 %
Maximum air flow, 100 Pa: 331 m³/h
Number of stages: 1
Electric heating element power: 900-1800 W
Power consumption at maximum air flow at 100 Pa: 0.176 kW
Thermal efficiency according to EN 13141-7: 81 %
Nominal duct diameter: 125 mm
Wall mounting: yes
Energy efficiency class (1253/2014/EU): A
Digital display: no
Additional VOC sensor: yes
Heat exchanger material: aluminum
With continuous pressure control: no
With heat protection: yes
Suitable for wired control unit: yes
Roof connection, on: yes
With area control: no
Housing connection below: no
Heating element: yes
Housing connection on the right side: no
Apartment connection above: yes
Roof connection, side: no
Supports Modbus protocol: yes
Supply air filter according to ISO 16890-1: 2016: ISO ePM1
Compatible with wireless remote control: no
Floor installation: no
Housing/cover material: steel
Suitable for (extra) carbon dioxide sensor (CO"): yes
Internal carbon dioxide sensor (CO2): yes
Suitable for (extra) humidity sensor (RH): yes
Reversible right/left version: no
Wired control unit: no
Housing connection on the left side: yes
Suitable for area control: no
Internal humidity sensor (RH): yes
Possibility to connect a central heating boiler: no
Ceiling mounting: no
Frost protection type: Heating element
With constant volume flow control: no
VOC sensor (VOC volatile organic compounds): no
Connections on the interior side: connection head
Motor type: electronically commutated (EC)
Electrical connection: connection cable with earthed plug
Connections to the outdoor air side: connection head
