Energy Meter Panel Wiser Energy Meter Pt R9 3P+N Flex [6768066]

€181,10 EUR

  • Brand: Schneider Electric
  • Product number: 6768066
  • Delivery time: approx. 1-5 business days.
  • Shipping cost: €9.90 or
  • Free pickup, no hidden costs.

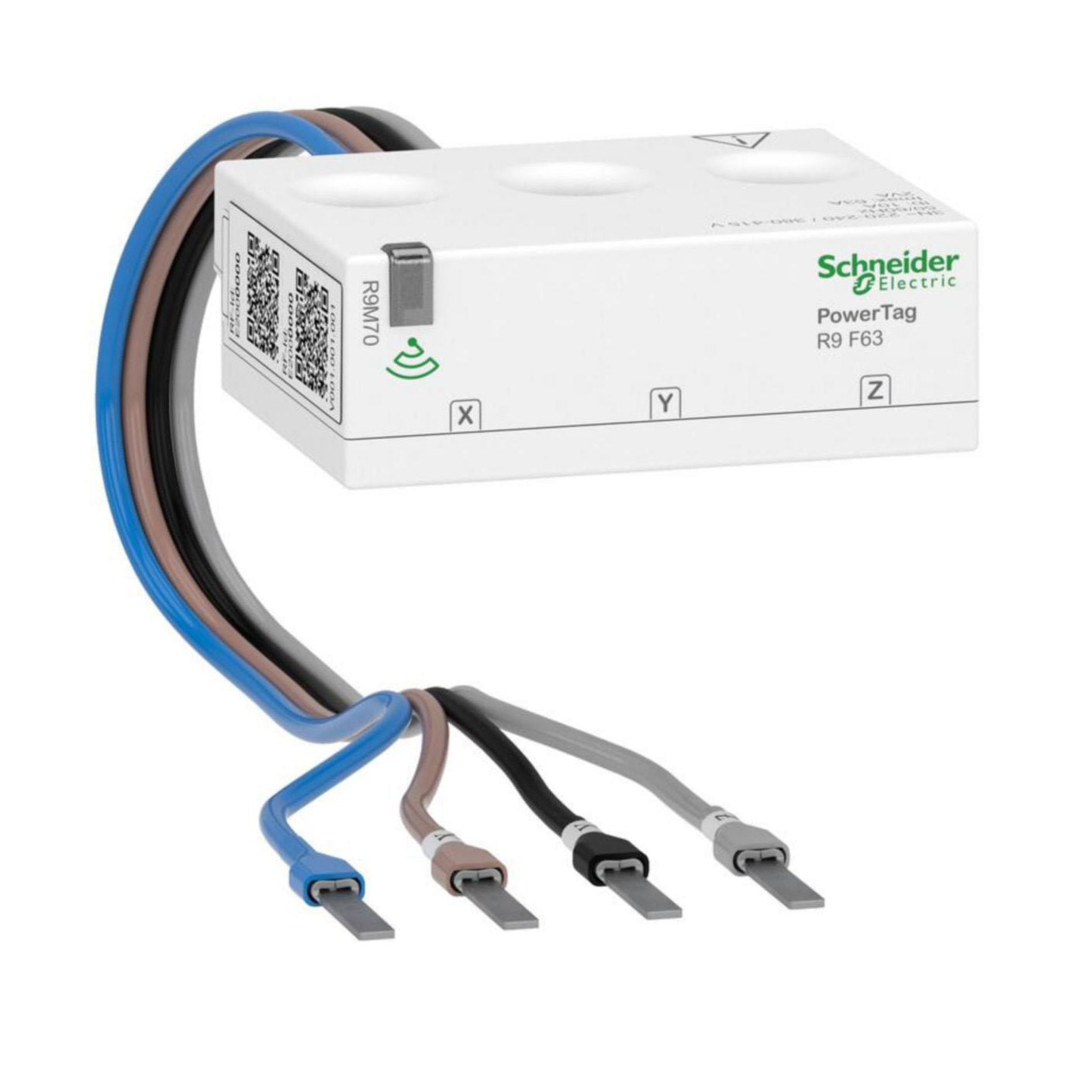

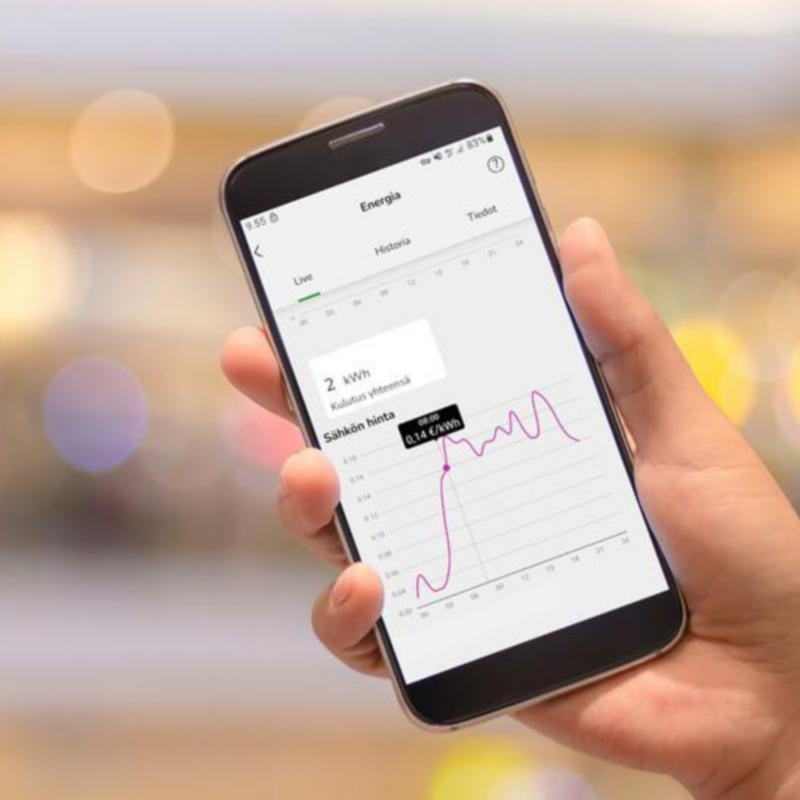

Wiser is a smart home system that increases home comfort, security and energy efficiency affordably and easily. A Wiser smart home consists of various devices that can be controlled wirelessly in various ways. The Wiser phone app allows for convenient situational controls, scheduling or automation based on weather conditions, for example. The devices also talk to each other, so home functions can be automated without the user's attention. PowerTag Energy is a wirelessly communicating energy sensor designed for energy management in new buildings as well as renovation projects. Together with the Wiser central unit, PowerTag Energy monitors the home's energy consumption in real time up to 63A. The device can be installed in the central unit in minutes. When wirelessly connected to the Wiser system, PowerTag enables additional functions, such as monitoring electricity exchange rates and using automations (available Q3/2023). The following can also be used as Wiser automation conditions: -Load status (on/off) -Current total power (W) -Daily consumption (over X kWh) -Monthly consumption (over X kWh) Frequency: 50Hz Voltage (3 phase): 380...415 V AC Maximum current: 63A Operating temperature: -25°C...60°C Surge protection (IEC 61010-1): Class III Measurement category: (IEC 61010-2-30): Class III Measurement accuracy: (IEC 61557-12): Class 1 Protection class: IP20, IK05 Radio frequency: 2.4GHz...2.4835GHz Shortest communication interval: 5s Full use of Schneider Electric's Wiser system requires a central unit (CCT501901, Matter certified), the Wiser by SE smartphone application, a user account and internet connection. The use of the system is free of charge. The device is intended for indoor use. It is recommended to install one PowerTag in the application, which appears as "Electricity network" - a meter of the total consumption of the home. Other PowerTags can be added below this to measure other groups.
  • Product number
    6768066

  • Supplier product number:
    R9M70

  • EAN code:
    3606489524821

  • Material class
    S6725B

Specifications
  • Model / Type: direct measurement
  • Bus connection: other
  • Rated voltage (Un) NL: 220-240 V
  • Rated voltage (Un) LL: 380-415 V
  • Polarity: four wires
  • Tariff type: 1-tariff
  • Suitable for: purchase
  • Approval: national
  • Accuracy class: B
  • Frequency: 50-60 Hz
  • Meter type: electronic
  • Width (number of module slots): 3
  • Energy form: active and reactive power
  • Pulse output: none
  • Protection class (IP): IP20
  • Enclosure class (NEMA): 1
  • Expression form: none
  • EEC40 marking: no
  • Backstop: no
  • Installation method: Plug-in technology
  • Lock code: no
  • Calibrated: yes
  • Maximum current (Imax): 63 A
  • Rated current (In): 63 A
  • Measurement type load profile: no
