Tap Corner Box for Sheet Metal Wall Roth 18 Tt + Support Sleeve 28Sp 2016377

€29,75 EUR

Brand: Roth
Delivery time: approx. 1-5 business days.
Shipping €9.90
Product number: 2016377

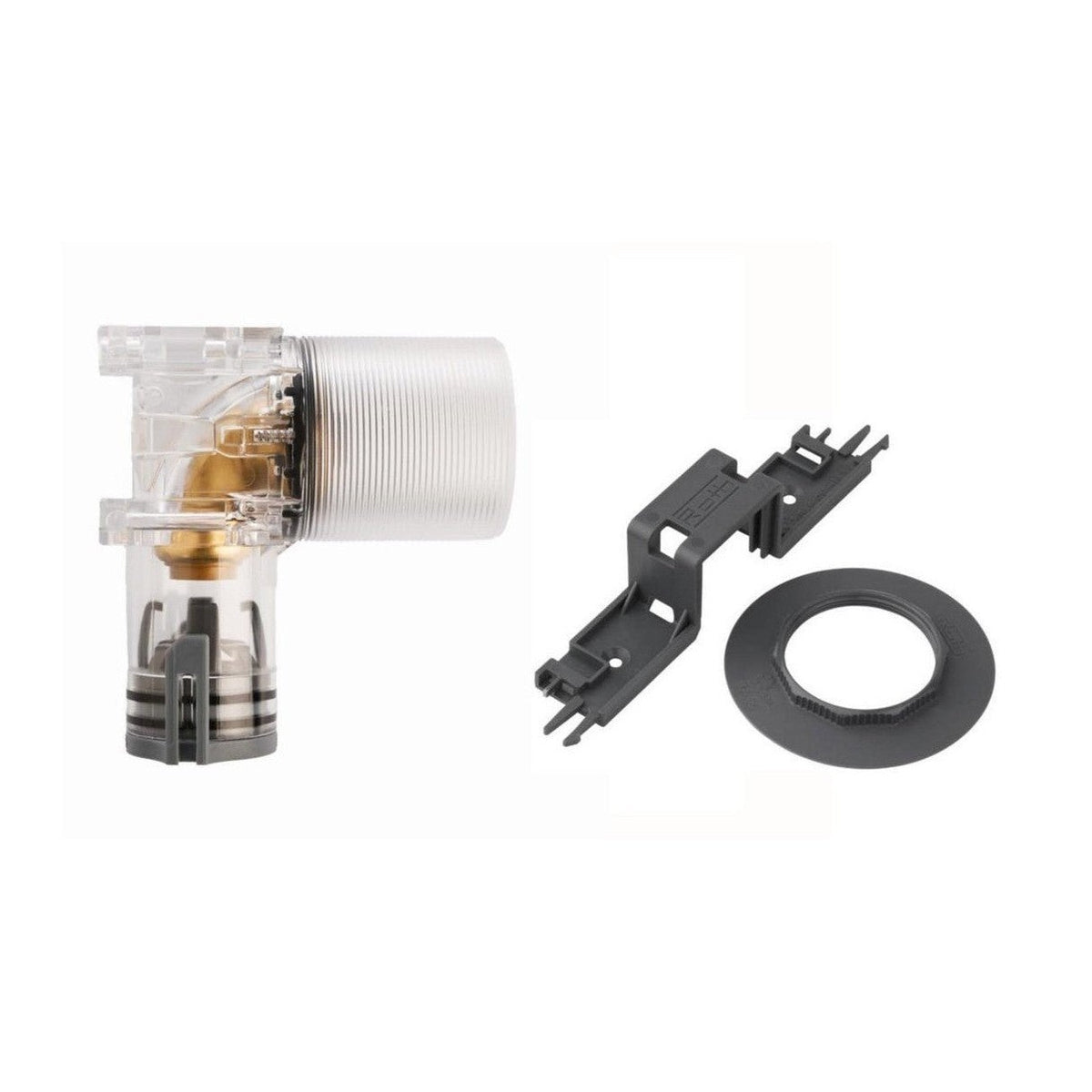

The Roth QuickBox® tap angle box is used to make the wall feed-through leak-proof and the installation replaceable, especially in wet rooms. Supplied factory-assembled with pressure test plug and push-in connector for Roth MultiPex® pipe-to-pipe for sizes 12/20-25, 15/25-28 or 18/28, with sealing flange, installation bracket and support sleeve for Roth MultiPex® pipes. The maximum wall cladding thickness is 45 mm. The diameter of the wall feed-through is 52 mm. The connection dimension of the push-in connector is R15, ½" internal thread.
  • Product number
    2016377

  • Supplier product number:
    17087277.218

  • EAN code:
    5702000123691

  • Material class
    P2017B

Specifications
  • Package sizes: 1 PCS/20 PCS/720 PCS
  • Nominal diameter connection 2: 1/2" (15)
  • Pipe outer diameter connection 1: 18 mm
  • Connection 1: immersion
  • Connection 2: conical internal pipe thread
  • Material quality connection 1: dezincification resistant brass
  • Material quality connection 2: dezincification resistant brass
  • Shape: Angle
  • Flange pressure class: PN 10
  • Maximum operating pressure, 20 °C: 10 bar
  • Model / Type: 1-piece
  • Material connection 1: brass
  • Material connection 2: brass
  • Seal material: EPDM
  • With air screw: no
  • With drain hole: no
  • Covered: no
  • With seals: yes
  • System specific: yes
  • Bending angle: 90 °
  • Main color of the tube part: orange
  • Maximum operating pressure at maximum medium temperature: 6 bar
  • Eccentric: no
