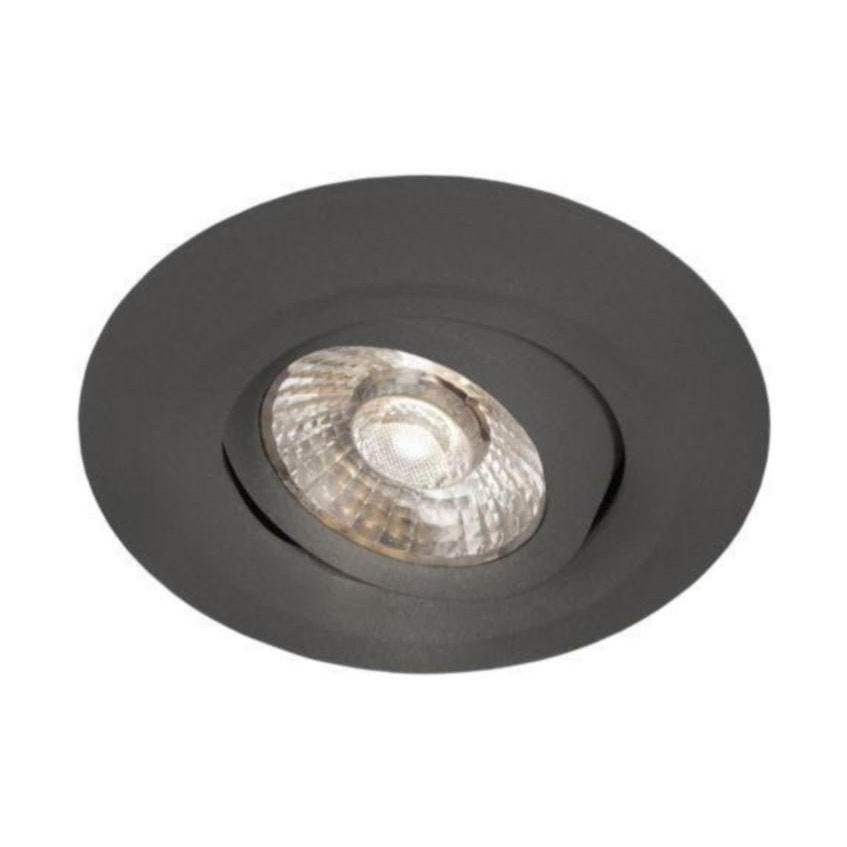

Downlight Hide A Lite Comfort Quick Outdoor Antr. 3K [4523431]

€85,90 EUR

Brand: Hide A Lite
Product number: 4523431
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

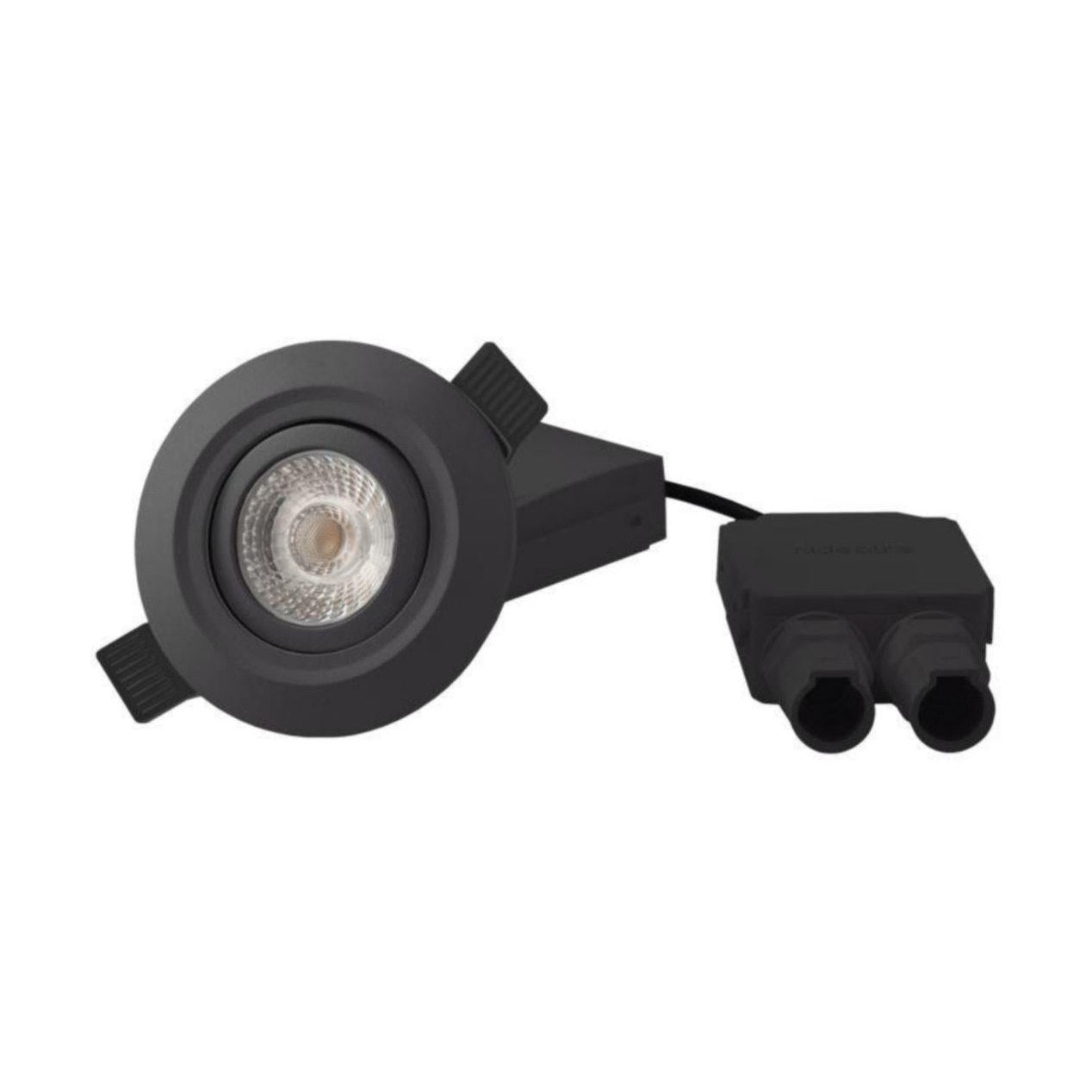

Low-profile and directional outdoor luminaire for the Comfort series, installation height only 40mm. All parts IP44-rated and approved for installation in open ceiling structures or directly against insulation. Available in white, grey and anthracite. Hole 73-85 - perfect for renovation work. Ready to install with phase-dimmable driver, junction box with daisy-chain connector and screwless strain relief for cable and 16mm flexible conduit. Dimmable with many of the most common dimmers on the market.

Product number

4523431
Supplier product number:

7702969
EAN code:

7392971130033
Material class

S4212B

Specifications

Package sizes: 1 PCS/30 PCS
Maximum system power: 6 W
Rated luminous flux according to IEC 62722-2-1: 435 lm
Color temperature range: 3000 K
Frame color: anthracite
Brushed surface: no
Opening angle (defined range): medium wide radius 20-40°
Dimming DALI: no

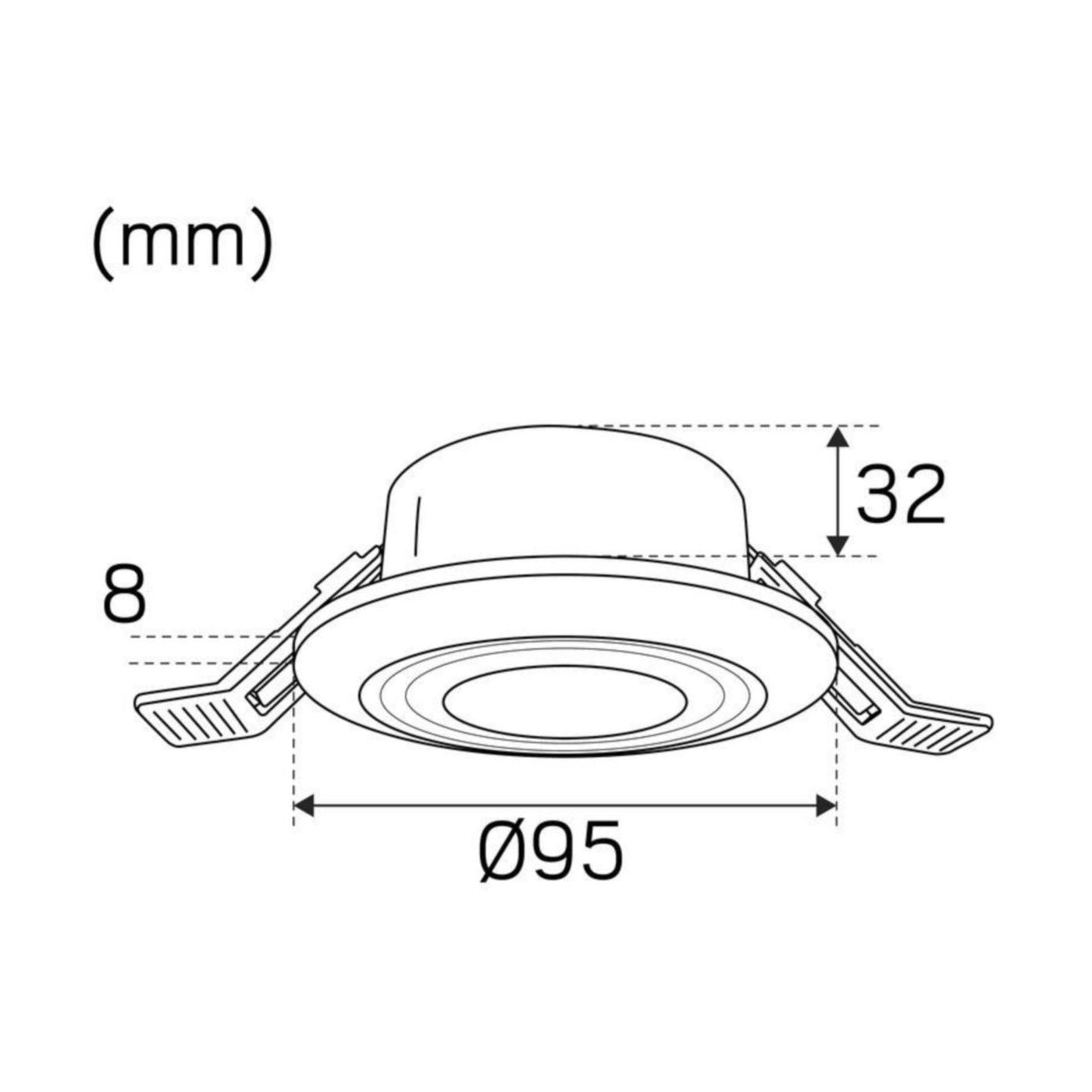

Outer diameter: 95 mm
Fixed height: 32 mm
Height/Depth: 40 mm
Light source type: LED, fixed
Directionality: swivel
Includes lamp: yes
Light color: white
Includes control unit: yes
Driver type: constant current LED driver
Luminous intensity: 920 cd
Reflector: other
Housing/cover material: aluminum
Suitable for terminal work: no
Number of poles: 3
Dimming rising edge control: yes
The surface temperature of the luminaire is limited, class D, standard EN 60598-2-24: no
Push button dimming: no
Dimming Sine Wave Reduction: no
Dimming mains modulation: no
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DMX: no
Dimming DSI: no
Dimming LineSwitch: no
Dimming RF: no
Dimming Zigbee: no
Dimming potentiometer: no
Dimming programmable: no
Manufacturer-specific dimming: no
Ambient temperature rating according to IEC62722-2-1: -20-45 °C
Photobiological safety EN 62471: other
Dimming falling edge control: yes
Glow wire test according to IEC 60695-2-11: none
Cover material: transparent plastic
Protection class (IP): IP44
Dimmable: yes
Lamp holder: none
Conductor cross-section: 1.5 mm²
Light distribution (symmetrical/asymmetrical): symmetrical
Protection class: II
Light distribution: focal lens
Light direction (direct/indirect): direct
Luminaire luminous efficacy: 73 lm/W
Number of lamps/modules: 1
Color rendering index: 80-89
Flush mounting: yes
Bracket installation: no
Suitable for low voltage cable systems: no
Ground/floor installation: no
Hanging installation: no
Terminal rail mounting: no
Transom mounting: no
Surface mounting: no
With light sensor: no
Motion sensor: no
Nominal voltage range: 220-230 V
Voltage type: AC
Lamp life L70B50 Ta=25 °C: 50000 h
Ceiling mounting: yes
Impact resistance class: other
Touch dimming: no
Cabling method: suitable for through wiring
Cross-section of the connected conductors: 0.5-2.5 mm²
Surface protection: powder coated
Color consistency (MacAdam's ellipse): SDCM3
Protecting the luminaire with thermal insulation material possible: yes
Connection method: plug clamp / spring terminal
Luminous flux: 435 lm
LED rated current at constant current: 110 mA
Dimming GPRS: no
Dimming dependent on control device: no
