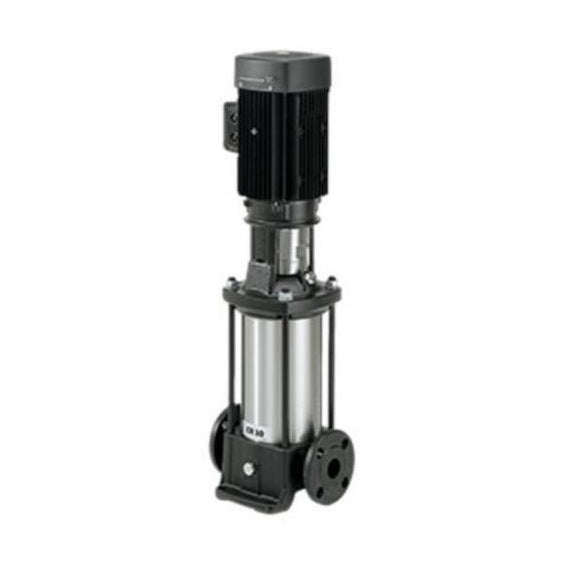

Grundfos Pressure boosting pump Multistage Cr 10-10 [4925424]

€3.272,00 EUR

Brand: Grundfos
Product number: 4925424
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

The Grundfos CR series is a vertical, multistage centrifugal pump with suction and discharge ports at the same level. The pump head and base are made of cast iron. Other wetted parts are made of stainless steel (EN 1.4301). The versatile CR series is suitable for pressure boosting applications, for example in industry or waterworks and in heat recovery systems in building services. Flow range 0-200 m3/h, pressure range 0-40bar.

The extensive range is highly versatile due to its modularity. The product family also includes CRN models made of 1.4408/AISI316, CRI models made of 1.4301/AISI304, and titanium CRT.

The range is available in a variety of shaft seal, rubber material and mains voltage options. The pump is also available with magnetic drive. The pump components can be optimised to meet specific requirements to withstand challenging fluids and extremely demanding conditions.

Product benefits:
- Long-lasting and reliable
- Very efficient
- Very suitable for hot liquids
- Easy to maintain
- Space-saving
- Suitable for slightly corrosive liquids
- Good corrosion resistance
- Low internal pressure losses

Product number

4925424
Supplier product number:

96501219
EAN code:

5700396217734
Material class

P4760B

Specifications

Pump type: 10-10
Weight: 74 kg
Insulation class according to IEC: F
Motor with extended shaft: no
Motor speed control: none
Rated current: 7.9 A
Self-priming: no
Rotational speed: 2917 rpm
Immersion length: 280 mm
Pump height: 280 mm
Protection class (IP): IP55
Frequency: 50Hz
Pump shell material: cast iron
Impeller material quality: stainless steel 304 (1.4301)
Flange shape: round
Impeller material: stainless steel
Inlet connection: flange
Output side connection: flange
Nominal diameter of the inlet side: DN 40
Nominal diameter of the outlet side: DN 40
Number of stages: 3
Motor power (P2): 4 kW
Electrical connection: connectors
Explosion-proof: no
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: no
Interface signal 0-20 mA / 4-20 mA: no
Communication: none
Pump housing material quality: cast iron EN-GJL-200 (GG 20)
Maximum operating pressure: 16 bar
Maximum static height: 102 m
RS-232 interface: no
RS-485 interface: no
With dry-running protection: no
Minimum Efficiency Index (MEI): 0.7
Model / Type: vertical
Motor energy efficiency class: IE3
Volume flow (BEP): 10 m³/h
Standard engine: yes
Potential-free main switch: no
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: no
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: no
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: no
Supports Modbus RTU protocol: no
Supports Modbus TCP protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 800.02 kPa
Inlet flange pressure class: PN 25
Outlet flange pressure class: PN 25
Radio standard 2G: no
Radio standard 3G: no
Radio standard 4G: no
Bluetooth standard: no
Supports PROFIBUS protocol: no
