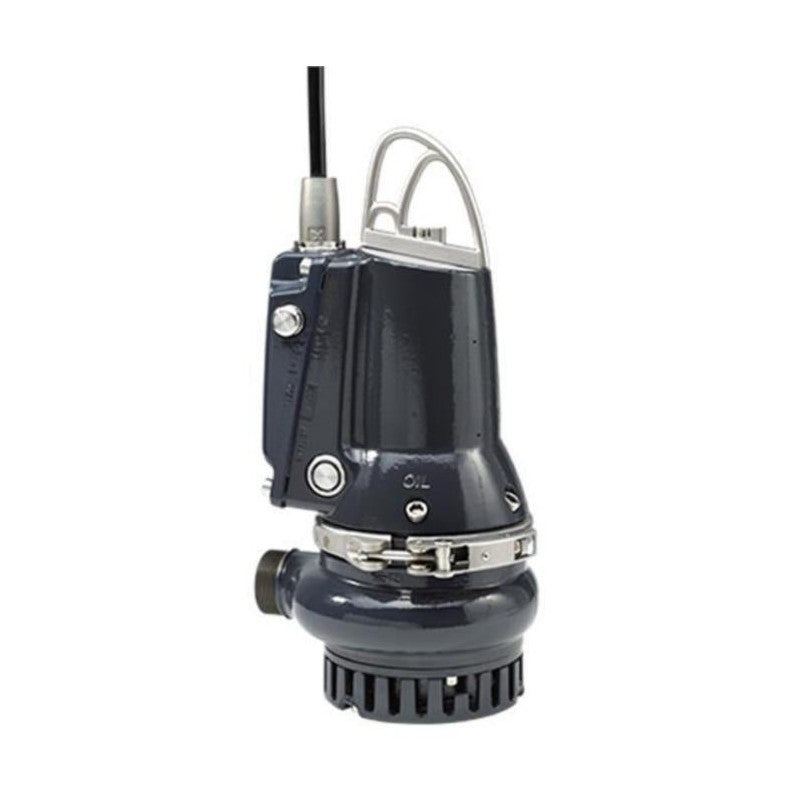

Drain pump Dp10.50.09.E.2.50B [4822614]

€2.899,90 EUR

  • Brand: Grundfos
  • Product number: 4822614
  • Delivery time: approx. 5-10 business days.
  • Shipping cost: €9.90 or
  • Free pickup, no hidden costs.

More information

The GRUNDFOS DP AUTOADAPT pump is a portable pump for domestic and industrial use.

The pump has a multi-vane semi-open impeller and a 10 mm free opening. It is suitable for drainage and surface water, groundwater, industrial process water that does not contain solids and fibers.
  • Product number
    4822614

  • Supplier product number:
    96877478

  • EAN code:
    5700312521143

  • Material class
    P4803B

Specifications
  • Function: DP10.50.09.E.2.50B
  • Rated current: 2.8 A
  • Rotational speed: 2870 rpm
  • Pump height: 493 mm
  • Pump diameter: 218 mm
  • Insulation class according to IEC: F
  • Electrical connection: cabling
  • Pumping circuit: none
  • Maximum diameter of mounting parts: 10 mm
  • Protection class (IP): IP68
  • Weight: 47.2 kg
  • Outlet connection: conical external pipe thread
  • Nominal diameter of the outlet side: DN 50
  • Output side standard: ISO 7-1 / EN 10226-1
  • Number of stages: 3
  • Motor power (P2): 0.9 kW
  • Explosion-proof: no
  • Flange shape: round
  • Frequency: 50Hz
  • Motor input power (P1): 1.4 kW
  • Suitable for dry installation: no
  • Cable length: 10 m
  • Impeller material: cast iron
  • Motor shell material: cast iron
  • Pump shell material: cast iron
  • Impeller material quality: cast iron EN-GJS-500-7 (GGG 50)
  • Motor shell material quality: cast iron EN-GJL-200 (GG 20)
  • Pump housing material quality: cast iron EN-GJL-200 (GG 20)
  • Maximum operating pressure: 6 bar
  • Outlet flow (maximum): 42.5 m³/h
  • Maximum static height: 13.8 m
  • With dry-running protection: yes
  • Rated operating mode: S3
  • Volume flow (BEP): 20 m³/h
  • Disconnect device: no
  • Immersion depth: 10 m
  • Pressure at volumetric flow (BEP): 85 kPa
  • Outlet flange pressure class: PN 10
  • Motor speed control: none
