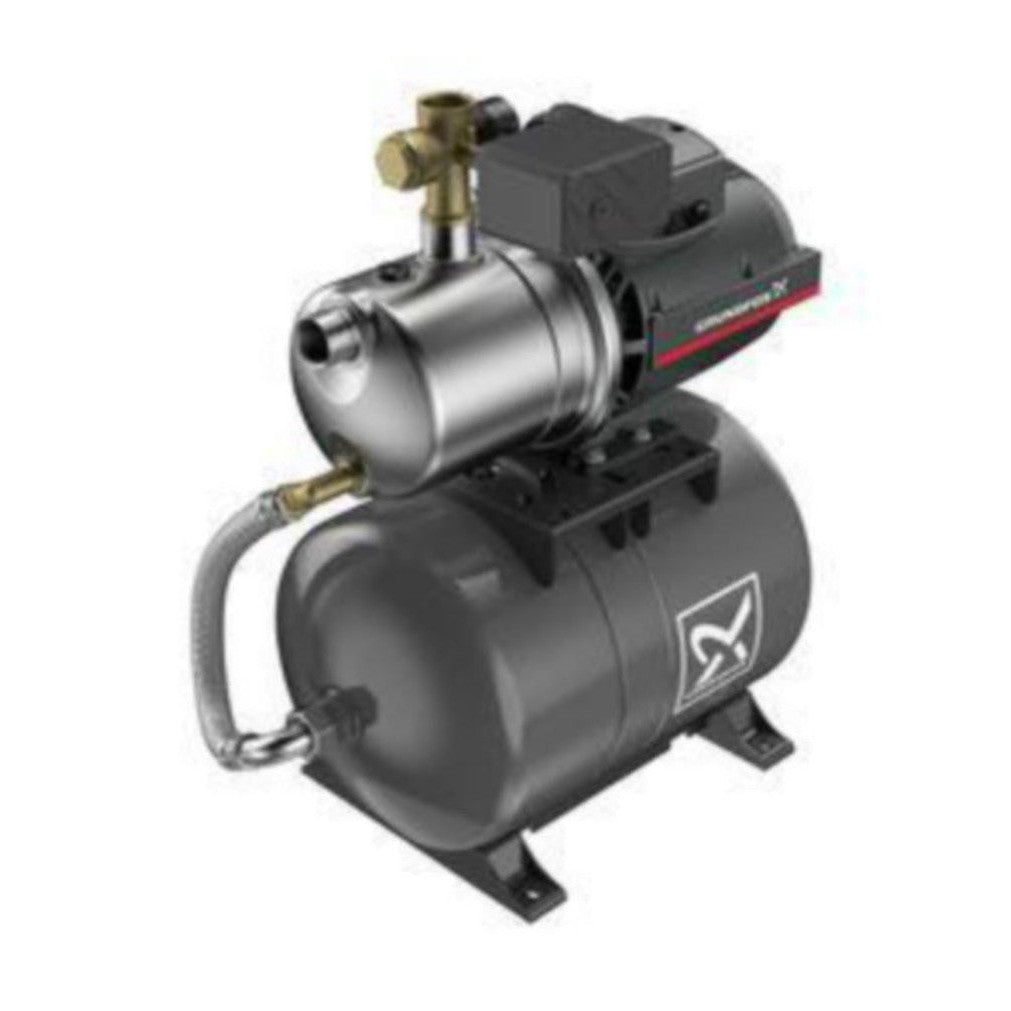

Water dispenser 99463875 Grundfos JP PT 4-47 PT-H 20L 1-V [4732540]

€417,90 EUR

  • Brand: Grundfos
  • Product number: LVI-4732540
  • Delivery time: approx. 1-5 business days
  • Shipping €9.90 or
  • Free pickup, no hidden costs

More information:

Replaces product: LVI-4732506

Grundfos JP PT-H: water pump with pressure tank. Affordable and reliable water extraction from lakes and wells with a suction capacity of up to 8 m. The pump is equipped with a 20 liter, highly durable diaphragm pressure tank.
The JP pump is easy to install wherever you want – on the edge of a lake, next to a water well, or in a greenhouse, as long as it is protected from the rain.

Product benefits:
-The workhorse of pumps
-Self-priming, single-cycle water dispenser
-Very durable diaphragm pressure tank
-The pump housing is made of stainless steel making the pump very reliable and durable
-Filling with semen is quick and easy

Applications:
-For household water intake in gardens, summer cottages and sparsely populated areas
-For water extraction from tire wells, lakes and water tanks
-For gardening

Principle:
-The pressure tank stores pressurized water ready for use, ensuring that the pump does not start during periods of lower consumption.
-Built-in pressure switch registers consumption fluctuations by reading the pressure drop in the tank
-Automatic start-stop function controlled by pressure switch and pressure tank
-Pressure tank reduces starts and stops
-When the tap is opened, water passes through the pump.
-When the pump is pressurized, water flows through the 5-way valve.
-When the tap is closed, the tank fills with pressurized water before the pump stops.
-JP PT-H does not include a check valve. It must be purchased separately and installed to prevent water from flowing back and the pump from starting due to pressure loss.

Product number: 4732540

Supplier product number: 99463875

EAN code: 5713829542457

Material class P47100

Specifications

  • Brand: Grundfos
  • Number of pumps: 1
  • Width: 263mm
  • Height: 576mm
  • Insulation class according to IEC: F
  • Suitable for tap water: yes
  • Length: 493
  • Motor speed control: none
  • Suction installation: yes
  • Rated current: 3.8
  • Volume flow (BEP): 4
  • Rotation speed: 2800
  • Suitable for sprinkler/irrigation: yes
  • Pump shell material: stainless steel
  • With bypass pipe: no
  • Pump housing material quality: stainless steel 304 (1.4301)
  • Input connection: other
  • Output side connection: other
  • Nominal diameter of inlet side: 1" (25)
  • Nominal diameter of the outlet side: 1" (25)
  • Input standard: ISO 228-1
  • Output side standard: ISO 228-1
  • Number of stages: 1
  • Motor power (P2): 0.56
  • Electrical connection: connection cable with plug
  • Frequency: 50Hz
  • Motor input power (P1): 0.85
  • Interface PT100 / PT1000 / PTC: no
  • Interface PWM (Pulse Width Modulation): no
  • Pulse counter interface: no
  • Interface signal 0-10 V / 2-10 V: no
  • Interface signal 0-20 mA / 4-20 mA: no
  • Communication: none
  • Suitable for rainwater: yes
  • Cable length: 1.5
  • Tank material: plastic
  • Impeller material: polypropylene
  • Tank material quality: other
  • Impeller material quality: other
  • Maximum operating pressure: 6
  • Outflow (maximum): 4
  • Static maximum height: 47
  • RS-232 interface: no
  • RS-485 interface: no
  • Potential-free main switch: no
  • Pump protection level (IP): IP44
  • Radio standard 2G / 3G / 4G: no
  • Radio standard 5G: no
  • Bluetooth standard: no
  • WLAN 802.11 standard: no
  • Cabinet IP rating: IP44
  • Supports BACnet IP protocol: no
  • Supports BACnet MS/TP protocol: no
  • Supports CAN/CANOpen protocol: no
  • Supports Ethernet/IP protocol: no
  • Supports KNX protocol: no
  • Supports LIN Bus protocol: no
  • Supports LON/LONworks protocol: no
  • Supports Modbus RTU protocol: no
  • Supports Modbus TCP protocol: no
  • Supports PROFIBUS protocol: no
  • Supports PROFINET IO protocol: no
  • Pressure at volumetric flow (BEP): 401.97
