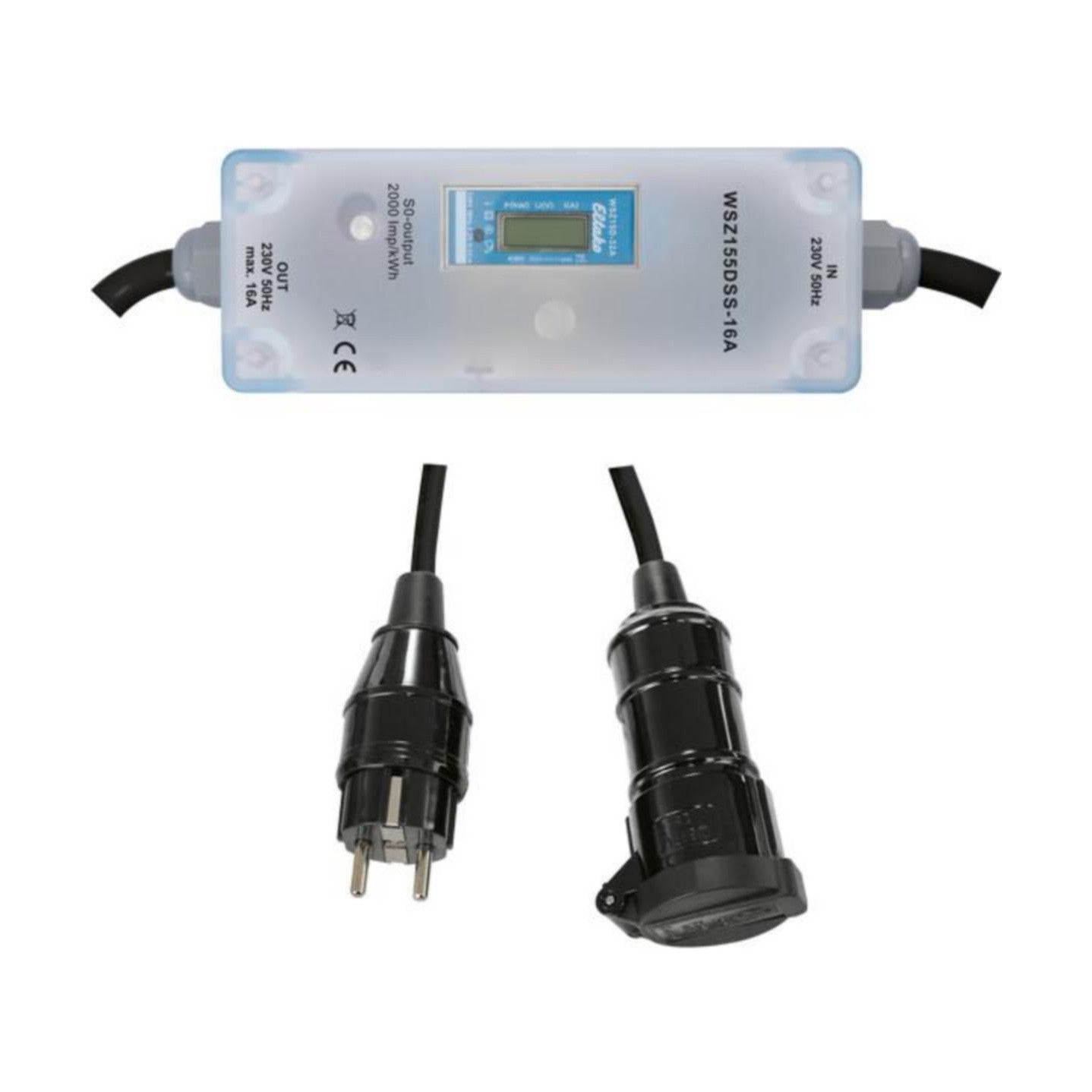

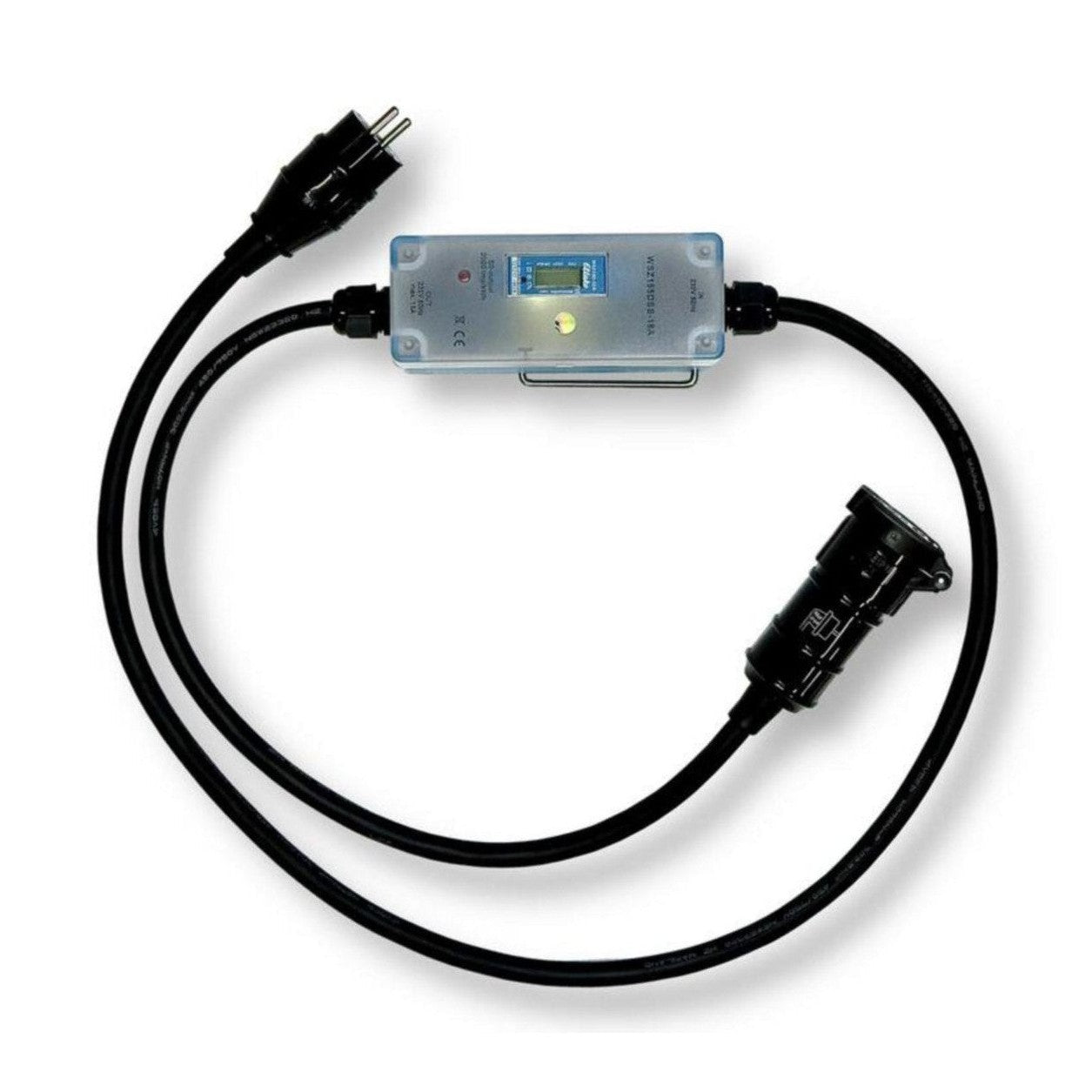

Energy Meter Panel Eltako Swing Meter, 1V, Schuko [6712652]

Portable 1-phase energy meter with Schuko (Type F) male and female plugs. All energy meters in the collection are MID certified, meaning the meter reading can be used as the basis for billing.

Suitable for indoor and outdoor use.
With metal hanging loop (removable).
Maximum current 16A.
Standby consumption only 0.4W.
Case dimensions 155 x 60 x 82mm.
Connection cable 1.5 m (incl. plugs).
Accuracy class B (1%).
MID approved.
This portable single-phase energy meter measures active energy between input and output.
The device's own consumption, which is only 0.4 watts at most, is not taken into account in the measurements and is not shown on the display.
The device display switches between total consumption (kWh) and current consumption (kWh) every 10 seconds.
The starting current is 20mA.
The display reading can only be read when the power, i.e. the male plug, is connected. However, the consumption is always saved in the meter's non-volatile memory when unplugged, and the previous reading is always displayed immediately after power is restored.
The digital display has 7 digits.
Two decimal places are displayed up to 99999.99 kWh, above 100000.0 kWh only one decimal place is displayed.
Power consumption is indicated by an LED that flashes at a rate of 2000 times/kWh.
