Energy Meter Din Series 15 2-Way,3X80A,4-Din [6712647]

€223,90 EUR

Brand: Eltako
Product number: 6712647
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

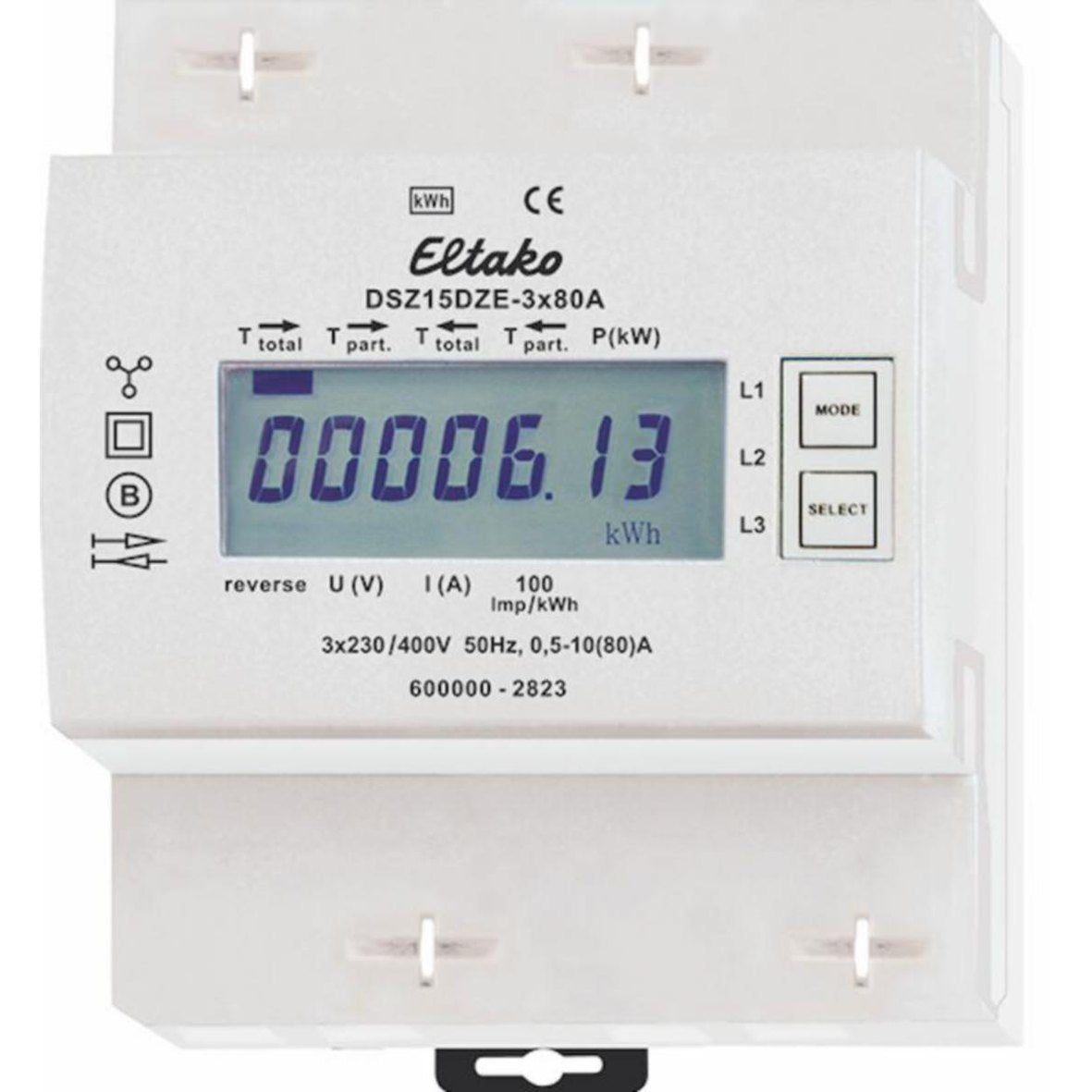

Bidirectional three-phase energy meter, for example for solar panel installations.

The LCD display shows the total energy consumption per consumption and yield (kWh), the total consumption per consumption and yield (kWh) stored in the resettable memory, the instantaneous power consumption P (kW), the instantaneous voltage U (V) and the instantaneous current I (A) per phase.

In the normal display, the values obtained from the energy measurement are balanced and the display shows the sum of the readings in both directions.

Modular unit for rail mounting according to DIN-EN 60715 TH35.

4 modules = width 70mm, depth 58mm.

Accuracy class B (1%).

With S0 interface.

A direct-measuring three-phase current meter measures active energy based on the electrical currents flowing between inputs and outputs.

The device's own consumption, which is only 0.5 watts at most, or the active power, which is 0.5 watts per wire, is not taken into account in the measurements and is not shown on the display.

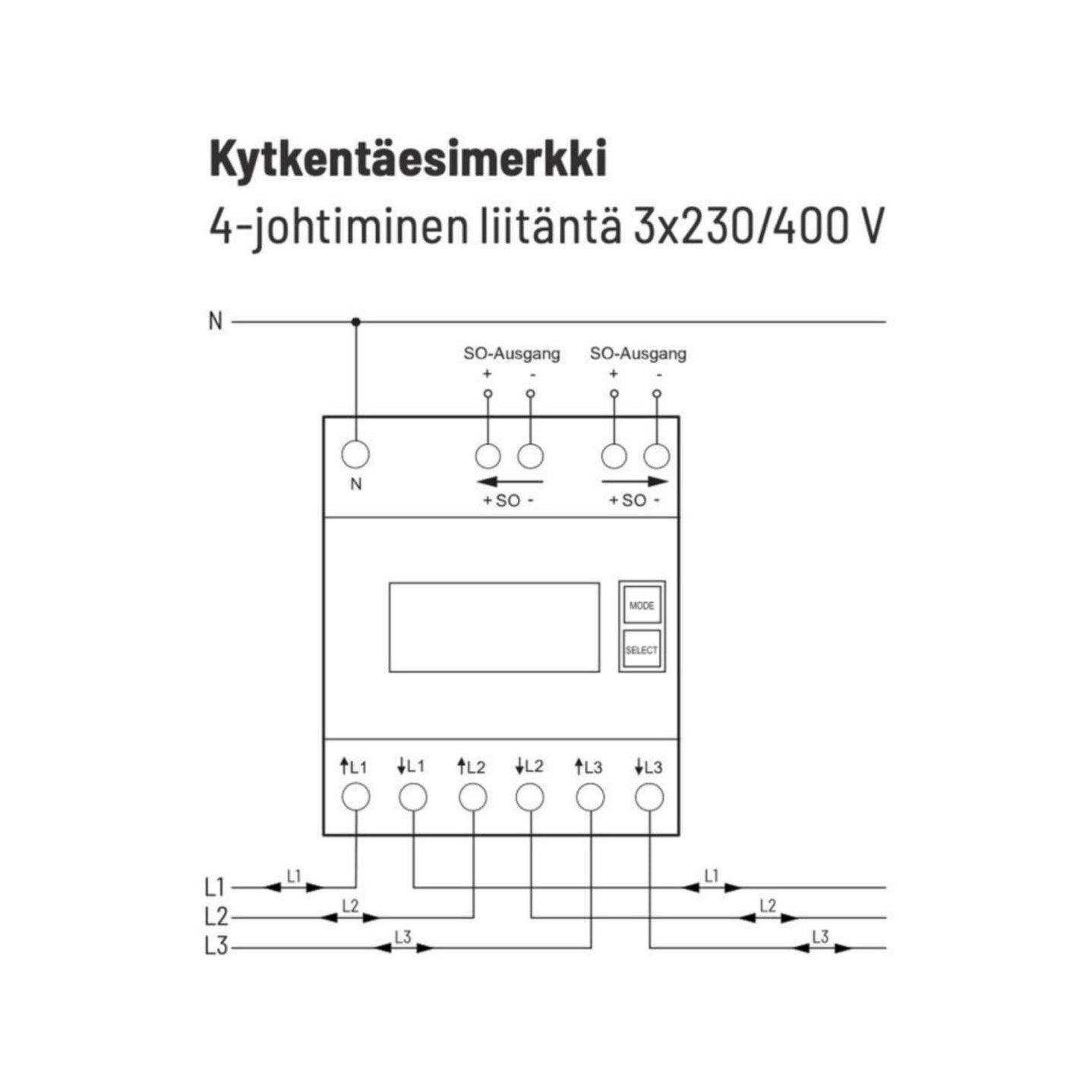

1, 2 or 3 phase conductors with a maximum current of 80A can be connected to the meter.

The starting current is 40mA.

The N connector must always be connected. The energy consumption and energy output values are stored in non-volatile memory and are displayed again immediately after a power failure.

The 7-segment LCD display can also be read without power supply twice within two weeks.

The power consumption is indicated by a bar on the display that flashes at a rate of 100 times/kWh.

On the right side of the display are the MODE and SELECT buttons. Press them to navigate the menu as described in the user manual.

Error message (false). When a phase conductor is missing, 'false' appears on the display and the phase conductor in question is shown on the display.

Product number

6712647
Supplier product number:

DSZ15DZE-3x80A
EAN code:

4010312501894
Material class

S2629B
