Installation/Insulation board Devicell Dry 5M2 T [8109400]

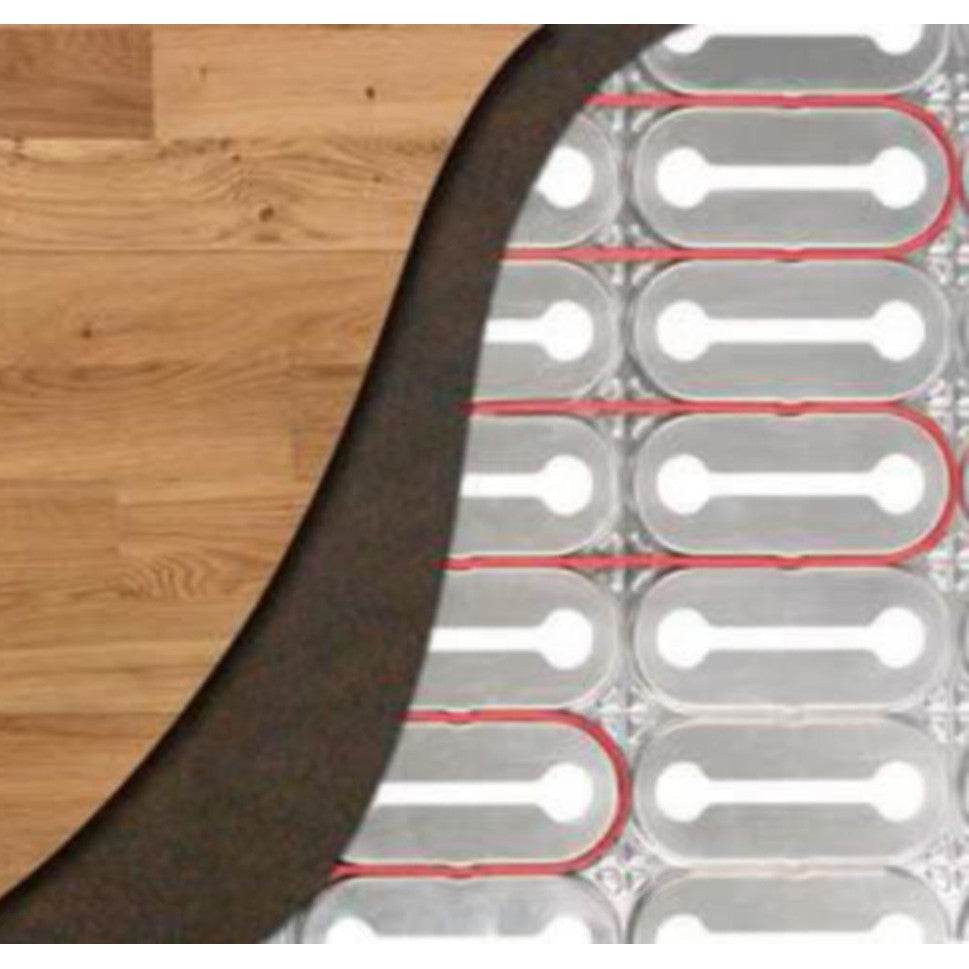

Installation and insulation board for renovation and new constructionDEVIcell™ installation and insulation board is suitable for dry spaces directly under laminate or wooden floors. DEVIcell™ enables quick and easy installation of underfloor heating directly under parquet, laminate or wooden flooring. The size of the DEVIcell™ board is 50 cm x 100 cm and the thickness is only 13 mm. The DEVIcell™ board consists of a 12 mm thick heat-insulating EPS insulation board on the bottom and a heat-reflecting aluminum board on the top, approximately one millimeter thick. Thanks to its structure, heat is distributed evenly on the floor, keeping the room air comfortable. Heat is not wasted, because the insulation effectively insulates the heat losses on the bottom and at the same time the aluminum reflects the heat upwards. This means that the temperature is raised to the desired temperature quickly. The boards are suitable for DEVIflex™ 6T (6 W/m) and 10T (10 W/m) heating cables. One square meter of panels requires 10 meters of heating cable. This results in a floor power of 60 W/m² to 100 W/m², which provides the ideal heating power for parquet and laminate floors. When choosing a cable, it is recommended to take into account the change in cable requirements due to the modification of the panels. The package sizes of Devicell™ panels are 2 m², 5 m² and 50 m². Concrete or board floors - parquet or laminate coating. DEVIcell™ installation and insulation panels are installed on top of the existing floor and the panels are fastened to each other with the plastic locks provided. Next, the heating cables are pressed into the grooves of the panel, parquet or a substrate recommended by the laminate manufacturer is spread on top and finally the parquet or laminate is installed in place. Rossi floors coating board floor Non-sag thermal insulation is installed between the brackets k 600. DEVIcell™ installation and insulation boards are installed between the brackets directly on the insulation and the boards are fastened to each other with the plastic locks provided. The heating cables are pressed into the grooves of the board and, if necessary, the cable is covered with aluminum tape. Finally, the board floor is installed in the floor screeds or brackets. The best efficiency is achieved when there is no air space between the DEVIcell™ insulation board and the floor board, but they are in contact with each other. Not suitable for installation under casting or tiling. Technical data: Structure: Aluminum-coated polystyrene U-value: 3 W/m²K Board dimensions 50 x 100 cm (0.5 m²) Cable consumption: 10 m / m² Thickness: 13 mm Aluminum thickness: 0.8 mm Insulation: 12 mm fire-resistant EPS Compressive strength: 3670 kg / m² Maximum ambient temperature: 80 °C
