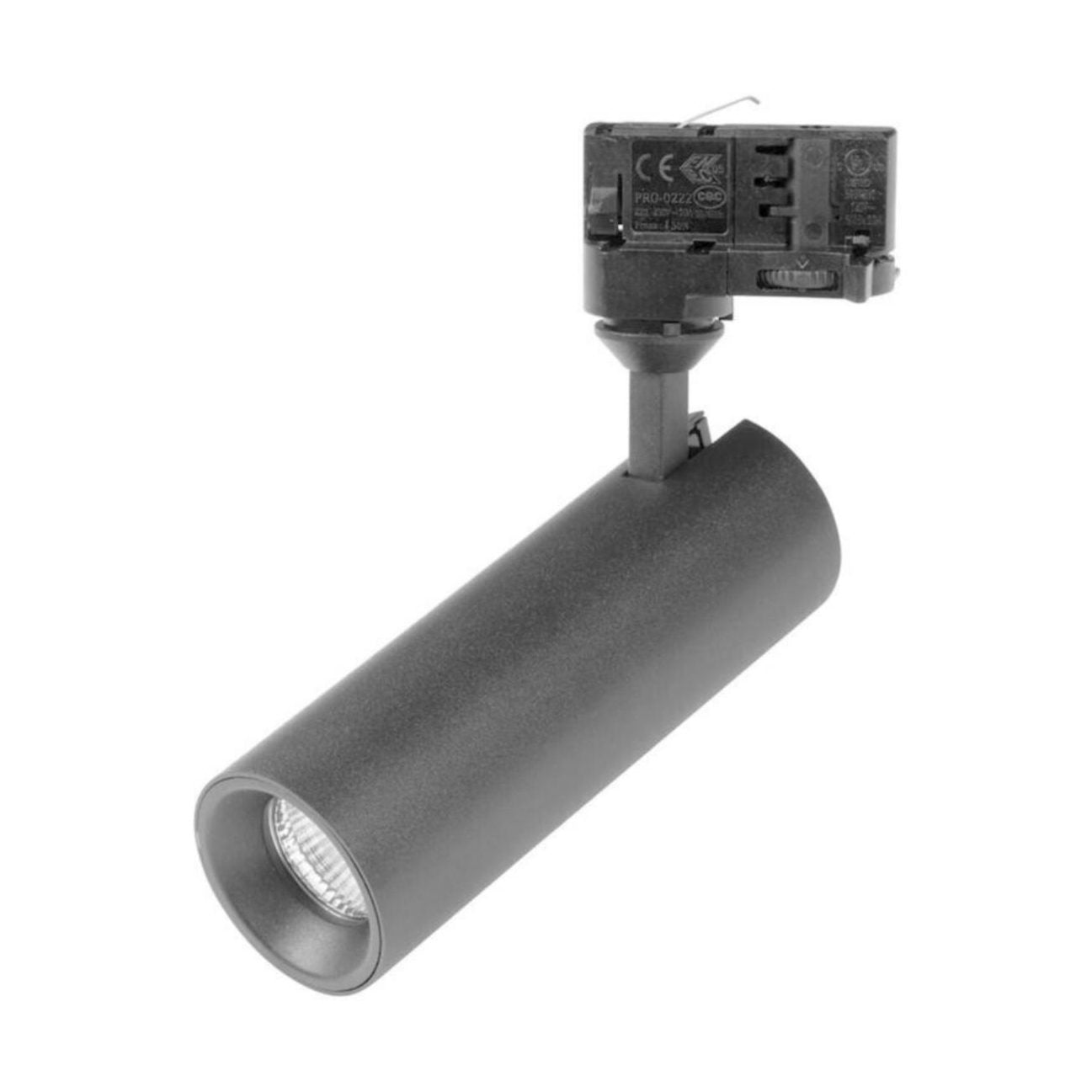

Spotlight Spot-On Ip20 13W 830/840 36D Dim Bk [4146591]

€80,90 EUR

Brand: Airam pro
Product number: 4146591
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

Spot-OnThe elegant Spot-On with color temperature change is ideal for lighting cafes, restaurants and small commercial spaces. The dimmable spotlight provides versatile lighting options. With color temperature choices and different dimming levels, you can create a calm and intimate atmosphere in the same space and emphasize and highlight desired details. The lamps are made of high-quality materials and their color rendering ability is excellent. You can choose a black or white model with either a color temperature change and dimming via a switch or a color temperature adjustment that becomes warmer when dimmed.

Body in injection-molded aluminum. Diffuser in acrylic. Faceted aluminum reflector, 36°.
White, RAL 9010 and black, RAL 9005.
Protection class I.
Installation on a 3-phase contact rail.
Compatible 3-phase contact rails: Global Pro (formerly Nokia), XTS, XTTS and XTSC for 3-circuit rails, Erco, Iguzzini, Unipro T3 and Eutrac.
Surface mounting possible with adapter box 1452093 and 1453093, to be ordered separately.
Installation height 3–5 m.
Color temperatures 3000 K and 4000 K can be changed from the luminaire. In DTW models, the color temperature is adjusted from 3000 to 1800 K when dimming. CRI > 90 / Ra > 90.
IP20.
IK02.
Fixed LED 13 W / 900 lm.
MacAdam 3 SDCM.
Dimmable.
Operating environment temperature 0 … 25 °C.
Useful life L70 100,000 (Ta25°C).
Useful life L80 65,000 (Ta25°C).
The luminaire comes with a honeycomb sunshade and two alternative reflectors to produce a narrower light beam (12D and 24D).

Product number

4146591
Supplier product number:

A1SPOA
EAN code:

6435200275899
Material class

S4107B

Specifications

Energy label: G
Maximum system power: 13 W
Rated luminous flux according to IEC 62722-2-1: 900 lm
Color temperature range: 3000-4000 K
Frame color: black
Housing/cover material: aluminum
Driver type: constant current LED driver
Includes control unit: yes
Outer diameter: 55 mm
Length : 165mm
Opening angle (defined range): medium wide radius 20-40°
Protection class (IP): IP20
Protection class (IP), front: other
Protection class (IP), rear side: IP20
Protection class: I
Reflector: high-gloss
Color rendering index: 90-100
Directionality: rotating and swiveling
Light color: white
The surface temperature of the luminaire is limited, class D, standard EN 60598-2-24: no
Light distribution (symmetrical/asymmetrical): symmetrical
Light source type: LED, fixed
Suitable for terminal work: no
Cross-section of connected conductors: 1-2.5 mm²
Number of poles: 3
Lumen maintenance, average service life 35,000 h, ambient temperature 25 °C: 80 %
Lumen maintenance, average service life 50,000 h, ambient temperature 25 °C: 70 %
Brushed surface: no
Width : 55mm
Push button dimming: no
Dimmable: yes
Dimming Sine Wave Reduction: no
Dimming mains modulation: no
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DALI-2: no
Dimming DMX: no
Dimming DSI: no
Dimming LineSwitch: no
Dimming RF: no
Dimming Zigbee: no
Dimming rising edge control: yes
Dimming falling edge control: yes
Touch dimming: no
Dimming potentiometer: no
Dimming programmable: no
Manufacturer-specific dimming: no
Total Harmonic Distortion (THD): 20 %
Power factor: 0.9
Failure rate, average service life 35,000 h, ambient temperature 25 °C: 5 %
Failure rate, average service life 50,000 h, ambient temperature 25 °C: 10 %
Flicker value Pst LM: 1
Photobiological safety EN 62471: RG0
Color consistency (MacAdam's ellipse): SDCM3
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Height/Depth: 165 mm
Adjustable light distribution: stepwise
Adjustable color temperature: stepwise
Amazon Alexa compatible: no
Apple HomeKit compatible: no
Google Assistant compatible: no
Constant light output control (CLO): no
Lamp holder: other
Conductor cross-section: 0.75 mm²
Adjustable luminous flux (lumen): no
Light distribution: reflector
Luminous intensity: 2900 cd
Luminaire luminous efficacy: 70 lm/W
Light direction (direct/indirect): direct
Number of lamps/modules: 1
Flush mounting: no
Bracket installation: no
Suitable for lamp power: 13 W
Suitable for low voltage cable systems: no
Ground/floor installation: no
Hanging installation: no
Terminal rail mounting: yes
Ceiling mounting: yes
Transom mounting: no
Surface mounting: no
Cover material: transparent plastic
Maximum number of lamps, circuit breaker B16: 90
Maximum number of luminaires, circuit breaker C16: 182
Includes lamp: yes
With light sensor: no
Motion sensor: no
IFTTT support: no
Nominal voltage range: 220-240 V
Lamp life L70B50 Ta=25 °C: 100000 h
Ambient temperature rating according to IEC62722-2-1: 0-25 °C
Impact resistance class: IK02
Voltage type: AC
Stroboscopic effect measurement value SVM: 0.4
Cabling method: terminated
Replaceable ballast: yes
Wall mounting: yes
Surface protection: powder coated
Bluetooth controllable: no
Light source energy efficiency class (EU regulation 2019/2015): G
Rated current range: 300 mA
Reflector color: silver
Connection method: power rail adapter
Compatible with Casambi system: no
Contains products compliant with 2019/2020/EU: yes
Includes presence sensor: no
Backup power system: none
Emergency operations monitoring system: none
Luminous intensity: 2900 cd
Total Harmonic Distortion (THD): 20
LED rated current at constant current: 300 mA
Lamp life L80B10 Ta=25 °C: 35000 h
Luminaire efficiency: 70 lm/W
Rated luminous flux of the luminaire: 900 lm
Without dimming function: no
