Downlight Airam Compact Outdoor IP65 840 white [4146547]

€39,80 EUR

Brand: Airam
Product number: LVI-4146547
Delivery time: approx. 1-5 business days
Shipping cost: €9.90 or
Free pickup, no hidden costs

Compact Outdoor Compact Outdoor is a fully IP65 rated, directional downlight series. The luminaires are particularly suitable for damp spaces and exterior surfaces of buildings, eaves and sparse boardwork, and terrace roof structures. Color temperatures 3000 K and 4000 K. The luminaire is dimmable.

Aluminum frame, acrylic diffuser.
White powder coating, RAL 9010. Black powder coating, RAL 9005.
Protection class II.

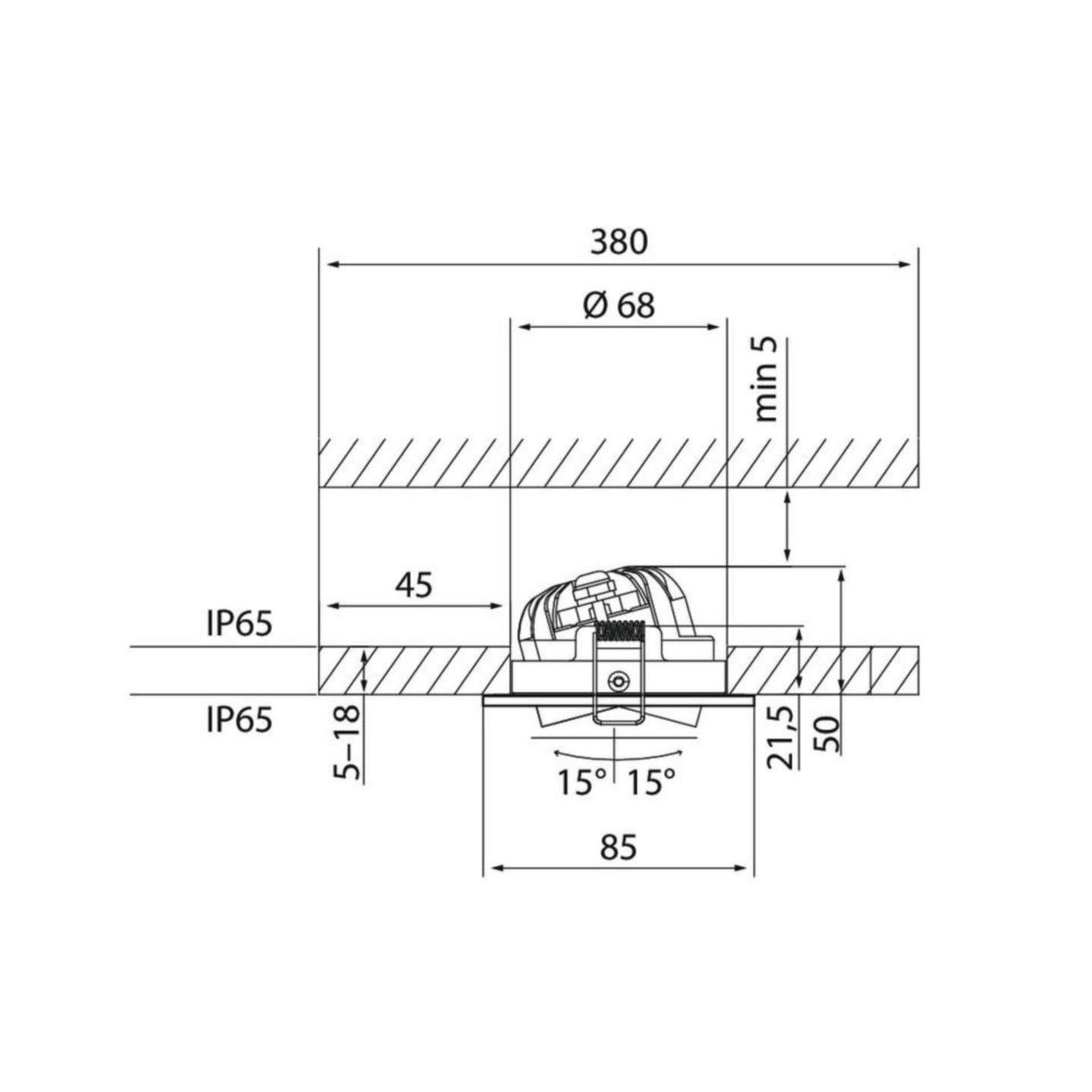

Recessed installation in the ceiling.
Connection cable 2 x 0.75 mm2. To be connected in a separate box.
Installation height 2–4 m.
Adjustable, rotates +/-15 degrees.
Color temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65/IP65.
IK03.
Fixed LED 5 W / 500 lm.
Dimming: rising and falling edge control.
Operating environment temperature -20 … 25 °C.
Useful life L70 100,000 h.
Useful life L80 65,000 h.
Power supply lifespan 50,000 h.

Product number

4146547
Supplier product number:

A1COMA
EAN code:

6435200273413
Material class

S41070

Specifications

Energy label: E
Maximum system power: 5 W
Rated luminous flux according to IEC 62722-2-1: 500 lm
Color temperature range: 4000 K
Body color: white
Brushed surface: no
Opening angle (defined range): medium wide radius 20-40°
Dimming DALI: no
Dimming DALI-2: no
Outer diameter: 85 mm
Immersion diameter: 68 mm
Embedding width: 68 mm
Fixed height: 2000-4000 mm
Insertion length: 68 mm
Height/Depth: 55 mm
Light source type: LED, fixed
Directionality: swivel
Includes lamp: yes
Light color: white
Includes control unit: yes
Driver type: constant current LED driver
Reflector: high-gloss
Housing/cover material: aluminum
Suitable for terminal work: no
Number of poles: 2
Dimming rising edge control: yes
The surface temperature of the luminaire is limited, class D, standard EN 60598-2-24: no
Width : 85mm
Push button dimming: no
Dimming Sine Wave Reduction: no
Dimming mains modulation: no
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DMX: no
Dimming DSI: no
Dimming LineSwitch: no
Dimming RF: no
Dimming Zigbee: no
Dimming potentiometer: no
Dimming programmable: no
Manufacturer-specific dimming: no
Ambient design temperature according to IEC62722-2-1: -20-25 °C
Total Harmonic Distortion (THD): 20 %
Power factor: 0.9
Photobiological safety EN 62471: RG0
Dimming falling edge control: yes
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Cover material: transparent plastic
Protection class (IP): IP65
Dimmable: yes
Protection class (IP), front: IP65
Protection class (IP), rear side: other
Lamp holder: other
Conductor cross-section: 0.75 mm²
Light distribution (symmetrical/asymmetrical): symmetrical
Protection class: II
Light distribution: reflector
Light direction (direct/indirect): direct
Luminaire luminous efficacy: 100 lm/W
Number of lamps/modules: 1
Color rendering index: 80-89
Flush mounting: yes
Bracket installation: no
Suitable for lamp power: 5 W
Suitable for low voltage cable systems: no
Ground/floor installation: no
Hanging installation: no
Terminal rail mounting: no
Transom mounting: no
Wall mounting: no
Surface mounting: no
Length : 85mm
With light sensor: no
Motion sensor: no
Nominal voltage range: 220-240 V
Voltage type: AC
Lamp life L70B50 Ta=25 °C: 100000 h
Ceiling mounting: yes
Impact resistance class: IK03
Touch dimming: no
Cabling method: terminated
Cross-section of the connected conductors: 0.75-2.5 mm²
Surface protection: powder coated
Color consistency (MacAdam's ellipse): SDCM3
Protecting the luminaire with thermal insulation material possible: no
Lumen maintenance, average service life 35,000 h, ambient temperature 25 °C: 80 %
Lumen maintenance, average service life 50,000 h, ambient temperature 25 °C: 70 %
Failure rate, average service life 35,000 h, ambient temperature 25 °C: 5 %
Failure rate, average service life 50,000 h, ambient temperature 25 °C: 10 %
Flicker value Pst LM: 1
Adjustable light distribution: no
Adjustable color temperature: no
Amazon Alexa compatible: no
Apple HomeKit compatible: no
Google Assistant compatible: no
Constant light output control (CLO): no
Adjustable luminous flux (lumen): no
Maximum number of lamps, circuit breaker B16: 100
Maximum number of luminaires, circuit breaker C16: 200
IFTTT support: no
Stroboscopic effect measurement value SVM: 0.4
Glare rating (UGR): 22
Replaceable ballast: yes
Bluetooth controllable: no
Light source energy efficiency class (EU regulation 2019/2015): E
Reflector color: silver
Rated current range: 120 mA
Connection method: plug clamp / spring terminal
Compatible with Casambi system: no
Contains products compliant with 2019/2020/EU: yes
Includes presence sensor: no
Backup power system: none
Emergency operations monitoring system: none
Total Harmonic Distortion (THD): 20
Luminous flux: 500 lm
Embedding width: 68 mm
LED rated current at constant current: 120 mA
Insertion length: 68 mm
Structural embedment depth: 52 mm
Luminaire efficiency: 100 lm/W
Rated luminous flux of the luminaire: 500 lm
Without dimming function: no
Dimming GPRS: no
Integrated backup power supply: no
Dimming dependent on control device: no
