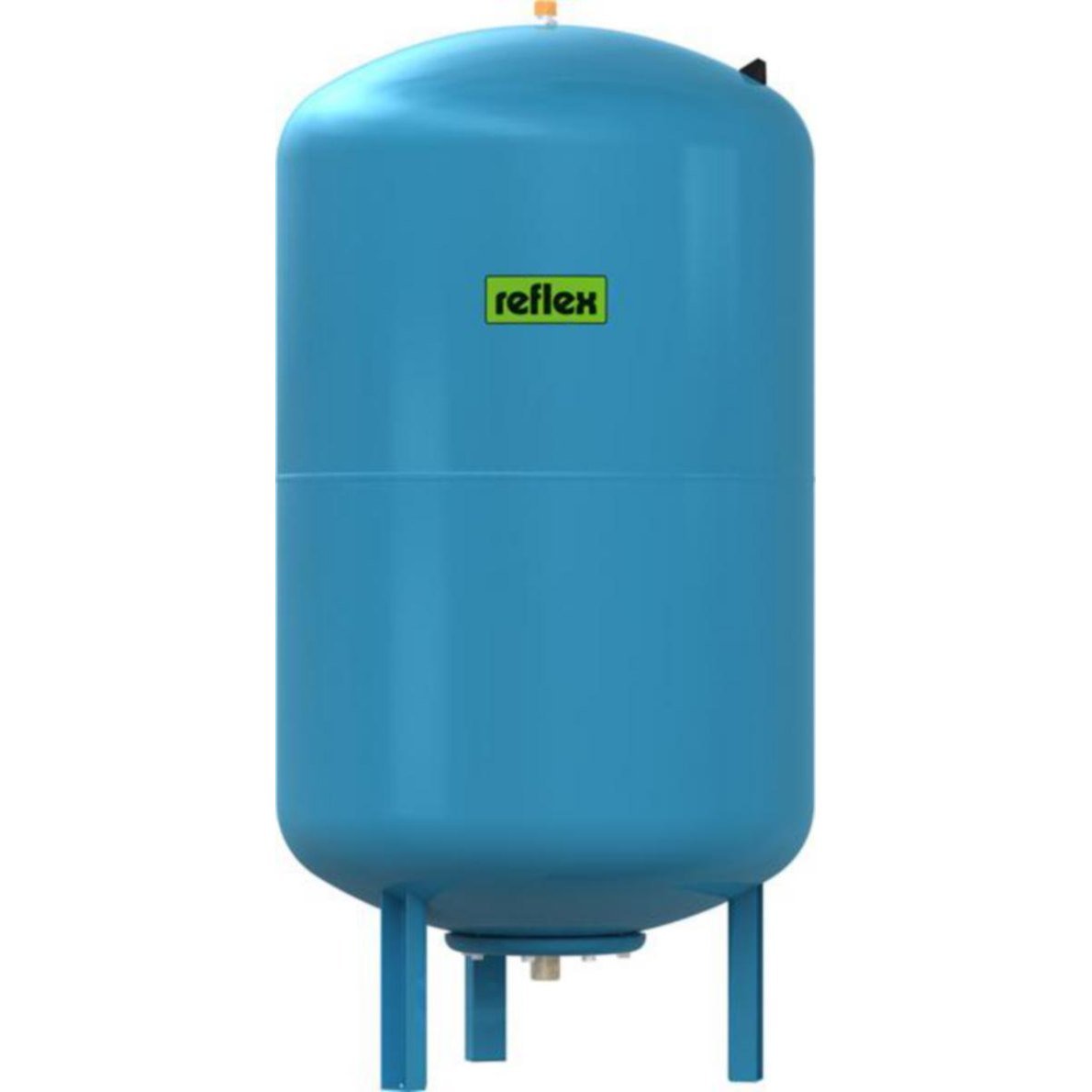

Diaphragm Expansion Vessel De/200Ltr/Rak.Pressure 10/2Bar. [3412098]

€969,00 EUR

  • Brand: Reflex
  • Product number: 3412098
  • Delivery time: approx. 5-10 business days.
  • Shipping cost: €9.90 or
  • Free pickup, no hidden costs.

Reflex DE tank for domestic hot water, geothermal and underfloor heating systems


Reflex's Refix DE type diaphragm expansion tank is intended for systems that are not subject to DIN 1988. The expansion tank is suitable for, among other things, fire extinguishing and domestic water systems as well as underfloor heating and geothermal installations. The valves comply with DIN EN 13831. Approval is in accordance with standard 2014/68/EU. The water tank complies with DIN EN 13831 and the diaphragm is replaceable from a 50 liter tank upwards. The glycol content of the antifreeze must be at least 25 - 50%. Parts that are in contact with water are corrosion-protected. The expansion tank is coated with durable epoxy resin. The pressure gauge and supply pressure valve are protected with a dimensional bracket.
  • Product number
    3412098

  • Supplier product number:
    L1107306699

  • EAN code:
    4036705388644

  • Material class
    P34020

Specifications
  • Capacity: 200 l
  • Connection type: cylindrical external pipe thread
  • Nominal diameter of expansion joint: 1.1/4" (32)
  • Height : 697mm
  • Diameter: 634 mm
  • Pre-pressure: 2 bar
  • With removable membrane: yes
  • Color: blue
  • Suitable for central heating: yes
  • Suitable for cooling: yes
  • Suitable for tap water: yes
  • Diaphragm material: butyl rubber
  • Maximum operating pressure: 10 bar
  • Maximum ethanol blend: 50 %
  • Maximum glycol mixture: 50 %
  • With legs: yes
  • Medium temperature (continuous): -10-70 °C
  • Horizontal placement: no
  • Vertical installation: yes
  • Suitable for solar panels: yes
