Wood boiler Termax K-40 with heating coil [5076167]

€4.066,00 EUR

  • Brand: Termax
  • Product number: LVI-5076167
  • Delivery time: approx. 1-5 business days.
  • Shipping €9.90 or
  • Free pickup, no hidden costs.

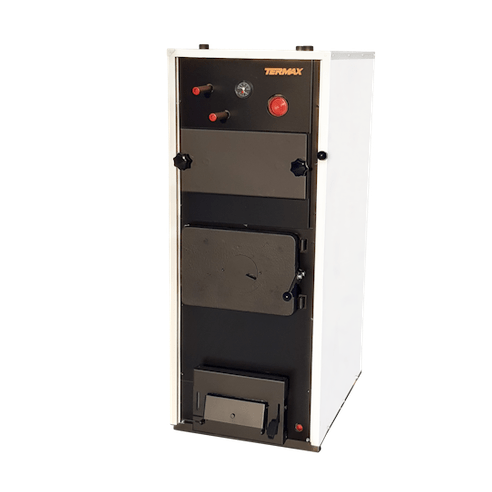

The Termax K-40 LV coil has an efficient top-fired wood boiler, which is filled from the front. The LV coil in the boiler is necessary, for example, in the summer when the accumulator is not to be heated, or when hot domestic water is needed quickly, or when it is needed for cooling when the boiler water temperature rises too high. A spacious firebox and correctly designed convection with vertical water chambers ensure efficient heat transfer. The Termax top-fired wood boiler is always connected to charge the energy accumulator. Any electrical resistances are installed in the energy accumulator.

The Termax K-40 wood boiler is easy to use and maintain, as filling, cleaning and maintenance operations are carried out from the front. The Termax K-40 is equipped with three vertical convectors, which minimizes the possibility of boiling compared to horizontal convectors. The firebox is designed for half a meter (0.5 m) long logs. Ash removal is easy thanks to the ash box under the grate. The filling door is made of cast iron, which prevents it from warping and leaking.
  • Brand: Termax
  • Product number: LVI-5076167
  • Height: 1350mm
  • Depth: 760 mm
  • Width: 550mm
  • Volume: 140 liters
  • Power: 40000W
  • Color: Green
  • Model: Termax K-40, LV coil Cu 22/18
  • Firebox dimensions hxwxd: 650 x 350 x 550 mm
  • Tank recommendation: 1000-3000 l
  • Weight: 270 kg
  • Design pressure: 1.5 bar
  • Maximum permissible temperature: 100 °C
  • Min. draft: 15 Pa

Nominal powers:

  • Solid fuel: 20-40 kW
  • Oil/gas: 15-35 kW

Chimney recommendation:

  • Masonry: approx. 180 x 180 mm
  • Steel pipe: ø 200 - 250 mm
  • Minimum length: 4 m
  • Required draft in the chimney: 15 Pa
  • Replacement air opening: min 300 cm²

Standard equipment:

  • Thermometer/pressure gauge
  • Draft regulator
  • Burner flange
  • Grates
  • Smoke outlet extension
  • Cleaning tools
  • Operating and maintenance instructions

SAP AAR134
HVAC 5076167
PLC 5076167
EAN/GTIN 6415850761676
Supplier product code 5076167
