Wall Lamp Outdoor Vino Duo Ip65 19W 830/840 Pco Bk [4547212]

€42,90 EUR

Brand: Airam
Product number: 4547212
Delivery time: approx. 1-5 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

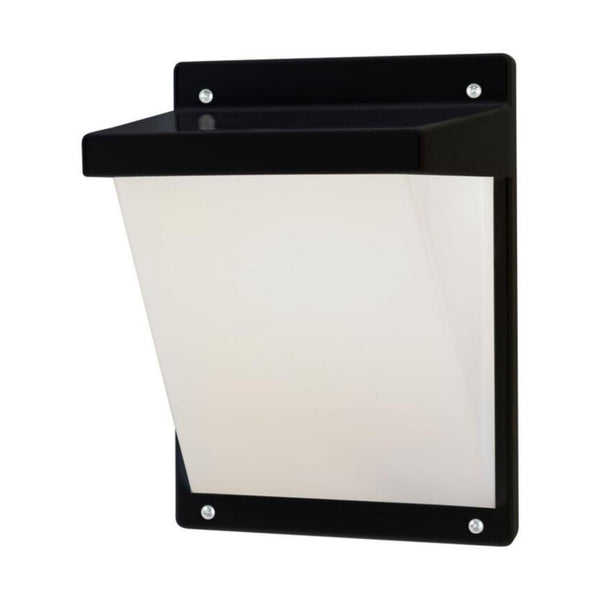

Vino DuoThe versatile Vino Duo facade luminaire is designed as a general luminaire for small houses and for lighting the entrances of housing associations and industrial halls. The wall luminaire is suitable for applications requiring good impact resistance. You can also use Vino Duo as a number luminaire by sticking separately purchased letter or number stickers to the dome. Choose from two color temperature and three light output options during installation. Frame and dome made of UV-stabilized polycarbonate (PCO).
White, RAL 9016 and black RAL 9005.
Protection class II.
Surface mounting on the wall.
Can be daisy-chained 3 x 2.5 mm2.
Installation height 2–6 m.

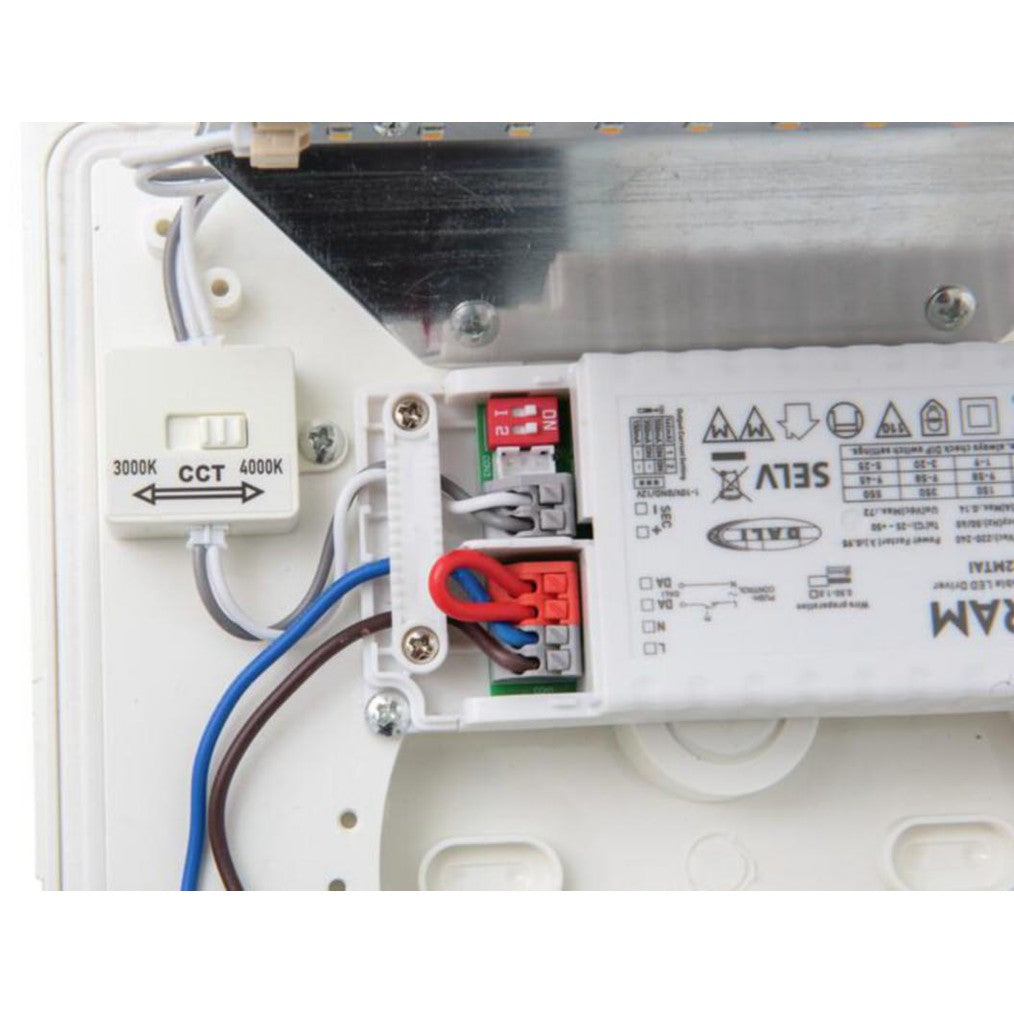

Color temperature 3000K/4000 K, changeable from the lamp.
CRI > 80 / Ra > 80.
MacAdam 5 SDCM.
IP65.
IK10.
Fixed LED 6W 500 lm / 12W 1000 lm / 19W 1500 lm. Light output can be changed from the luminaire.
On/Off.
Operating environment temperature -25 … 25 °C.
Service life L70 50,000 h (Ta25°C).
Power supply lifespan 100,000 h (Ta25°C).
Letter and number stickers are not included in the package.

Product number

4547212
Supplier product number:

A5WINE
EAN code:

6435200278128
Material class

S4504A

Specifications

Energy label: E
Maximum system power: 19 W
Rated luminous flux according to IEC 62722-2- 1: 500-1500 lm
Color temperature range: 3000-4000 K
Dimmable: no
Frame color: black
Light source type: LED, fixed
Opening angle (defined range): open radius
Lamp holder: other
Dimming DALI: no
Dimming DALI-2: no
Cover material: opal plastic
Length : 221mm
Number of poles: 3
Width : 205mm
Height/Depth: 285 mm
Driver type: constant current LED driver
Protection class (IP): IP65
Protection class (IP), front: IP65
Protection class (IP), rear side: other
Housing/cover material: plastic
Includes control unit: yes
Includes lamp: yes
Protection class: II
Impact resistance class: IK10
Nominal voltage range: 220-240 V
Voltage type: AC
Color rendering index: 80-89
Light distribution (symmetrical/asymmetrical): symmetrical
Light direction (direct/indirect): direct
Protecting the luminaire with thermal insulation material possible: no
Sunshade type: none
Light color: white
Flush mounting: no
Queue installation: no
Suitable for emergency lighting: no
Hanging installation: no
With light sensor: no
With air vents: no
Motion sensor: no
Suitable for terminal work: no
The surface temperature of the luminaire is limited, class D, standard EN 60598-2-24: no
Number of lamps/modules: 1
Surface mounting: yes
Ceiling mounting: no
Dimming rising edge control: no
Push button dimming: no
Dimming mains modulation: no
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DMX: no
Dimming DSI: no
Dimming RF: no
Dimming Zigbee: no
Dimming potentiometer: no
Dimming programmable: no
Manufacturer-specific dimming: no
Power factor: 0.9
Dimming falling edge control: no
Glow wire test according to IEC 60695-2-11: 650 °C - 30 s
Conductor cross-section: 2.5 mm²
Light distribution: diffusing lens/optics/panel
Luminaire luminous efficacy: 78 lm/W
Suitable for lamp power: 6-19 W
Lamp life L70B50 Ta=25 °C: 50000 h
Ambient temperature rating according to IEC62722-2-1: -25-25 °C
Touch dimming: no
Cabling method: suitable for through wiring
Bluetooth controllable: no
Total Harmonic Distortion (THD): 20 %
Photobiological safety EN 62471: RG0
Color consistency (MacAdam's ellipse): SDCM5
Housing surface treatment: plastic coated
Luminous flux maintenance, average service life 35,000 h, ambient temperature 25 °C: 80 %
Luminous flux maintenance, average service life 50,000 h, ambient temperature 25 °C: 70 %
Failure rate, average service life 35,000 h, ambient temperature 25 °C: 5 %
Failure rate, average service life 50,000 h, ambient temperature 25 °C: 10 %
Flicker value Pst LM: 1
Adjustable light distribution: no
Adjustable color temperature: stepwise
Amazon Alexa compatible: no
Apple HomeKit compatible: no
Google Assistant compatible: no
Constant light output control (CLO): no
Adjustable luminous flux (lumen): stepwise
Maximum number of lamps, circuit breaker B16: 30
Maximum number of lamps, circuit breaker C16: 55
IFTTT support: no
Stroboscopic effect measurement value SVM: 0.4
Replaceable ballast: yes
Light source energy efficiency class (EU regulation 2019/2015): E
Compatible with Casambi system: no
Wall mounting: yes
Rated current range: 150-550 mA
Connection method: plug clamp / spring terminal
Cross-section of the connected wires: 1.5-2.5 mm²
Contains products compliant with 2019/2020/EU: yes
Bracket installation: no
Maximum number of luminaires per C10 circuit breaker (MCB): 30
Includes mounting hardware: yes
Includes presence sensor: no
Backup power system: none
Emergency operations monitoring system: none
Total Harmonic Distortion (THD): 20
Luminaire efficiency: 78 lm/W
Rated luminous flux of the luminaire: 1500 lm
Without dimming function: yes
Dimming GPRS: no
Dimming dependent on control device: no
