Charging station Basics Schneider Charge Pro 22 Kw T2-Kaap Mid [3505099]

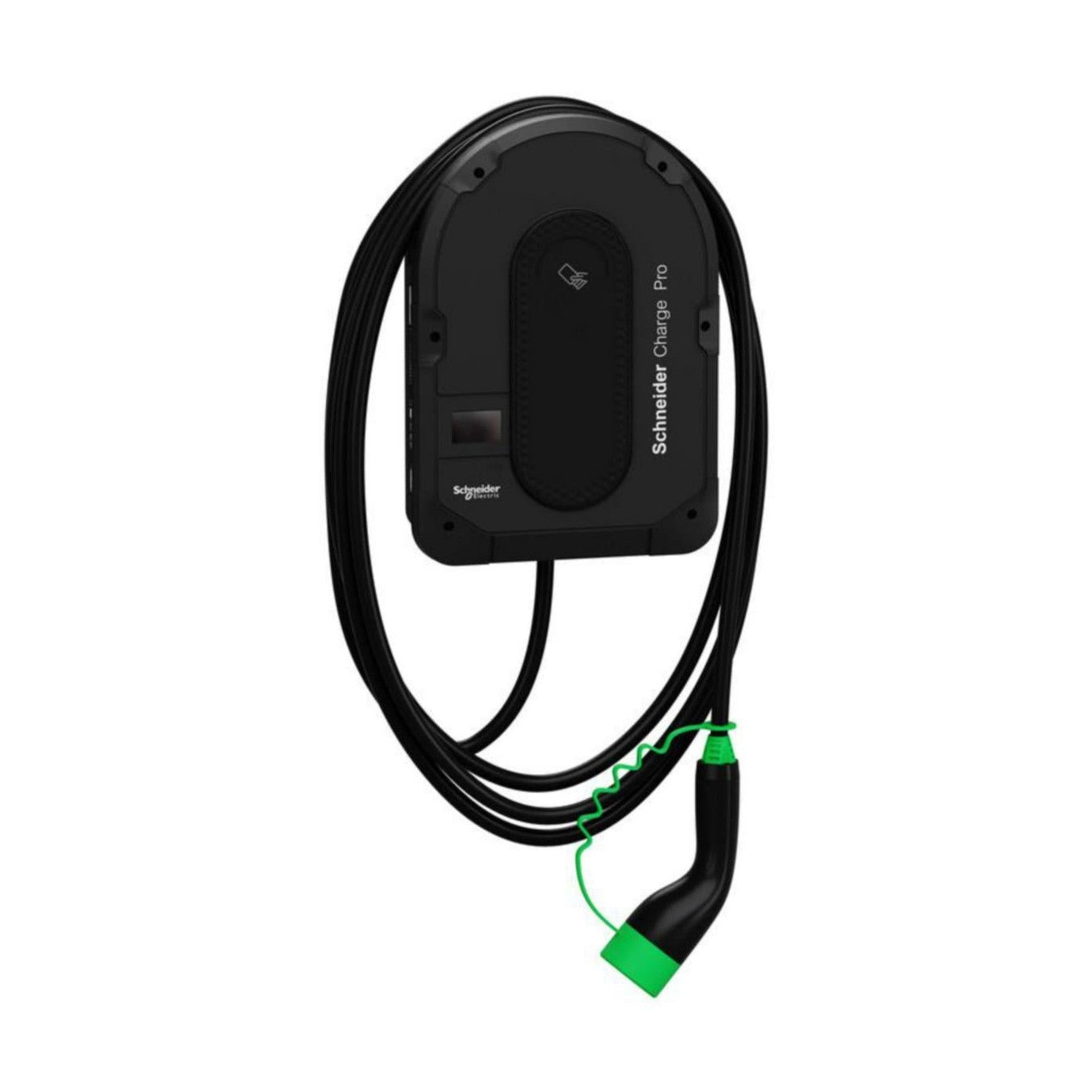

Schneider Charge Pro is a wall-mounted charging station for all electric vehicles that comply with the IEC61851-1 standard. It can be installed both indoors and outdoors and also on a stand. The IP protection class is IP55. The impact resistance class is IK10. The operating temperature is -30 °C to 50 °C. The charging station has a 7-meter fixed cable with a T2 plug at the end, which is connected to the bottom of the charging station. The rated output power depends on how the product is installed. It is 7.4 kW when supplied as single-phase, and the rated charging current is 32 A under 230 V (220 V - 240 V) at 50/60 Hz. It is also available in 11 kW or 22 kW three-phase when supplied with a nominal charging current of 16 A or 32 A at 400 V (380-415 V) at 50/60 Hz. It can be used in TN-S, TN-C, TT or IT 230 earthing systems. The charging station is easy to install and commission. It is recommended for both housing companies and leasing car owners. The dimensions are (W) 292 mm x (H) 418 mm x (D) 119 mm. Its product weight is 7 kg. Its color is black (RAL 9005). It includes a built-in direct current detection of 6 mA (RDC-DD). The device also has a MID electricity meter, a Wi-Fi module and 2 Ethernet ports. During setup, the eSetup app can be used to configure whether there is no user authentication or authentication is done with an RFID tag to start charging. The white side button activates Wi-Fi Direct, which is then used to connect to the eSetup app for setup. The charging station has an LED light that changes color between red, green, blue, white and orange to indicate the charging station status. The OCPP 1.6J communication protocol can be used to connect to the charging operator's monitoring/third-party cloud. It can also be connected to a home internet router via either Wi-Fi or an RJ45 Ethernet cable.
