Compression T-Branch Roth Ms 63X63X63 1746442

€162,80 EUR

Brand: Roth
Delivery time: approx. 1-5 business days.
Shipping €9.90
Product number: 1746442

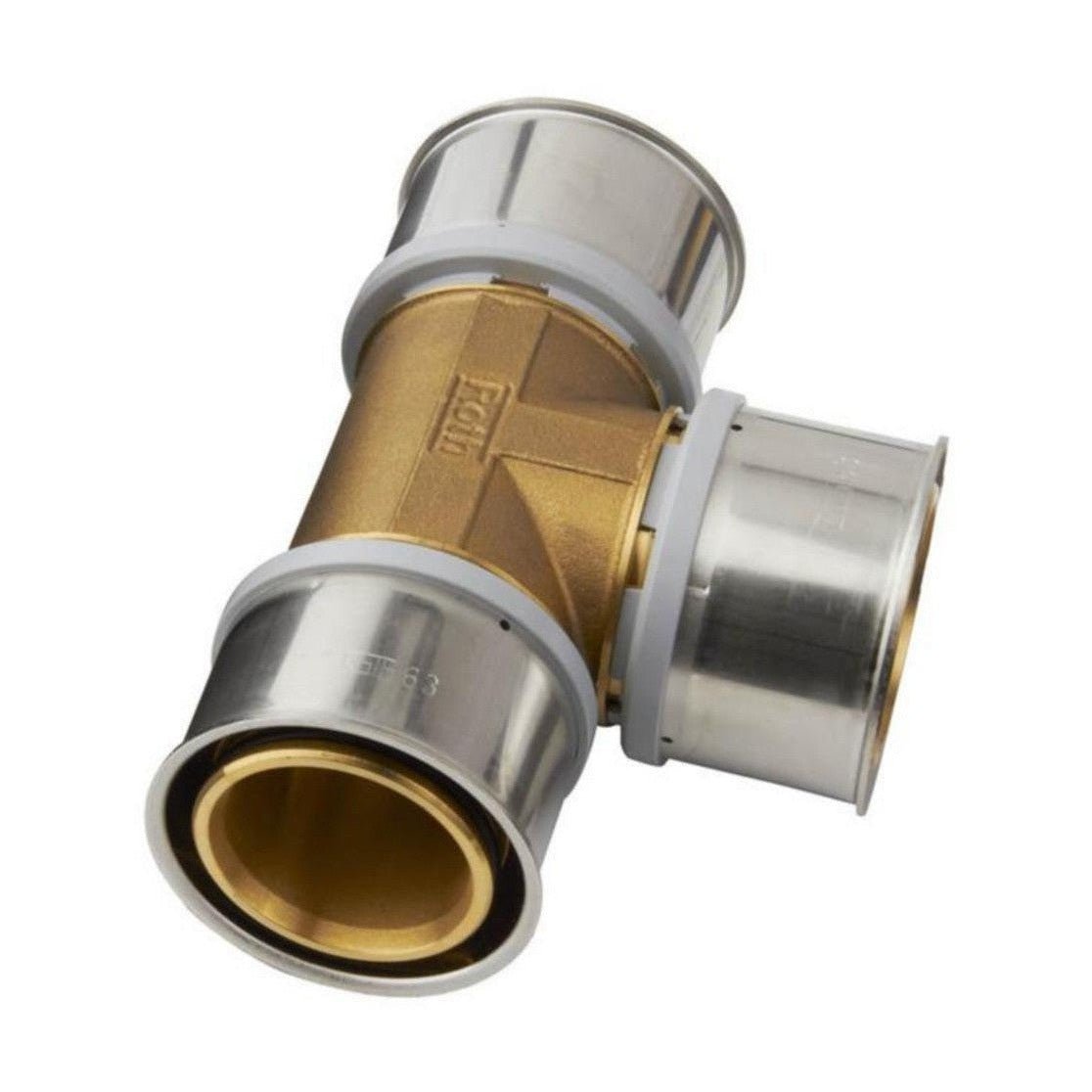

T-branch for use with Roth Alu-LaserPlus® composite pipe. Use Roth pressing jaws for installation. The part is made of dezincification-resistant brass. Roth PressCheck® connectors will not pass the pressure test if they have not been pressed – this avoids a common installation error. Roth Alu-LaserPlus® is a high-quality, laser-welded composite pipe system for domestic water, heating and cooling systems. The pipe and PPSU parts are manufactured in Roth's own factories in Germany. The outer layer of the pipe is glossy white PE plastic, which is easy to keep clean. The range also includes the gray Roth Alu-LaserPlus® onWall 16 pipe (LVI no. 1745130), which is especially suitable for surface installation. The stylish gray composite pipe is a cost-effective and easy alternative to surface connections with dark wall coatings.
System warranty 10 years.

Product number

1746442
Supplier product number:

17045660.063
EAN code:

4037115019029
Material class

P1722B

Specifications

Package sizes: 1 PCS/2 PCS
Pipe outer diameter connection 1: 63 mm
Pipe outer diameter connection 2: 63 mm
Pipe outer diameter connection 3: 63 mm
Connection 1: compression connector
Connection 2: compression connector
Connection 3: compression connector
Material connection 1: brass
Material connection 2: brass
Material connection 3: brass
Covered: no
With seals: yes
With drain hole: no
With air screw: no
Model / Type: T-piece
Seal material: EPDM
Flange pressure class: PN 10
Material quality connection 1: CuZn21Si3P (CC768S)
Material quality connection 2: CuZn21Si3P (CC768S)
Material quality connection 3: dezincification resistant brass
Maximum operating pressure, 20 °C: 10 bar
System-specific: yes
Main color of the tube part: orange
With internal stop (stop edge): yes
KIWA approved: yes
DVGW quality mark: yes
