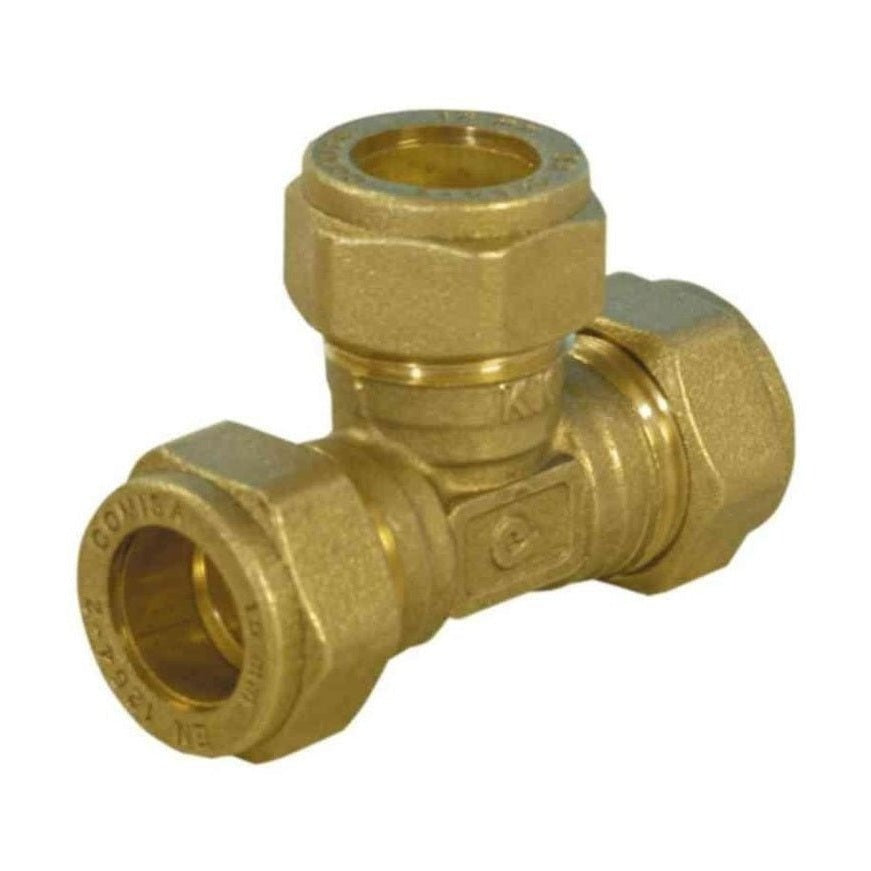

Compression T-Connector 12X10 [1551546]

€11,55 EUR

Brand: a-collection
Product number: 1551546
Delivery time: approx. 1-5 business days.
Shipping €9.90 or
Free pickup, no hidden costs

Connectors made of dezincification resistant brass. Nut made of standard brass (does not come into contact with water).
Maximum permissible operating temperature: 100ºC

Product number

1551546
Supplier product number:

1551546
EAN code:

6417258233045
Material class

P1550B

Specifications

Connection 1: clamping ring
Connection 2: clamping ring
Connection 3: clamping ring
Installation length, connection 1: 9 mm
Installation length, connection 2: 10 mm
Installation length, connection 3: 9 mm
Nominal diameter connection 2: DN 8
Pipe outer diameter connection 1: 12 mm
Pipe outer diameter connection 2: 10 mm
Pipe outer diameter connection 3: 12 mm
FM marked: no
Multi-part: no
Flange pressure class: PN 10
Contraction: yes
LPCB marking: no
Length, connection 1: 30 mm
Length, connection 2: 31 mm
Length, connection 3: 30 mm
Material connection 1: brass
Material connection 2: brass
Material connection 3: brass
Material quality connection 1: CuZn36Pb2As (CW602N)
Material quality connection 2: CuZn36Pb2As (CW602N)
Material quality connection 3: CuZn36Pb2As (CW602N)
Maximum operating pressure, 20 °C: 10 bar
With air screw: no
With drain hole: no
With internal stop (stop edge): yes
With seals: no
Covered: no
Model / Type: T-piece
Nominal diameter connection 1: DN 10
Key jaw spacing: 14 mm
Spanner nut: 19 mm
System-specific: yes
UL listed: no
ULC Marking: No
Surface treatment connection 1: untreated
Surface treatment interface 2: untreated
Surface treatment joint 3: untreated
Surface protection connection 1: untreated
Surface protection connection 2: untreated
Surface protection joint 3: untreated
Nominal diameter connection 3: DN 10
Tensile strength: yes
Main color of the tube part: brass
KIWA approved: no
Gastec QA-marked gas: no
VdS marking: no
Angle: 90 °
Seal material: brass
DVGQ quality mark for water: no
KOMO approved: no
DVGW approval for gas: no
With connection indicator: no
