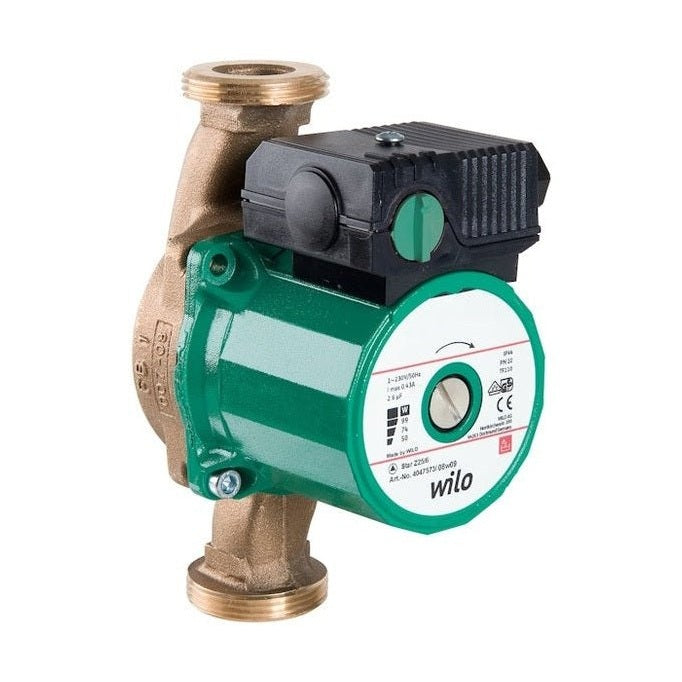

Domestic water pump Wilo Star-Z 20/5 L=150 mm 4081198 [4623248]

Brand: Wilo
Product number: LVI-4623248
Delivery time: approx. 1-5 business days.
Shipping €9.90
Free pickup, no hidden costs.
More information: LINK

This circulation pump is only suitable for drinking water. Hot water circulation pump, glandless pump with manual, three-stage speed control for pipe installation. Anti-seize motor. Pump housing made of bronze, impeller made of glass-fibre reinforced plastic, ceramic shaft with plastic resin-impregnated carbon plain bearings.

Product number: 4623248

Supplier product number: 4081198

EAN code: 4016322698050

Material class P4630A

Specifications
Brand: Wilo
Immersion length: 150
Nominal diameter of the inlet side: 1.1/4" (32)
Nominal diameter of the outlet side: 1.1/4" (32)
Insulation class according to IEC: F
Protection class (IP): IP44
Frequency: 50Hz
Engine input power (P1): 93
Rated current: 0.4
Inlet connection: cylindrical external pipe thread
Outlet connection: cylindrical external pipe thread
Number of stages: 1
Pump shell material: bronze
Pump housing material quality: bronze (Rg 5)
Medium temperature (continuous): 2-65 °C
Rated voltage: 230 V
Volumetric flow (BEP): 4.5
Pressure at volumetric flow (BEP): 2.184
Inlet flange pressure class: PN 10
Outlet flange pressure class: PN 10
