Grundfos Wastewater Pump Slv.80.80.11.4.50D.C [4836115]

€2.699,00 EUR

Brand: Grundfos
Product number: 4836115
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

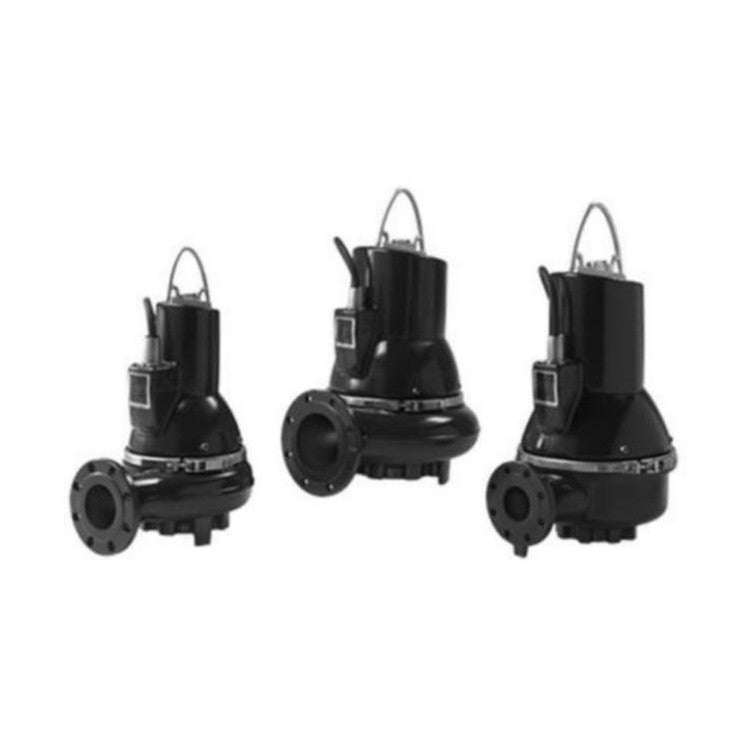

Single-stage centrifugal pump with normal suction suitable for wastewater, process water and untreated sewage. The pump is designed for intermittent and continuous operation in submerged installations. The high-performance SuperVortex impeller has a throughput of up to 65 mm for long fibres and solids. It is suitable for pumping wastewater with a solids content of up to 5%. The unique stainless steel clamp system makes it easy and quick to remove the pump from the motor unit for maintenance and inspection. No special tools are required. The pipe connections are connected via DIN flanges.

Product number

4836115
Supplier product number:

98625975
EAN code:

5711498463585
Material class

P4910B

Specifications

Insulation class according to IEC: H
Rated current: 2.9 A
Pump height: 711 mm
Pumping circuit: none
Rotational speed: 1452 rpm
Maximum diameter of mounting parts: 80 mm
Electrical connection: cabling
Pump diameter: 339 mm
Output side connection: flange
Nominal diameter of the outlet side: DN 80
Outlet standard: EN 1092-2
Number of stages: 3
Motor power (P2): 1.1 kW
Outlet connection diameter: 80 mm
Explosion-proof: no
Flange shape: round
Frequency: 50Hz
Motor input power (P1): 1.4 kW
Protection class (IP): IP68
Suitable for dry installation: no
Cable length: 10 m
Impeller material: cast iron
Motor shell material: cast iron
Pump shell material: cast iron
Impeller material quality: cast iron EN-GJL-250 (GG 25)
Motor shell material quality: cast iron EN-GJL-250 (GG 25)
Pump housing material quality: cast iron EN-GJL-250 (GG 25)
Maximum operating pressure: 6 bar
Outlet flow (maximum): 58 m³/h
Static maximum height: 8.1 m
With dry-running protection: yes
Rated operating mode: S3
Volume flow (BEP): 31.32 m³/h
Disconnect device: no
Immersion depth: 20 m
Pressure at volumetric flow (BEP): 43.73 kPa
Outlet flange pressure class: PN 10
Motor speed control: none
Weight: 90.9 kg
