Wastewater pump Grundfos with impeller SEG.40.26.2.50B 3X400V [4836104]

€2.379,00 EUR

Brand: Grundfos
Product number: LVI- 4836104
Delivery time: approx. 5-15 business days.
Shipping €9.90
Free pickup, no hidden costs.

More information:

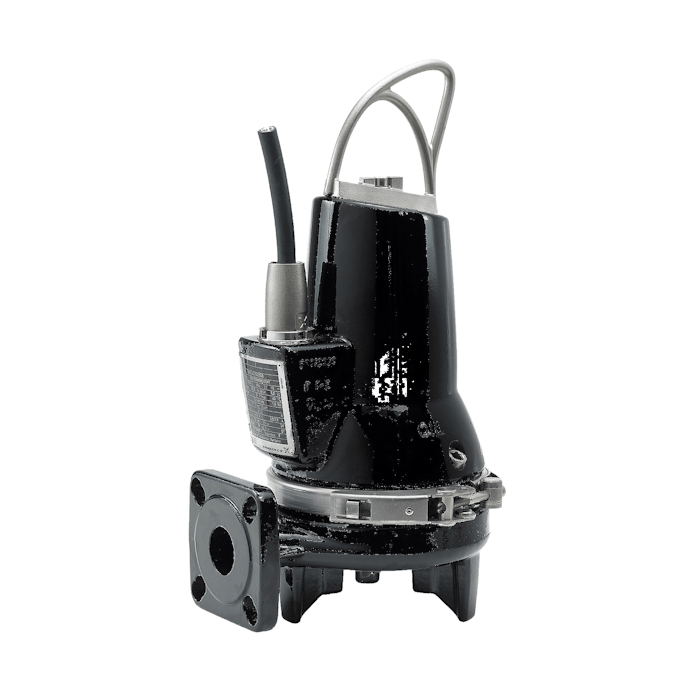

The Grundfos SEG.40.26.2.50B pump is a submersible pump with a horizontal discharge port, and is specially designed for pressure sewer systems. The SEG pumps are equipped with a chopper that chops solids into small pieces that can pass through relatively small pressure pipes.

The pump has a smooth surface to prevent dirt from sticking to it. The pump is mainly made of cast iron. The bracket that attaches the motor to the pump is made of stainless steel to prevent rust and facilitate maintenance. The pump supply cable has conductors for a temperature sensor located in the motor windings. The cable connection is a plug-in type. The fully insulated connection prevents moisture from entering the pump through the cable, even if the cable breaks.

Brand: Grundfos
Product number: LVI-4836104
Power: 2600W
Voltage: 400V
Protection class: IP68

Grundfos product number: 96075913
HVAC number: 4836104
The pump must be connected to the controller
The pump is VDE tested

Controls:

Humidity sensor: without humidity sensors
AUTOADAPT: No

Liquid:

Pumpable liquid: All Newtonian liquids
Liquid temperature range: 0 .. 40 °C
Density: 998.2 kg/m³

Specifications:

Impeller type: Ripper
primary shaft seal: SIC/SIC
Secondary shaft seal: CARBON/CERAMICS
Approvals on nameplate: PA-I
Curve tolerances: ISO9906:2012 3B2

Materials:

Pump housing: Cast iron, EN1561 EN-GJL-200
Impeller: Cast iron, EN1561 EN-GJL-200

Installation:

Maximum external temperature: 40 °C
Maximum permissible operating pressure: 6 bar
Standard flange: DIN
Pipe connection: DN40/50
Pump discharge port: DN 40
Pressure range: PN 10
Maximum installation depth: 10 m
Automatic clutch: 96076063

Electrical information:

Input power - P1: 3.2 kW
Rated power - P2: 2.6 kW
Supply frequency: 50 Hz
Nominal voltage: 3 x 400-415 V
Voltage tolerance: +6/-10%
Max. starts per hour: 30
Rated current: 6 A
Starting current: 33 A
Rated current without load: 2.8 A
Cos phi - power factor: 0.87
Cos phi - power factor at 3/4 load: 0.81
Cos phi - power factor at 1/2 load: 0.68
Rated speed: 2870 rpm
Moment of inertia: 0.0093 kg m²
Motor efficiency at full load: 0.82 %
Motor efficiency at 3/4 load: 0.84 %
Motor efficiency at 1/2 load: 0.84 %
Number of poles: 2
Starting method: direct start.
Protection class (IEC 34-5): IP68
Insulation class (IEC 85): F
Explosion protection: N
Cable length: 10 m
Cable model: LYNIFLEX
Cable connection type: No plug

Other information:

Net weight: 57 kg
