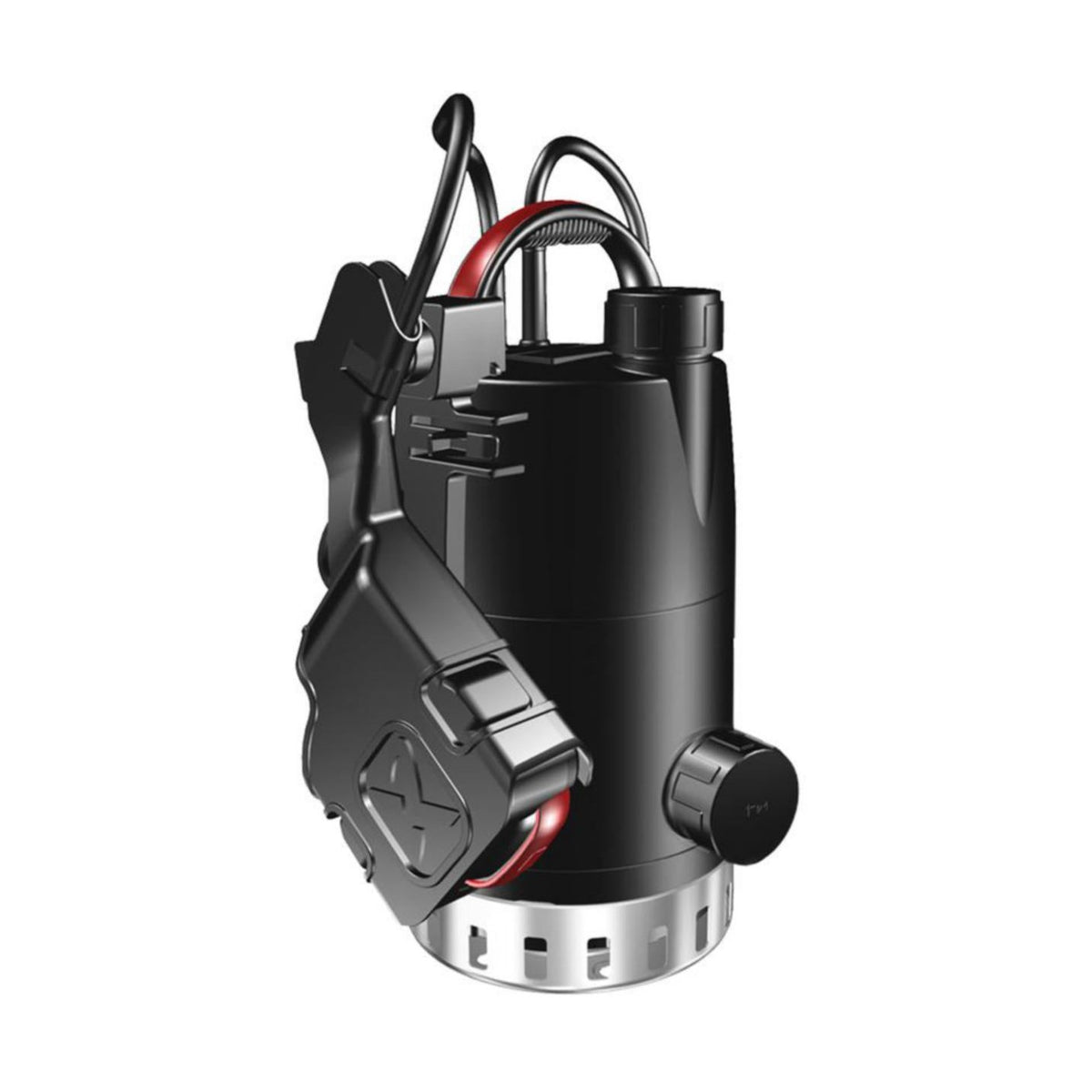

Submersible pump Grundfos Unilift CC5A-1 with rocker control CC5A-1 + 5M CABLE [4822526]

€258,50 EUR

Brand: Grundfos
Product number: LVI- 4822526
Delivery time: approx. 1-5 business days.
Shipping €9.90 or
Free pickup, no hidden costs.

More information:

The Grundfos Unilift CC is an easy-to-use, lightweight and durable greywater drainage and transfer pump. It is suitable for pumping rainwater, surface water and groundwater infiltrating basements, for example. It is particularly suitable for draining pools and wells. The lever model is supplied with a lever control, which allows the pump to be used in small wells (diameter only 30x35 cm).

- Liquid temperature: 0…40 °C
- Max penetration: Ø 10 mm
- Maximum lifting height, H: 9 m
- Composite, stainless steel strainer

Product benefits:
- 10 m cable with plug
- Minimum space requirement 300x350 mm
- Pressure outlet on top and side
- By removing the bottom strainer, the Unilift CC can suck water up to 3 mm.

Designation key: M = without lever, A = with lever

Product number: 4822526

Supplier product number: 98624419

EAN code: 5711498430778

Material class P48030

Specifications

Brand: Grundfos
Insulation class according to IEC: B
Motor power (P2): 0.11
Motor input power (P1): 0.25
Rated current: 0.98
Pump height: 306.6
Pumping circuit: none
Rotation speed: 2850
Maximum diameter of mounting parts: 10
Electrical connection: connection cable with plug
Weight: 4.7
Pump diameter: 160
Protection class (IP): IP68
Pump shell material: polypropylene
Motor shell material: stainless steel
Motor shell material quality: other
Pump shell material quality: PP-GF
Static maximum height: 5
Number of stages: 1
Impeller material: polypropylene
Impeller material quality: PP-GF
Outflow (maximum): 6
Rated operating mode: S3
Frequency: 50Hz
Immersion depth: 2
Pressure at volumetric flow (BEP): 24.71
Motor speed control: none
Output side standard: ISO 7-1 / EN 10226-1
Nominal diameter of the outlet side: 1.1/4" (32)
Disconnect device: no
Flange shape: round
Suitable for dry installation: no
Explosion-proof: no
Cable length: 5
With dry-running protection: no
Volumetric flow (BEP): 2.56
