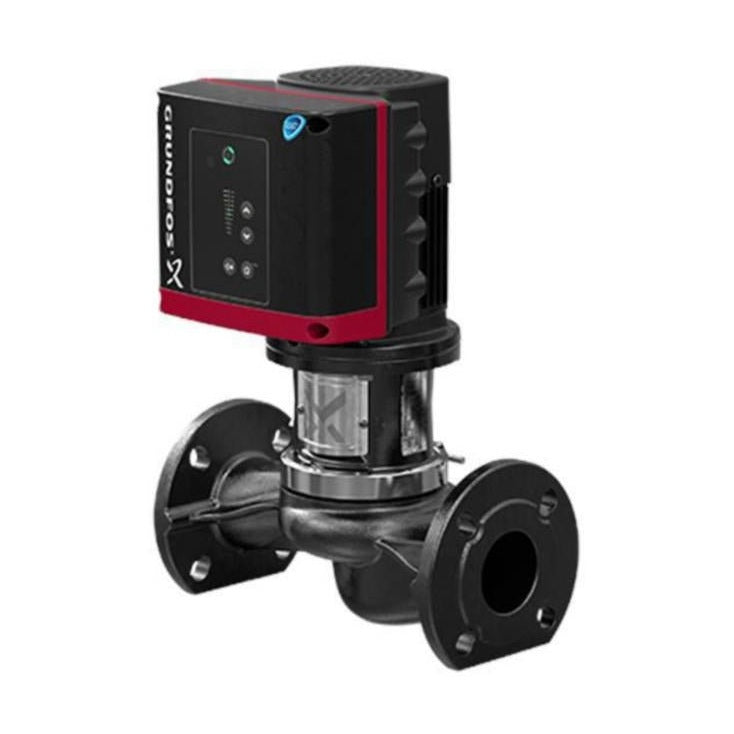

Grundfos Circulation Pump Tpe2 80-40-N [4616236]

€2.862,90 EUR

Brand: Grundfos
Product number: 4616236
Delivery time: approx. 20 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

Grundfos TPE2 pumps are single-stage in-line pumps equipped with a frequency converter. TPE2 pumps are suitable, among other things, as circulation pumps for various heating and cooling systems and ventilation systems. TPE2 pumps are available up to 2.2 kW motor size.

TPE2 pumps have an integrated speed control that automatically adapts the pump capacity to the system conditions. This keeps energy consumption to a minimum. TPE2 pumps can be operated at any operating point between minimum and maximum speed. Depending on the application, TPE2 pumps offer energy savings, greater operating comfort or better handling. The factory setting of TPE2 pumps is the standard curve control mode. TPE2 pumps are equipped with a BQQE shaft seal suitable for water and water-glycol solutions as standard.

Product number

4616236
Supplier product number:

98437735
EAN code:

5711495009021
Material class

P4624B

Specifications

Pump type: 80-40-N
Immersion length: 360 mm
Nominal diameter of the inlet side: DN 80
Nominal diameter of the outlet side: DN 80
Self-priming: no
Dual pump: no
Insulation class according to IEC: F
Motor with extended shaft: no
Motor speed control: built-in
Rated current: 1.46 A
Motor control type: stepless
Rotational speed: 1860 rpm
Protection class (IP): IP55
Motor power (P2): 0.25 kW
Frequency: 50/60 Hz
Inlet connection: flange
Output side connection: flange
Inlet standard: EN 1092-2
Outlet standard: EN 1092-2
Number of stages: 1
Electrical connection: connectors
Explosion-proof: no
Interface PT100 / PT1000 / PTC: yes
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: yes
Interface signal 0-20 mA / 4-20 mA: yes
Communication: built-in and pre-installed
Impeller material: other
Pump shell material: cast iron
Impeller material quality: other
Pump housing material quality: cast iron EN-GJL-250 (GG 25)
Maximum operating pressure: 10 bar
Outlet flow (maximum): 26.1 m³/h
Maximum static height: 4 m
RS-232 interface: no
RS-485 interface: yes
Minimum Efficiency Index (MEI): 0.7
Motor energy efficiency class: IE5
Volume flow (BEP): 26.1 m³/h
Standard engine: yes
Potential-free main switch: yes
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: yes
Supports BACnet MS/TP protocol: yes
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: yes
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: yes
Supports Modbus RTU protocol: yes
Supports Modbus TCP protocol: yes
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 27.45 kPa
Inlet flange pressure class: PN 10
Outlet flange pressure class: PN 10
Radio standard 2G: no
Radio standard 3G: no
Radio standard 4G: no
Bluetooth standard: no
Supports PROFIBUS protocol: yes
