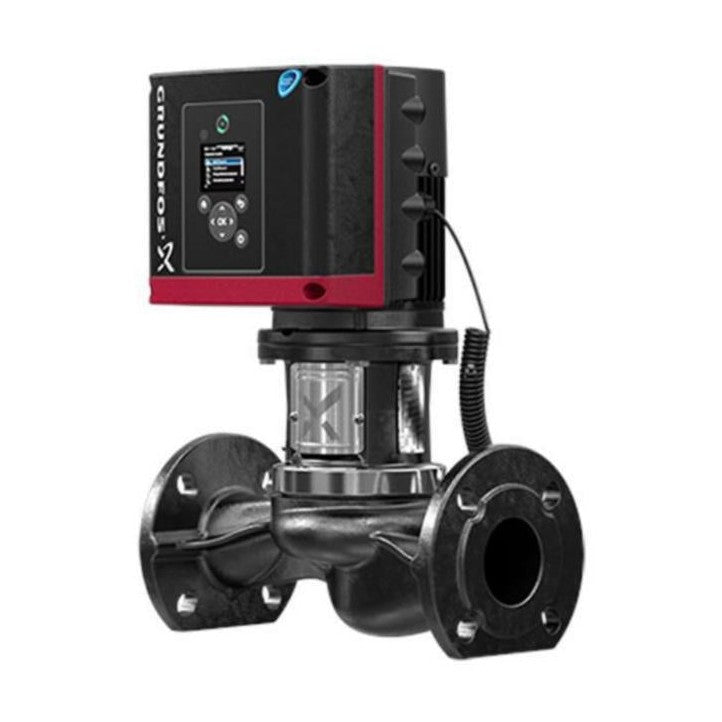

Grundfos Circulation Pump Tpe3 32-120-S [4616184]

€3.181,40 EUR

Brand: Grundfos
Product number:
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

Grundfos TPE3 pumps are single-stage in-line pumps equipped with a frequency converter and a differential pressure sensor. TPE3 pumps are suitable, among other things, as circulation pumps for various heating and cooling systems and ventilation systems. The TPE3 pump is available up to 2.2 kW motor size.

TPE3 pumps are equipped as standard with a BQQE shaft seal suitable for water and water-glycol solutions. TPE3 pumps have an internal differential pressure sensor and a temperature sensor. The permanent magnet motor of TPE3 pumps has an internal frequency converter so that the pressure can be adjusted steplessly according to the flow rate. The TPE3 series is a pre-set solution that allows for quick and safe installation. TPE3 offers a colour display that makes it easy to set up the pump and allows access to all functions. TPE3 pumps are factory-set to AUTOADAPT control mode, which continuously adapts the pump capacity to the actual system demand.

The TPE3 includes integrated thermal energy measurement and temperature sensor, in addition to which only one external sensor is required for the ?T control mode. Thermal energy measurement allows the distribution and consumption of thermal energy to be monitored. It helps to prevent excessive energy bills caused by system imbalance. The TPE3’s FLOWLIMIT function and FLOWADAPT control mode can eliminate the need for a pump throttling valve and thus reduce pressure loss.

Product number

4616184
Supplier product number:

99272235
EAN code:

5713826360719
Material class

P4624B

Specifications

Pump type: 32-120-S
Immersion length: 220 mm
Nominal diameter of the inlet side: DN 32
Nominal diameter of the outlet side: DN 32
Self-priming: no
Dual pump: no
Insulation class according to IEC: F
Motor with extended shaft: no
Motor speed control: built-in
Rated current: 1.56 A
Motor control type: stepless
Rotational speed: 3600 rpm
Protection class (IP): IP55
Motor power (P2): 0.25 kW
Frequency: 50/60 Hz
Inlet connection: flange
Output side connection: flange
Inlet standard: EN 1092-2
Outlet standard: EN 1092-2
Number of stages: 1
Electrical connection: connectors
Explosion-proof: no
Interface PT100 / PT1000 / PTC: yes
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: yes
Interface signal 0-20 mA / 4-20 mA: yes
Communication: built-in and pre-installed
Impeller material: other
Pump shell material: cast iron
Impeller material quality: other
Pump housing material quality: cast iron EN-GJL-250 (GG 25)
Maximum operating pressure: 10 bar
Outlet flow (maximum): 10.9 m³/h
Maximum static height: 12 m
RS-232 interface: no
RS-485 interface: yes
Minimum Efficiency Index (MEI): 0.7
Motor energy efficiency class: IE5
Volume flow (BEP): 10.9 m³/h
Standard engine: yes
Potential-free main switch: yes
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: yes
Supports BACnet MS/TP protocol: yes
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: yes
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: yes
Supports Modbus RTU protocol: yes
Supports Modbus TCP protocol: yes
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 60.79 kPa
Inlet flange pressure class: PN 10
Outlet flange pressure class: PN 10
Radio standard 2G: no
Radio standard 3G: no
Radio standard 4G: no
Bluetooth standard: no
Supports PROFIBUS protocol: yes
GWP tot (A1-A3): 85.7451 kgCO2e/PC
