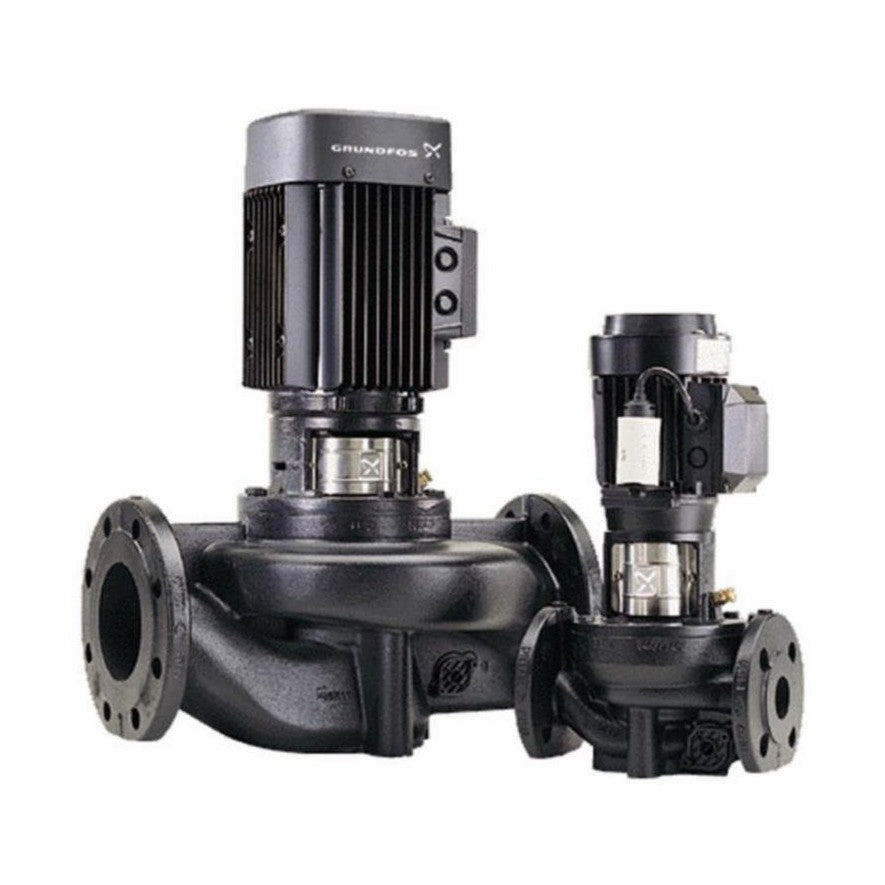

Grundfos Circulation Pump Tp 100-90/4 [4616114]

€3.208,50 EUR

Brand: Grundfos
Product number: 4616114
Delivery time: approx. 5-10 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

Grundfos TP series pumps are single-stage, short-stroke pumps with in-line suction and discharge connections of the same size. They are suitable, among other things, as circulators in various heating and cooling systems, ventilation systems and for pumping raw water due to their wide flow range.

TP pumps are equipped with a short coupling, meaning that the pump and motor are separate units. TP pumps are equipped with IE3 class electric motors. TP pumps are equipped with a BQQE shaft seal suitable for water and water-glycol solutions as standard. The TP pump series is available up to 630 kW motor size.

Product number

4616114
Supplier product number:

96109303
EAN code:

5700396982809
Material class

P4624B

Specifications

Pump type: 100-90/4
Immersion length: 550 mm
Nominal diameter of the inlet side: DN 100
Nominal diameter of the outlet side: DN 100
Self-priming: no
Dual pump: no
Insulation class according to IEC: F
Motor with extended shaft: no
Motor speed control: none
Rated current: 4.4 A
Rotational speed: 1445 rpm
Protection class (IP): IP55
Motor power (P2): 2.2 kW
Frequency: 50Hz
Inlet connection: flange
Output side connection: flange
Inlet standard: EN 1092-2
Outlet standard: EN 1092-2
Number of stages: 3
Electrical connection: connectors
Explosion-proof: no
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: no
Interface signal 0-20 mA / 4-20 mA: no
Communication: none
Impeller material: cast iron
Pump shell material: cast iron
Impeller material quality: cast iron EN-GJS-400-15 (GGG 40)
Pump housing material quality: cast iron EN-GJL-250 (GG 25)
Maximum operating pressure: 16 bar
Outlet flow (maximum): 69.5 m³/h
Maximum static height: 9 m
RS-232 interface: no
RS-485 interface: no
Minimum Efficiency Index (MEI): 0.7
Motor energy efficiency class: IE3
Volume flow (BEP): 69.5 m³/h
Standard engine: yes
Potential-free main switch: no
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: no
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: no
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: no
Supports Modbus RTU protocol: no
Supports Modbus TCP protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 79.22 kPa
Inlet flange pressure class: PN 16
Outlet flange pressure class: PN 16
Radio standard 2G: no
Radio standard 3G: no
Radio standard 4G: no
Bluetooth standard: no
Supports PROFIBUS protocol: no
