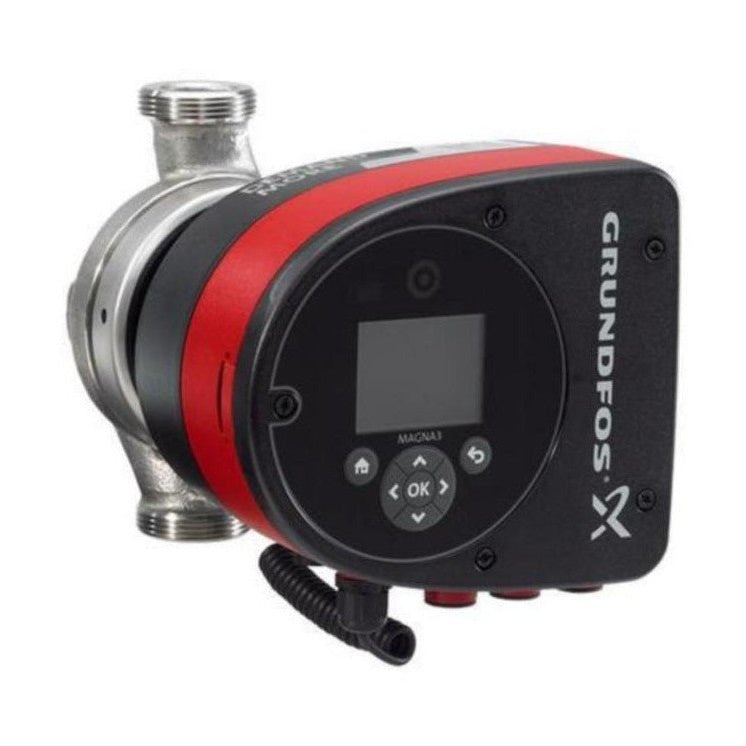

Domestic water tank Grundfos MAGNA3 25-100 N [4615645]

€1.746,10 EUR

Brand: Grundfos
Product number: LVI- 4615645
Delivery time: approx. 1-5 business days.
Shipping €9.90 or
Free pickup, no hidden costs.

More information:

MAGNA3 N is an intelligent circulation pump for hot water systems. The pump housing is made of stainless steel. The MAGNA3 pump provides alarm and operating status information to the automation system as standard and the pump can be controlled with a 0-10V voltage signal. An external sensor allows the pump to be controlled energy-efficiently based on the temperature difference. The MAGNA3 pump has a display for easy commissioning and the display shows the flow rate and many other useful information. The MAGNA3 pump has three standard curves for hot water applications. The temperature range of the pumped liquid is -10 - +110 degrees.

Product number: 4615645

Supplier product number: 97924339

EAN code: 5710626494156

Material class P4622A

Specifications

Brand: Grundfos
Immersion length: 180
Nominal diameter of inlet side: 1.1/2" (40)
Nominal diameter of the outlet side: 1.1/2" (40)
Insulation class according to IEC: F
Protection class (IP): IPX4
Frequency: 50/60 Hz
Motor speed control: built-in
Motor input power (P1): 0.153
Motor control type: stepless
Rated current: 1.33
Electrical connection: other
Dual pump: no
Pumping circuit: other
Rotation speed: 4530
Energy Efficiency Index (EEI): 0.18
Inlet connection: cylindrical external pipe thread
Outlet connection: cylindrical external pipe thread
Impeller material quality: other
Impeller material: other
Input standard: ISO 228-1
Output side standard: ISO 228-1
Number of stages: 1
Interface PT100 / PT1000 / PTC: no
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: yes
Interface signal 0-20 mA / 4-20 mA: yes
Communication: built-in and pre-installed
Pump shell material: stainless steel
Pump housing material quality: stainless steel 304 (1.4308)
Maximum operating pressure: 10
Static maximum height: 10
RS-232 interface: no
RS-485 interface: yes
Volumetric flow (BEP): 5.43
Potential-free main switch: yes
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: no
Supports BACnet MS/TP protocol: yes
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: yes
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: yes
Supports Modbus RTU protocol: yes
Supports Modbus TCP protocol: no
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 61.5
Inlet flange pressure class: PN 10
Outlet flange pressure class: PN 10
