Oras Stela Safety 4826FTZ washbasin faucet [6110482]

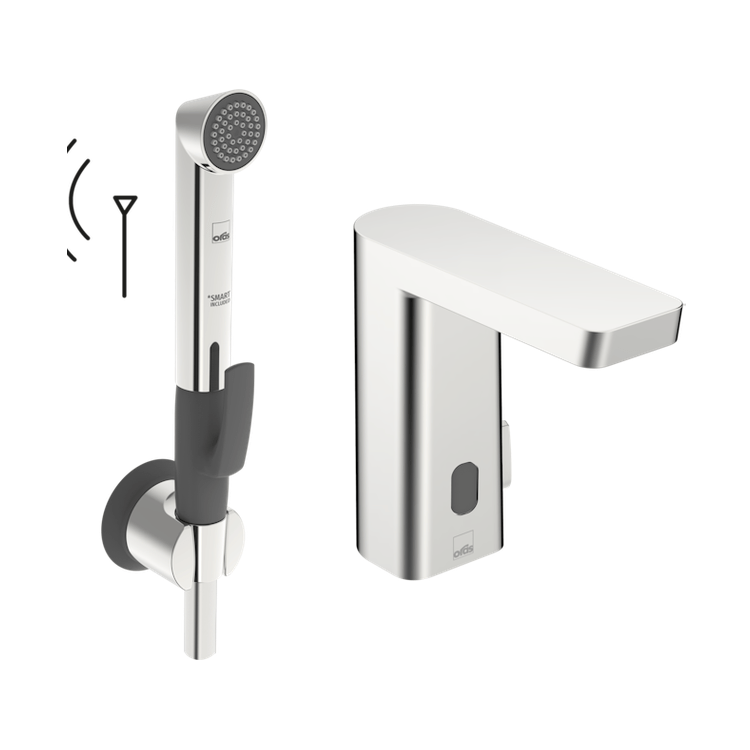

Oras Stela Safety 4826FTZ is a touchless washbasin faucet with a remote-controlled Smart Bidetta hand shower and a temperature control handle. The faucet has an integrated aerator, the angle of which can be adjusted to prevent water splashing. Thanks to Bluetooth connectivity, the faucet settings can be easily monitored and changed. Electrical connection with a plug-in transformer 230/9 V. The faucet comes with a mains connection cable (L=650 mm). The faucet is equipped with debris filters, one-way valves and flexible connection pipes.

Features

• aerator type: integrated aerator, adjustable flow angle
• connection type: flexible connection pipes
• electronic components: advanced PSD sensor, includes power supply
• hand shower type: remote-controlled Smart Bidetta
• lever/handle type: temperature control handle
• mechanical parts: mixing valve for manual temperature control
• shower parts: hand shower, shower holder, shower hose (1750 mm)
• special features: 3S-Installation fastening system, software settings can be changed via Oras App (Bluetooth)
• spout type: fixed spout, cast construction
• color: chrome
• post-flow time: 3 s (1-20 s)
• automatic flushing: off (off/1-120 h)
• automatic flushing time: 30 s (1-1800 s)
• max. flow time: 2 min (1-1800 s)
• flow rate at 300 kPa (with flow restrictor): 0.08 l/s
• pressure drop with flow (0.1 l/s): 435 kPa (70 % qv = 213 kPa)
• backflow protection (EN1717): EB
• connection size: G3/8
• DN size (standard size): DN15
• hot water: max. +70 °C
• material: brass
• reach: 105 mm
• operating pressure: 100 - 1000 kPa
• Bluetooth version: 5.x (D060576)
• electrical connection: 230 / 9 V
• EU directives: 2014/53/EU, 2011/65/EU
• EN standard: EN 15091
• protection class: IP 55
• noise class: I (ISO 3822)

Spare parts

• jet nozzle, STD M24x1 HC PCA 8.0 l/min SSR: Oras 1016774V
• window (chrome): Oras 1012249V
• solenoid valve complete, 3 V: HVAC 6420325
• sensor, 3/9 V, Bluetooth (Chrome): Oras 1015155V
• thermostat: Oras 1000580V
• thermostatic control handle (chrome): Oras 1016154V
• mounting kit: LVI 6420634
