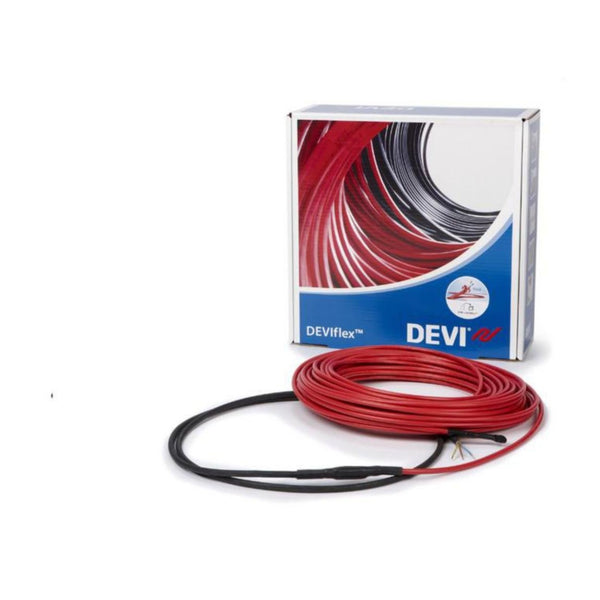

Underfloor heating cable Deviflex 18T 68M 1220W 230V [8168141]

DEVIflex™ 18T heating cable is suitable for underfloor heating of concrete floors (thickness over 5 cm) in new buildings in apartments, offices, public spaces, factories, schools, etc., with tile, plastic, cork, laminate or wood coverings. The heating cable is supplied in fixed lengths on a disposable reel, which makes installation easier. The cable is marked with metric markings. The power of the DEVIflex™ 18T heating cable is 18 W/m. When installed, for example, on a reinforcing mesh, with a 15 cm installation interval, the heating power is achieved ~ 120 W/m². The DEVIflex™ 18T heating cable can also be used in land areas, for example, for frost protection of stairs, sidewalks and courtyards. With a 7 cm installation interval, the power is achieved 250 W/m². Technical data: Operating voltage: 230 V Power / m: 18 W/m Diameter: 6.9 mm Cable construction: round, shielded, 2-core, single connection cable Connection cable: 2.3 m, DTCL, 3 x 1.5 mm² or 3 x 2.5 mm² Outer sheath: PVC Maximum ambient temperature: 65 °C Minimum nominal installation temperature: -5 °C Minimum bending radius: 6 x cable diameter Conductor insulation: PEX Standards: SEMKO, CE, IEC60800-2009
