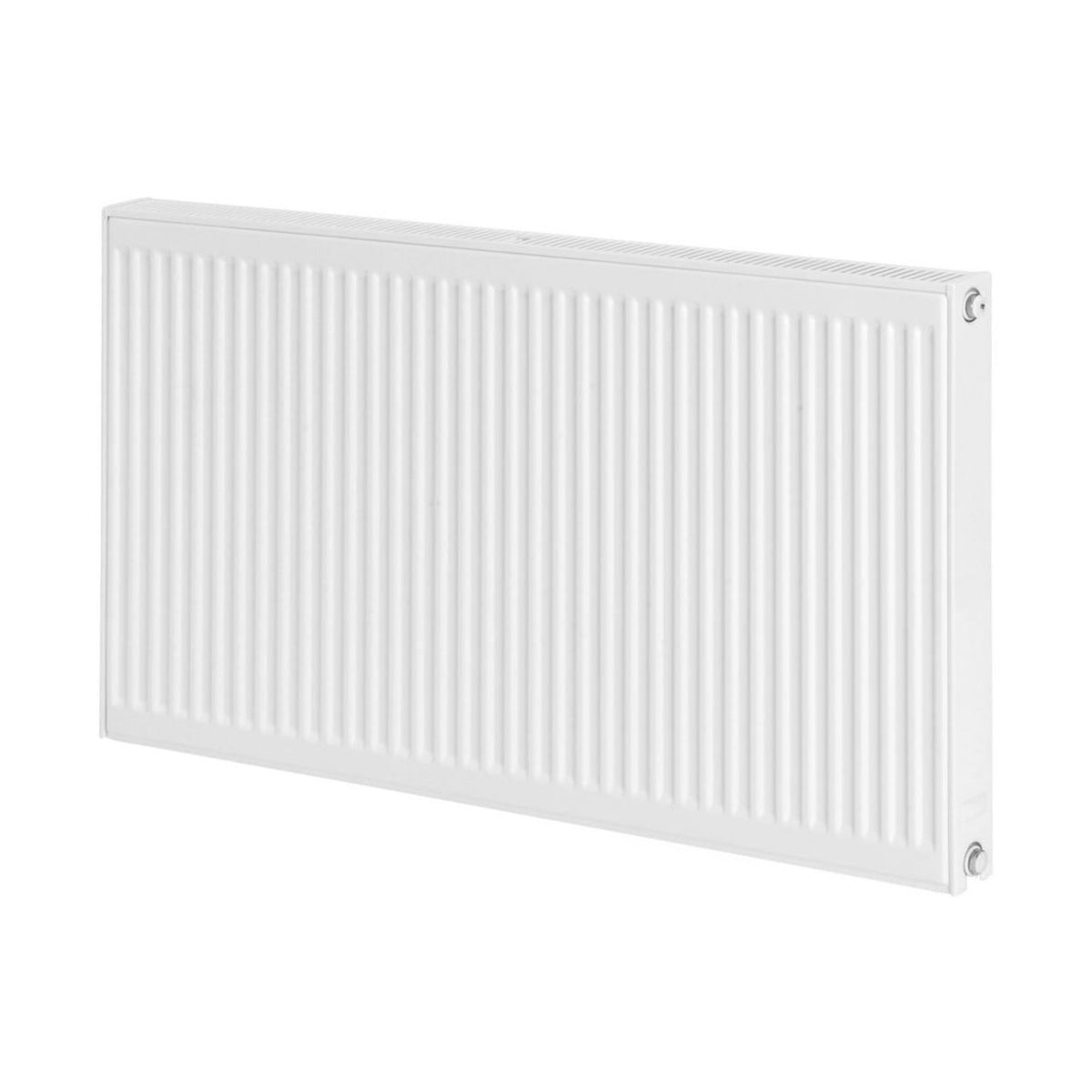

Heating radiator Purmo Compact C21 600/600 mm [5418484]

€143,50 EUR

Brand: Purmo
Product number: LVI- 5418484
Delivery time: approx. 1-5 business days.
Shipping: €9.90 or
Free pickup, no hidden costs

Compact is a traditional panel radiator for closed water-circulating central heating systems. The Compact panel radiator has four G 1/2" connections with internal thread, which allows for side connection from the right and left sides. A high-quality radiator, with a high-quality finish and the widest range on the market. Compact is designed for optimal heat radiation according to EN442-1 and all models are CE marked. Compact is delivered with installed side panels, top grille and child-proof fixing. The grilles and side panels are included in the delivery. The operating conditions/environment must be taken into account and the installation instructions must be followed during installation. Standard white RAL 9016 (other colours available at an additional cost). The warranty period is 10 years.

Product number

5418484
Supplier product number:

F062106006010H00
EAN code:

6418569066759
Material class

P5410A

Specifications

Length: 600
Height : 600mm
Depth: 70 mm
Heat transfer EN 442 20 °C - 75/65: 804
Water volume: 3.9
Color: white
Gloss level: glossy
Thread connection: internal thread
Thread size (inch): 1/2"
With integrated valve insert: no
Can be equipped with an electric heater: no
For damp areas: no
Material: steel
Maximum operating pressure: 10
With air screw: yes
With drain hole: yes
With blind plug: yes
With electric element: no
With single point connection: yes
With aeration connection: no
Includes mounting hardware: no
With end plate: yes
With wall bracket: yes
With top grid: yes
N-exponent: 1.321
Welded bracket holders: yes
RAL number: 9016
Standard color: yes
Type: 21
Heat transfer determined according to a recognized EN 442 laboratory: yes
Connection combination 11 (VL), bottom-left/bottom-left: no
Connection combination 18 (CD), bottom left/bottom right: no
Connection combination 32 (AB), left side top edge/left side bottom edge: yes
Connection combination 37 (AE), side top-left/side bottom-right: yes
Connection combination 41 (IC), top-left/bottom-left: no
Connection combination 45 (IG), top left/top right: no
Connection combination 48 (ID), top-left/bottom-right: no
Connection combination 54 (GI), top-right/top-left: no
Connection combination 58 (GD), top right/bottom right: no
Connection combination 62 (FB), right side top edge/left side bottom edge: yes
Connection combination 67 (FE), right side top edge/right side bottom edge: yes
Connection combination 81 (DC), bottom right/bottom left: no
Connection combination 88 (VR), bottom right/bottom right: no
Connection combination MO (ML/MR), bottom-center/bottom-center: no
Connection combination MB, top-center/top-center: no
Number of connections: 4
With exhaust connection: yes
Reversible: no
