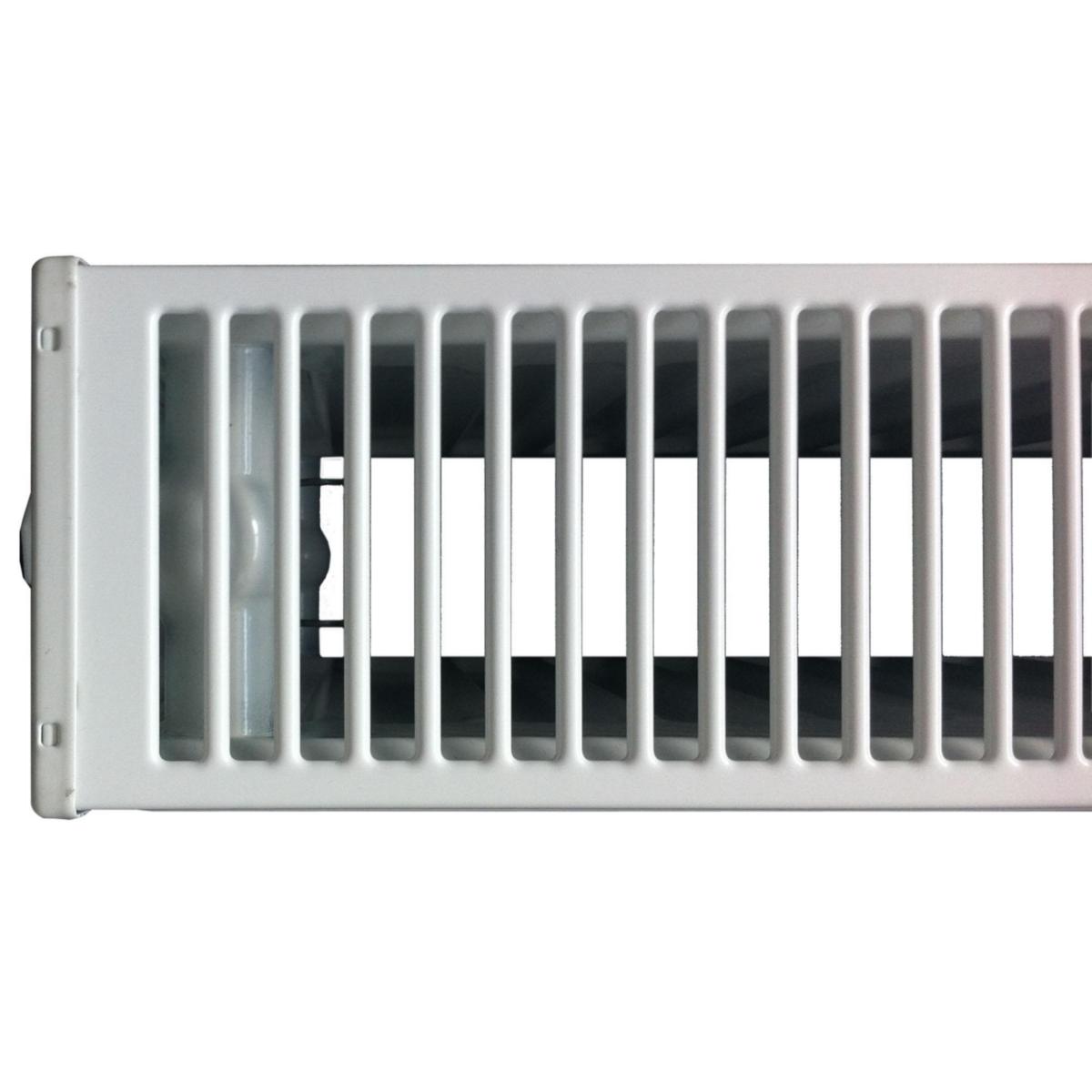

Heating radiator Purmo Hygiene H10-500-1400 [5418072]

€132,80 EUR

Brand: Purmo
Product number: LVI- 5418072
Delivery time: approx. 1-5 business days.
Shipping: €9.90 or
Free pickup, no hidden costs

Hygiene is a panel radiator with a hygiene rating for closed water central heating systems. Hygiene is supplied without convection fins, top grille and end plates, which makes it easy to clean. An external valve makes installation easier. The Hygiene hygienic radiator has four G 1/2" connections with internal thread, which allows side connection from the right and left sides. The radiator package does not include brackets, air vent screw and blanking plug. CE marked, outputs are in accordance with EN442-1. Standard white RAL 9016 (other colors available at an additional cost). The warranty period is 10 years.

Product number

5418072
Supplier product number:

F061005014000300
EAN code:

5907814713209
Material class

P54110

Specifications

Length: 1400
Height : 500mm
Depth: 60 mm
Heat transfer EN 442 20 °C - 75/65: 764
Water volume: 3.8
Color: white
Gloss level: glossy
Thread connection: internal thread
Thread size (inch): 1/2"
With integrated valve insert: no
Can be equipped with an electric heater: no
For damp areas: no
Material: steel
Maximum operating pressure: 10
With air screw: yes
With drain hole: yes
With blind plug: yes
With electric element: no
With single point connection: yes
With aeration connection: no
Includes mounting hardware: no
With end plate: no
With wall bracket: yes
On the top: no
N-exponent: 1.308
Welded bracket holders: yes
RAL number: 9016
Standard color: yes
Type: 10
Heat transfer determined according to a recognized EN 442 laboratory: yes
Connection combination 11 (VL), bottom-left/bottom-left: no
Connection combination 18 (CD), bottom left/bottom right: no
Connection combination 32 (AB), left side top edge/left side bottom edge: yes
Connection combination 37 (AE), side top-left/side bottom-right: yes
Connector combination 41 (IC), top-left/bottom-left: no
Connection combination 45 (IG), top left/top right: no
Connection combination 48 (ID), top-left/bottom-right: no
Connection combination 54 (GI), top-right/top-left: no
Connection combination 58 (GD), top right/bottom right: no
Connection combination 62 (FB), right side top edge/left side bottom edge: yes
Connection combination 67 (FE), right side top edge/right side bottom edge: yes
Connection combination 81 (DC), bottom right/bottom left: no
Connection combination 88 (VR), bottom right/bottom right: no
Connection combination MO (ML/MR), bottom-center/bottom-center: no
Connection combination MB, top-center/top-center: no
Number of connections: 4
With exhaust connection: yes
Reversible: no
