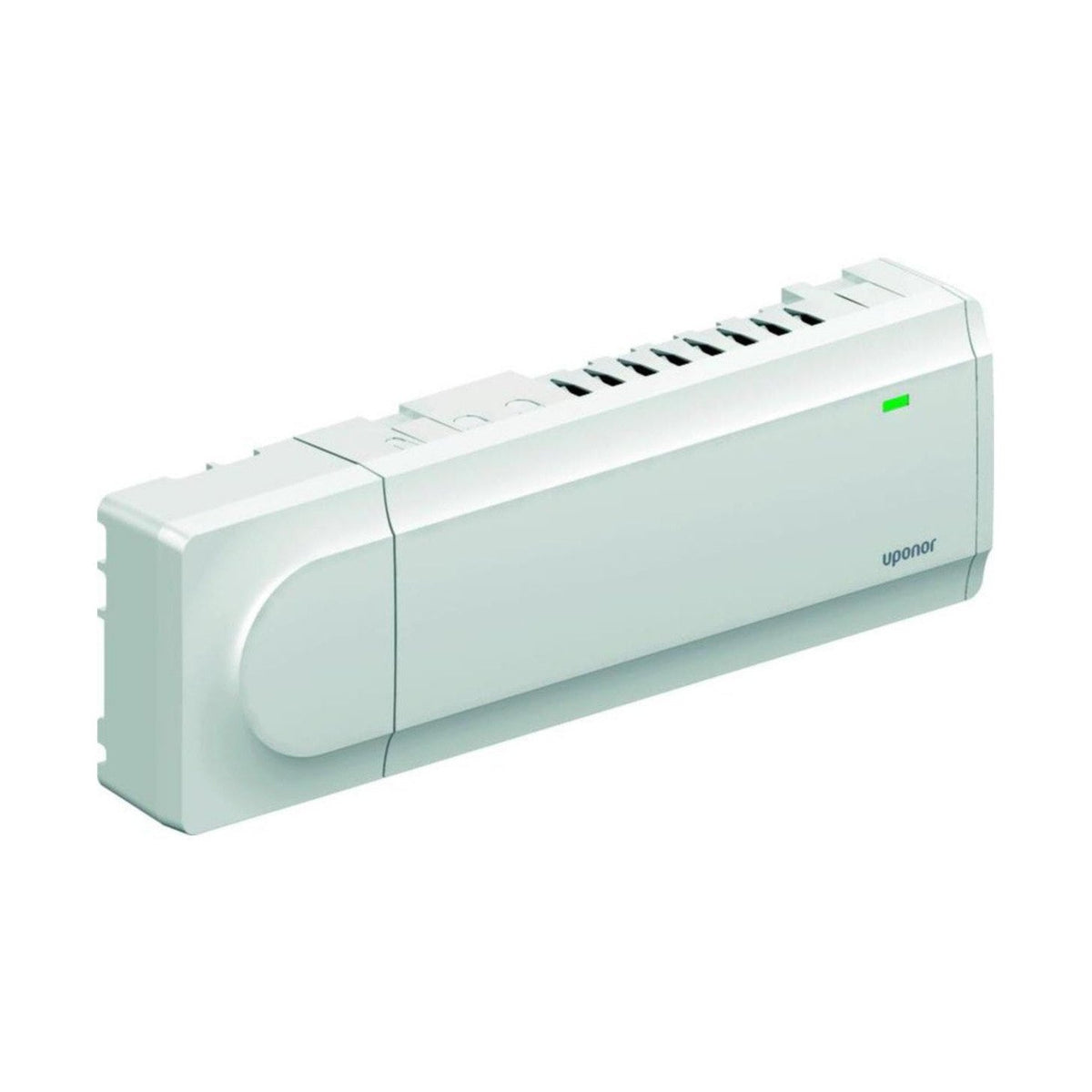

Uponor Smatrix Base Pulse X-245 Bus 6X central unit [2024563]

€235,90 EUR

  • Brand: Uponor
  • Product number: 2024563
  • Delivery time: approx. 1-5 business days.
  • Shipping €9.90 or
  • Free pickup, no hidden costs.
Uponor Smatrix Base Pulse X-245 Bus 6X control system for wired water-based underfloor heating/cooling. The central unit can be expanded to 12 outputs with the M-242 extension (1093134). Protection class IP20. The R-208 web module (lvi-no. 2024566) is required when the system is controlled via the Smatrix Pulse App or the Uponor cloud service. The control system can be connected to smart home applications (requires R-208 web module).
  • Brand: Uponor
  • Product series: Uponor Smatrix Wave Pulse
  • Product number: 2024563
  • Voltage: 24V
  • Protection class IP: 20
  • Color: White
  • Uponor product code: 1093017
  • HVAC number: 2024563
  • A wired central unit that sends and receives information using bidirectional bus technology and automatically balances the amount of water flowing in the pipe circuits.
  • For underfloor heating and cooling
  • Thermostats can be connected to the central unit in several different installation methods
  • Certificates: CE / EAC
  • RS485 BUS system
  • 4-wire BUS installation, Jamak 2x(2+1)x0.5
  • The central unit is connected to the mains using a plug
  • Max. voltage/actuator 24VAC / 0.2A (0.4A peak)
  • Remote access via Uponor Smatrix Pulse App (requires web module R-208)
  • Possible to connect to smart home applications (Amazon Alexa, Google Home, IFTTT) (requires web module R-208)
  • It is possible for external technical support/installer to remotely connect to the control system (user permission required, requires web module R-208)
  • Possibility to track usage history via Uponor Smatrix Pulse App (requires web module R-208)
  • Heating scheduling possible (requires web module R-208)
  • Remote adjustment of heating settings (requires web module R-208)
  • Supply water/heat source monitoring (requires web module R-208)
  • Adjustment range +5 °C ... +35 °C
  • Wired control system for underfloor heating and cooling
  • The central unit can be expanded to 12 outputs with the M-242 add-on.
  • Protection class IP20, color white
  • Possible to connect to smart home applications (Amazon Alexa, Google Home, IFTTT) (requires web module R-208)

Product number: 2024563

Supplier product number: 1093017

EAN code: 6414905228010

Material class P2021A
