FAULT POWER OUTLET 2S/16A/30mA/250V/IP21 UPJ VAL [3207005]

€119,90 EUR

Brand: Norwesco
Product number:3207005
Delivery time: approx. 1-5 business days.
Shipping €9.90 or
Free pickup, no hidden costs.

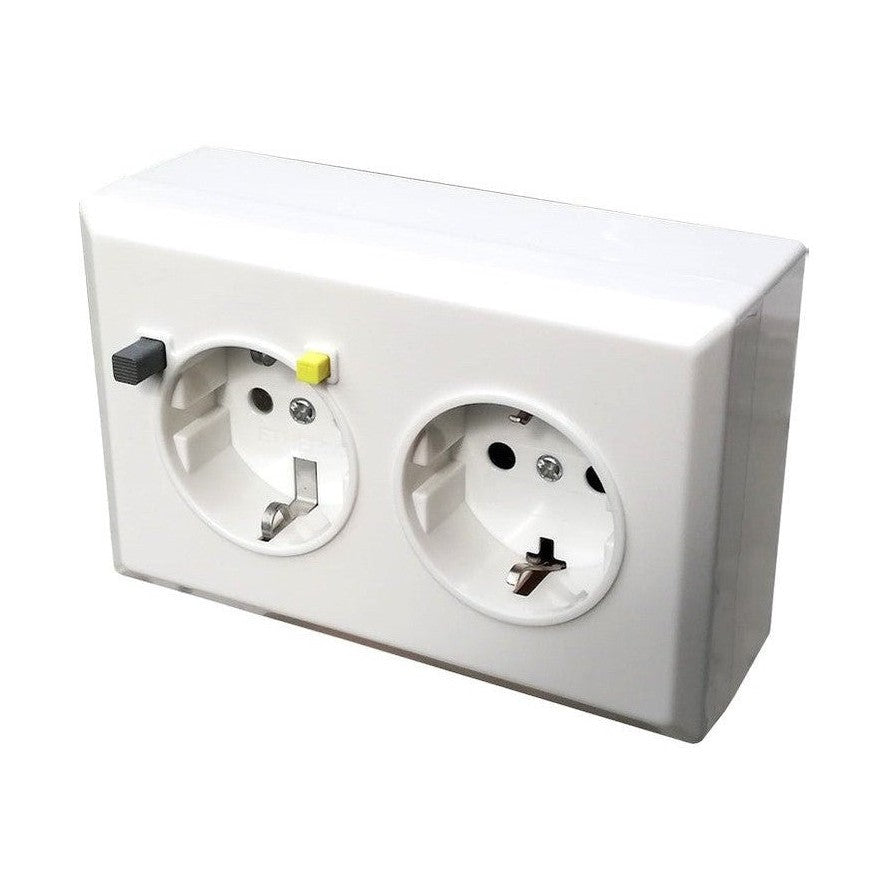

NRCD 22 is a combination of a 2-piece socket outlet 16A/230V and a 30mA type A residual current circuit breaker. The socket outlet is approved for daisy-chaining, meaning that socket outlets installed after the socket outlet are protected by this socket outlet. The residual current circuit breaker trips if it detects an earth leakage current or short-circuit current of more than 30mA. The socket outlet can be surface mounted using a surface mounting housing (S-32 070 07). The protection class is IP21.

Product number

3207005
Supplier product number:

697121
EAN code:

7394438971210
Material class

S3213A

Specifications

Number of units: 2
Number of sockets to connect: 0
Number of stages: 1
Labelling/expression: none
Color: white
With operation indicator light: no
Minimum depth (built-in device housing): 10 mm
Rotating center section: no
With indicator lamp: no
Device width: 125 mm
Device height: 78 mm
Device depth: 56 mm
RAL number (equivalent): 9016
Hinged lid: no
With searchlight: no
Lockable: no
Installation method: flush-mounted
Mounting method: screw mounting
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Rated current: 16 A
Nominal voltage: 230 V
Suitable for enclosure class (IP): IP21
Special power supply: no special power supply
Marking location: no
Overvoltage protection: no
Residual current protection: yes
Frequency: 50-60 Hz
With miniature fuse: no
Enhanced touch protection: yes
Rated residual current: 30 mA
Transparent: no
Surface material: glossy
Surface protection: other
With on/off switch: yes
Isolated installation: yes
Chaining possible: yes
Detachment/release mechanism: no
Number of active contacts (round): 2
Google Assistant compatible: no
Apple HomeKit compatible: no
IFTTT support: no
Amazon Alexa compatible: no
Switch color: black
Connection method: plug clamp / spring terminal
Metallic color: no
