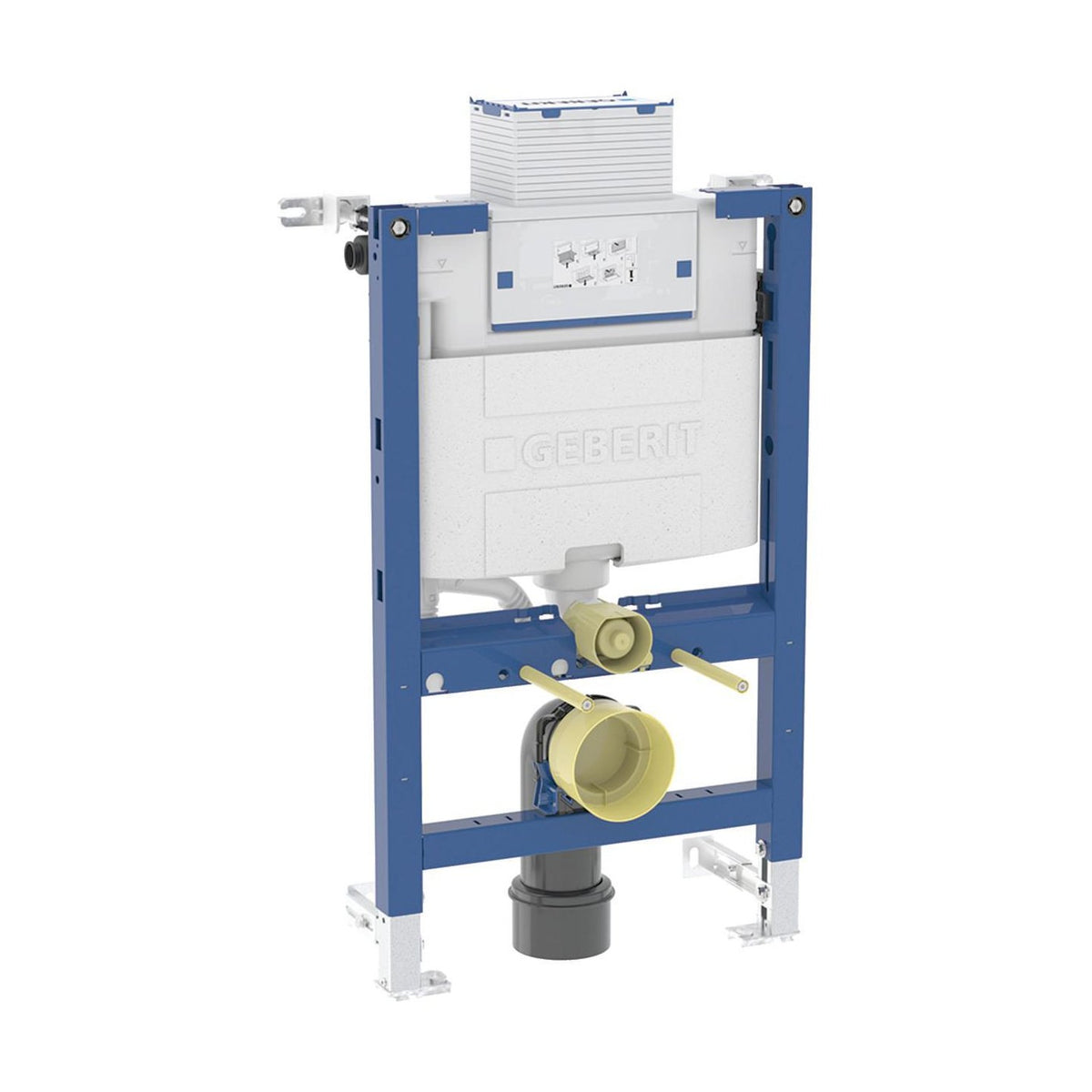

Wall-mounted toilet mounting bracket Geberit Duofix 820 mm, Omega, PE-X [5756969]

€394,90 EUR

Brand: Geberit
Product number: LVI- 5756969
Delivery time: 1-5 business days.
Shipping: €9.90
Free pickup, no hidden costs

More information: LINK

Geberit Duofix Omega is a low installation element for wall-mounted toilets with Omega cistern. This new model has a quieter filling valve and is also suitable for wall-mounted toilets with a larger reach of up to 70 cm. The delivery includes top and bottom wall brackets, water and drain connection sets, Q-lock (90 °) and threaded rods for seat attachment (mounting distance 18 or 23 cm). Omega flush plates and remote flush plates can be installed without tools. The flush plate can be installed on top of or in front of the cistern. The cistern is fully insulated against condensation. The product is compatible with Geberit AquaClean washdown toilets. The installation element is prepared for electrical connections.

Features:
• Model series 2025
• Statically self-supporting frame, powder-coated for corrosion protection
• Frame for wall-mounted toilets, installation dimensions according to EN 33 and reach up to 70 cm
• Frame with ø 9 mm drill holes for attachment to a wooden frame structure
• Foot plates can be rotated, suitable for installation in U-profiles UW 50 and UW 75
• The foot plates can be installed on the Geberit Duofix system rail without tools, without additional components
• Galvanized, corrosion-resistant footrests, anti-slip
• The connecting curve can be installed without tools in different depth positions, adjustment range 45 mm
• Geberit Omega concealed cistern 12 cm, fully insulated against condensation
• For use from above/front, suitable for double flushing
• Immediate post-rinse possible in factory setting
• Concealed flush tank prepared for PEX connector
• Installation and maintenance of the concealed cistern without tools
• Water connection on the left side
• The protective cover of the maintenance opening can be shortened, protecting against moisture and dirt
• Protective pipe for the water supply line and connection cable of Geberit AquaClean washdown toilets
• Mounting for electrical connection and Power & Connect Box

Specifications:
• Operating pressure: 0.1–10 bar
• Maximum water temperature: 25 °C
• Factory setting of flush volume: 6 l/3 l
• Small flush volume adjustment range: 2–4 l
• Large flush volume adjustment range: 4 l/4.5 l/6 l/7.5 l
• Flow rate at 3 bar pressure: 0.16 l/s
• Minimum flow pressure: 0.1 bar
• Design flow rate: 0.09 l/s

Delivery contents:
• PEX connector with threaded connection G 1/2" and connectors 15 x 2.5 mm and 16 x 2.2 mm, with adapter
• Maintenance cover
• 2 top wall brackets
• 2 bottom wall brackets
• Connection kit for toilet, ø 90 mm
• Connecting elbow 90° made of PE-HD material, ø 90 mm
• Conversion joint PE-HD material

Product number

5756969
Supplier product number:

111.007.00.3
EAN code:

4064746024191
Material class

P5775A

Specifications

Water connection: external thread
Width : 500mm
Depth: 140 mm
Spacer under the tank: no
Height : 820mm
Adjustable width: no
Adjustable rinse water volume: no
Adjustable toilet seat height: no
Adjustable depth: no
Adjustable height: no
Flushing tank quality class: PE
Suitable for shelf use: yes
Suitable for electric use: yes
Suitable for front use: no
Suitable for use with compressed air: yes
Flushing tank material: plastic
With shut-off valve: no
Includes toilet seat mounting materials: no
Includes element mounting materials: yes
Bracket suitable for floor installation: yes
With flushing pipe and drain connection: yes
Includes impact sound insulation kit: no
Bracket suitable for low wall mounting: yes
With drain arc: yes
Bracket suitable for high wall mounting: yes
Minimum shelf height: 820 mm
Water connection size: 1/2"
The frame is suitable for a toilet with a 60cm partition: no
Self-supporting structure: yes
Flushing method: double flush
Load capacity = 400 kg (EN 997): no
Anti-condensation insulation: no
Manually operated: yes
Number of tap connections: 1
Battery operated: no
Suitable for shower toilet: yes
Suitable for plasterboard: yes
Suitable for solid walls: no
Electrical connection: no
Toilet mounting center distance: 18 cm and 23 cm
Control panel: no
Suitable for sanitary wall systems: yes
Remotely programmable: no
Suitable for infrared use: no
Suitable for toilet units with smaller contact area: no
Suitable for radar use: yes
Suitable for throttling the flushing flow: yes
With building operation and maintenance system connection: no
Fan connection: no
With front cladding: no
With delayed filling process: no
Maintenance opening: yes
With flush angle: yes
Flushing pipe outer diameter: 45 mm
Outer pipe diameter drainage: 90 mm
