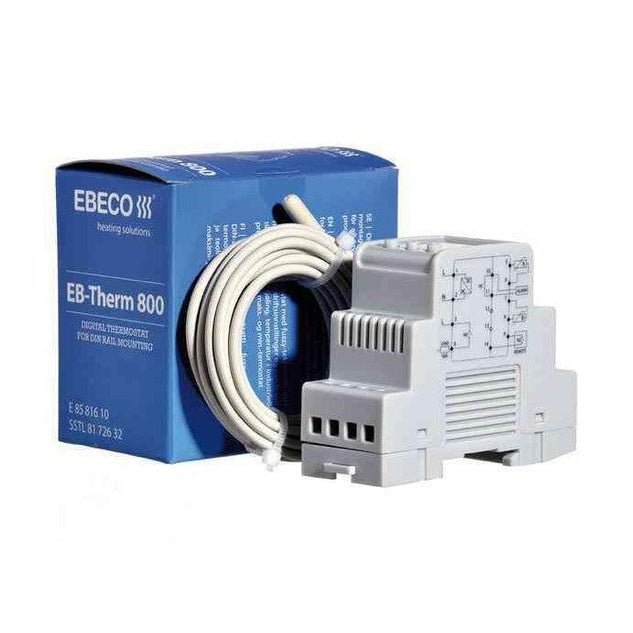

Combination thermostat Ebeco EB-THERM 800 4-function DIN [2615602]

EB-Therm 800 is a unique DIN-mounted thermostat with four alternative operating modes: heating, cooling, industrial and max/min. It is suitable for most applications - from domestic underfloor heating to industrial processes where temperatures are high. The package includes: Sensor cable 3m and quick guide.

Specifications:
Connection voltage 230 VAC ±10% ~ 50Hz, Breaking capacity 3680 W/16 A/230 VAC, Power consumption 2.5 W, Menu language Swedish, English, Norwegian, Finnish, Russian, German, Temperature range -15 °C - +170°C divided into two areas, Low temperature range -15 °C -+75 °C – Sensor type NTC, High temperature range +0 °C - +170°C – Sensor type PTC, Connection cable max 2.5 mm², Load Cos φ = 1
Switching difference Adjustable between ±0.3 - 10.3 °C, Protection rating IP20, Backup time 50 h, Sensor cable 3 m, Maximum allowed sensor cable extension 50 m, 2x1.5 mm², Display dimensions 24x19 mm, Thermostat dimensions 90x35x70 mm, Installation Standard DIN rail EN 50022-35, Alarm relay 2 A/120 VAC Normally closed, Ambient temperature -20 °C - +45 °C, EMC approval Withstands overvoltage 2500 VAC, Approval CE, S, Directive RoHS, WEEE
