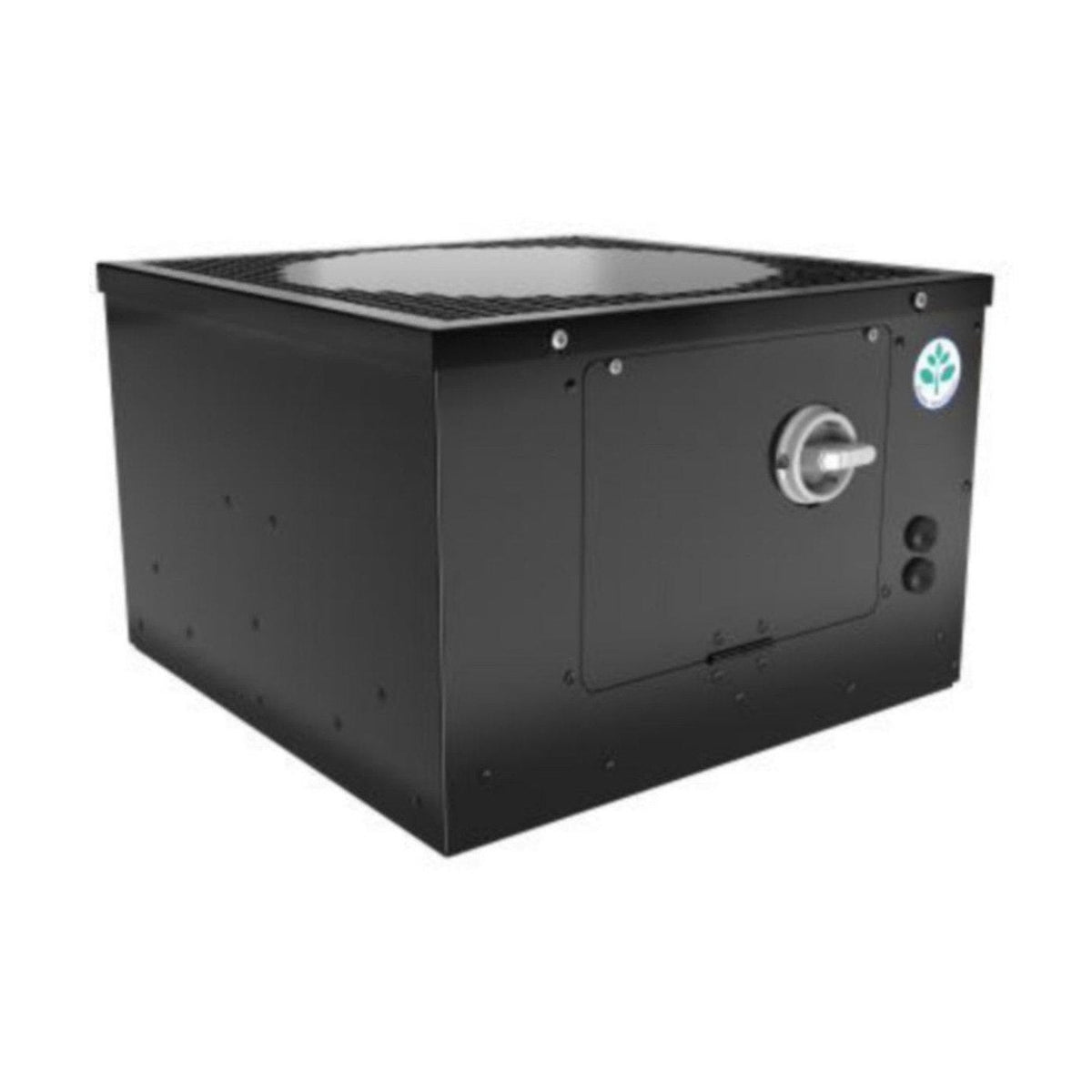

Ceiling fan Systemair EC-MOTOR TFC 500 S SILEO Black 0-10 V [7819045]

€2.425,00 EUR

Brand: Systemair
Product number: LVI- 7819045
Delivery time: approx. 1-5 business days.
Shipping €9.90 (to your door)
Free pickup, no hidden costs

More information:

More information: LINK

The TFC roof fan is intended for both residential and commercial properties. Energy-efficient EC motors enable demand-based adjustment. This roof fan has a simple and user-friendly tilting mechanism that allows easy maintenance. The TFC roof fan is available in red and black. A potentiometer is standard, allowing the fan speed to be set to the desired operating point. This is an easy solution when demand-based adjustment is not required. Adjustment can also be implemented with a 0-10V external signal.

Product number: 7819045

Supplier product number: 218858

EAN code: 6415878190458

Material class I78411

Specifications

Brand: Systemair
Rated current: 2.04
Maximum power input: 1.33
Rotation speed: 1382
Rated voltage: 400 V
Motor type: electronically commutated (EC)
Maximum air volume, 300 Pa: 7186
Maximum air volume, 500 Pa: 5430
Maximum air volume, 400 Pa: 6260
Maximum air volume, 100 Pa: 8745
Specific electrical power (SFP number), Qmax: 0.476
Maximum air volume, 50 Pa: 8985
Maximum air volume, 200 Pa: 7897
Inner dimensions of the base, rectangular: 944
Maximum air volume, 150 Pa: 8378
Maximum air volume, 250 Pa: 7542
Operating height: 476
Maximum air volume, 600 Pa: 4600
Maximum medium temperature (continuous): 60
Qmax sound pressure level at 4m height (outdoors): 49
Number of stages: 3
Integrated timer: no
Wireless remote control: no
Housing/cover material: steel
Electrical connection: connectors
Check valve: none
Single-speed motor: yes
Housing quality class: other
With heat protection: yes
Silencer: yes
Tiltable fan: standard
With pressure sensor: no
Axial model: no
Impeller material: plastic
Suitable for (extra) pressure sensor: yes
Housing surface treatment: coated
Supply air fan, ceiling model: no
External control via app: yes
Blowing direction: vertical
Maintenance switch: yes
With constant volume flow control: yes
Frequency: 50/60 Hz
Single-speed motor control: electronic
Control signal: 0-10 V
Impeller material quality: PP, flame retardant
Cover shape: rectangular
Compatible with wireless remote control: no
Supports Modbus protocol: yes
