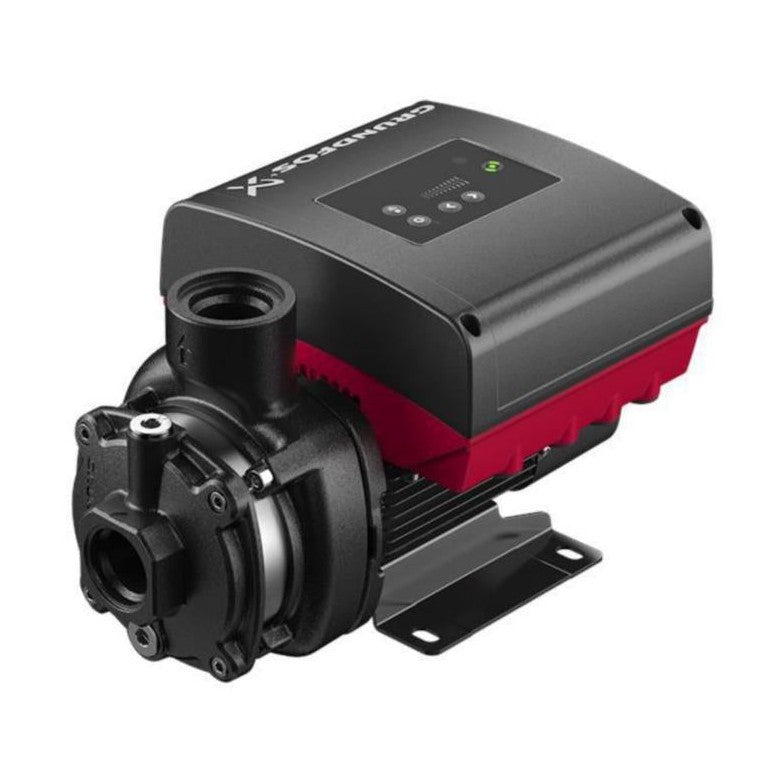

Pressure boosting pump Multi-stage Cme 15-1 [4925827]

€3.447,30 EUR

Brand: Grundfos
Product number: 4925827
Delivery time: approx. 20 business days.
Shipping cost: €9.90 or
Free pickup, no hidden costs.

The multi-stage CME pump is a compact and reliable workhorse, especially favored by equipment manufacturers, for various industrial configurations. The pump is also suitable for pressure boosting or cooling, for example. The pumps have 1- or 3-phase motors and the CME pumps have a frequency converter integrated into the motor. The direction of the CME model's control panel can be changed depending on the installation location.

Product benefits:
- Small size
- Easy to maintain
- Wide capacity range
- Quiet running sound
- Highly efficient hydraulics
- Electrophoretically coated cast iron parts
- The pump is equipped with an integrated frequency converter

Product number

4925827
Supplier product number:

98396533
EAN code:

5711494301348
Material class

P4760B

Specifications

Pump type: 15-1
Weight: 27.6 kg
Insulation class according to IEC: F
Motor with extended shaft: no
Motor speed control: built-in
Rated current: 4.03 A
Self-priming: no
Motor control type: stepless
Immersion length: 97.2 mm
Pump height: 388.3 mm
Protection class (IP): IP55
Frequency: 60Hz
Pump housing material: cast iron
Impeller material quality: stainless steel 304 (1.4301)
Impeller material: stainless steel
Inlet connection: cylindrical female thread BSPT-Rp (ISO 7-1 / EN 10226-1)
Outlet connection: cylindrical female thread BSPT-Rp (ISO 7-1 / EN 10226-1)
Nominal diameter of the outlet side: 2" (50)
Input standard: ISO 228-1
Output side standard: ISO 228-1
Number of stages: 3
Motor power (P2): 2.2 kW
Electrical connection: connectors
Explosion-proof: no
Interface PT100 / PT1000 / PTC: yes
Interface PWM (Pulse Width Modulation): no
Pulse counter interface: no
Interface signal 0-10 V / 2-10 V: yes
Interface signal 0-20 mA / 4-20 mA: yes
Communication: built-in and pre-installed
Joint material: cast iron
Joint material quality: cast iron EN-GJL-200 (GG 20)
Pump housing material quality: cast iron EN-GJL-200 (GG 20)
Maximum operating pressure: 10 bar
Maximum static height: 17.8 m
RS-232 interface: no
RS-485 interface: yes
With dry-running protection: no
Minimum Efficiency Index (MEI): 0.7
Model / Type: horizontal
Motor energy efficiency class: IE5
Volume flow (BEP): 17 m³/h
Standard engine: yes
Potential-free main switch: yes
Radio standard 5G: no
WLAN 802.11 standard: no
Supports BACnet IP protocol: yes
Supports BACnet MS/TP protocol: yes
Supports CAN/CANOpen protocol: no
Supports Ethernet/IP protocol: yes
Supports KNX protocol: no
Supports LIN Bus protocol: no
Supports LON/LONworks protocol: yes
Supports Modbus RTU protocol: yes
Supports Modbus TCP protocol: yes
Supports PROFINET IO protocol: no
Pressure at volumetric flow (BEP): 144.26 kPa
Inlet flange pressure class: PN 16
Outlet flange pressure class: PN 10
Radio standard 2G: no
Radio standard 3G: no
Radio standard 4G: no
Bluetooth standard: no
Supports PROFIBUS protocol: yes
